BC807-40WHE3-TP by: Micro Commercial Components

Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-323, 3 PIN

Part Details for BC807-40WHE3-TP by Micro Commercial Components

Results Overview of BC807-40WHE3-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

BC807-40WHE3-TP Information

BC807-40WHE3-TP by Micro Commercial Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for BC807-40WHE3-TP

Part # Distributor Description Stock Price Buy
DISTI # 353-BC807-40WHE3-TPTR-ND
DigiKey TRANS PNP 45V 0.5A SOT-323 Min Qty: 3000 Lead time: 16 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 3,000 $0.0467
  • 6,000 $0.0415
  • 9,000 $0.0389
  • 15,000 $0.0359
  • 21,000 $0.0342
  • 30,000 $0.0325
  • 75,000 $0.0288
  • 150,000 $0.0265
  • 300,000 $0.0246
$0.0246 / $0.0467 Buy Now
DISTI # 833-BC807-40WHE3-TP
Mouser Electronics Bipolar Transistors - BJT 0
  • 1 $0.2500
  • 10 $0.1770
  • 100 $0.1120
  • 1,000 $0.0500
  • 3,000 $0.0430
  • 9,000 $0.0330
  • 24,000 $0.0310
  • 45,000 $0.0290
  • 99,000 $0.0250
$0.0250 / $0.2500 Order Now

Part Details for BC807-40WHE3-TP

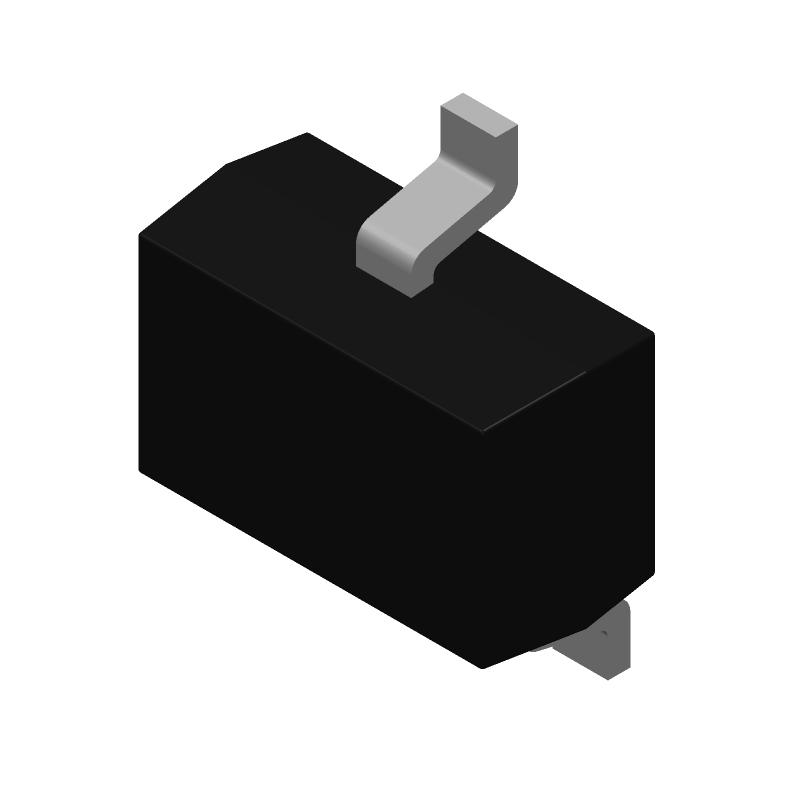

BC807-40WHE3-TP CAD Models

BC807-40WHE3-TP Part Data Attributes

BC807-40WHE3-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
BC807-40WHE3-TP Micro Commercial Components Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, SOT-323, 3 PIN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Package Description SOT-323, 3 PIN
Reach Compliance Code compliant
Samacsys Manufacturer MCC
Collector Current-Max (IC) 0.5 A
Collector-Base Capacitance-Max 15 pF
Collector-Emitter Voltage-Max 45 V
Configuration SINGLE
DC Current Gain-Min (hFE) 250
JESD-30 Code R-PDSO-G3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity/Channel Type PNP
Power Dissipation-Max (Abs) 0.2 W
Reference Standard AEC-Q101
Surface Mount YES
Terminal Form GULL WING
Terminal Position DUAL
Transistor Application AMPLIFIER
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 100 MHz
VCEsat-Max 0.7 V
