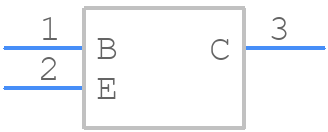

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC807-16HE3-TP by Micro Commercial Components
Results Overview of BC807-16HE3-TP by Micro Commercial Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
BC807-16HE3-TP Information
BC807-16HE3-TP by Micro Commercial Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC807-16HE3-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-BC807-16HE3-TPCT-ND
|
DigiKey | TRANS PNP 45V 0.5A SOT-23 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
6529 In Stock |
|
$0.0229 / $0.2100 | Buy Now |
|
DISTI #
833-BC807-16HE3-TP
|
Mouser Electronics | Bipolar Transistors - BJT PNP SILICON PURPOSE TRANSISTOR RoHS: Compliant | 5275 |
|
$0.0260 / $0.2100 | Buy Now |
Part Details for BC807-16HE3-TP
BC807-16HE3-TP CAD Models
BC807-16HE3-TP Part Data Attributes
|
|
BC807-16HE3-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BC807-16HE3-TP
Micro Commercial Components
Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MCC | |
| Collector Current-Max (IC) | 0.5 A | |
| Collector-Emitter Voltage-Max | 45 V | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-609 Code | e3 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | MATTE TIN | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
