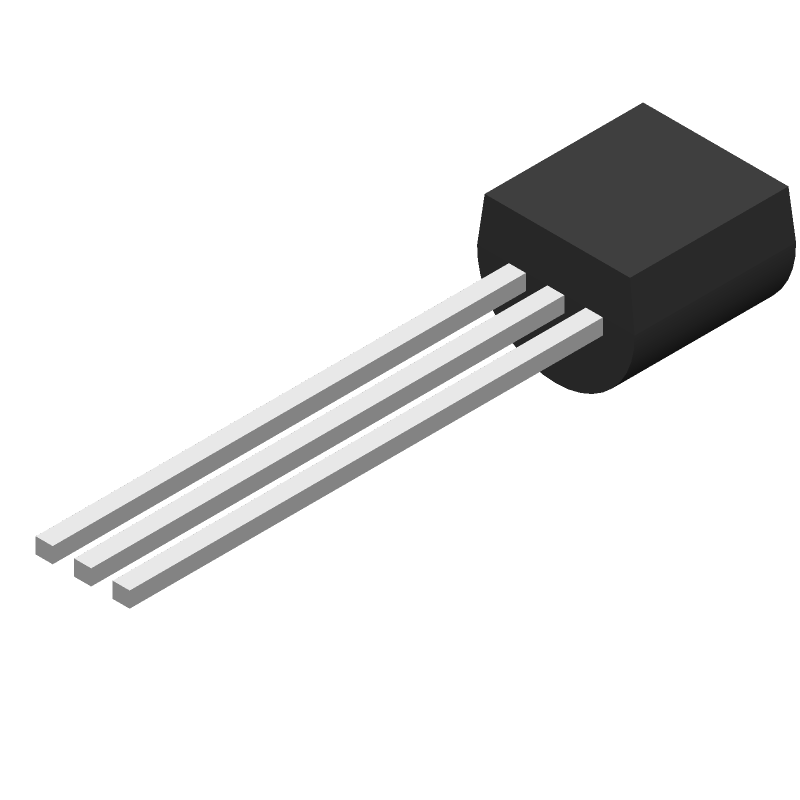

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC547BG by onsemi
Results Overview of BC547BG by onsemi
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
BC547BG Information
BC547BG by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC547BG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | Small Signal Bipolar Transistor, 0.1A, 45V, NPN, TO-92 RoHS: Compliant Status: Obsolete Min Qty: 1 | 13742 |
|
$0.0737 / $0.1189 | Buy Now |
|
|
ComSIT USA | Transistor ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
BC547BG
|
Avnet Silica | Trans GP BJT NPN 45V 01A 3Pin TO92 Bulk (Alt: BC547BG) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BC547BG
|
EBV Elektronik | Trans GP BJT NPN 45V 01A 3Pin TO92 Bulk (Alt: BC547BG) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Transistors | 9888 |
|
RFQ |
Part Details for BC547BG
BC547BG CAD Models
BC547BG Part Data Attributes
|
|
BC547BG
onsemi
Buy Now
Datasheet
|
Compare Parts:
BC547BG
onsemi
NPN Bipolar Transistor, TO-92 (TO-226) 5.33mm Body Height, 5000-BLKBX
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-92 (TO-226) 5.33mm Body Height | |
| Package Description | TO-92, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 29-11 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.21.00.75 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Base Capacitance-Max | 4.5 pF | |
| Collector-Emitter Voltage-Max | 45 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 200 | |
| JEDEC-95 Code | TO-226AA | |
| JESD-30 Code | O-PBCY-T3 | |
| JESD-609 Code | e1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation Ambient-Max | 0.625 W | |
| Power Dissipation-Max (Abs) | 1.5 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 300 MHz | |
| VCEsat-Max | 0.6 V |
BC547BG Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BC547BG is -55°C to 150°C.
-
Yes, the BC547BG is suitable for high-frequency applications up to 100 MHz due to its low transition frequency (fT) of 150 MHz.
-
The maximum collector-emitter voltage (Vceo) for the BC547BG is 45 V.
-
Yes, the BC547BG can be used in switching applications due to its low saturation voltage (Vce(sat)) of 0.2 V and high current gain (hFE) of 100-400.
-
Yes, the BC547BG is RoHS (Restriction of Hazardous Substances) compliant, making it suitable for use in environmentally friendly designs.
