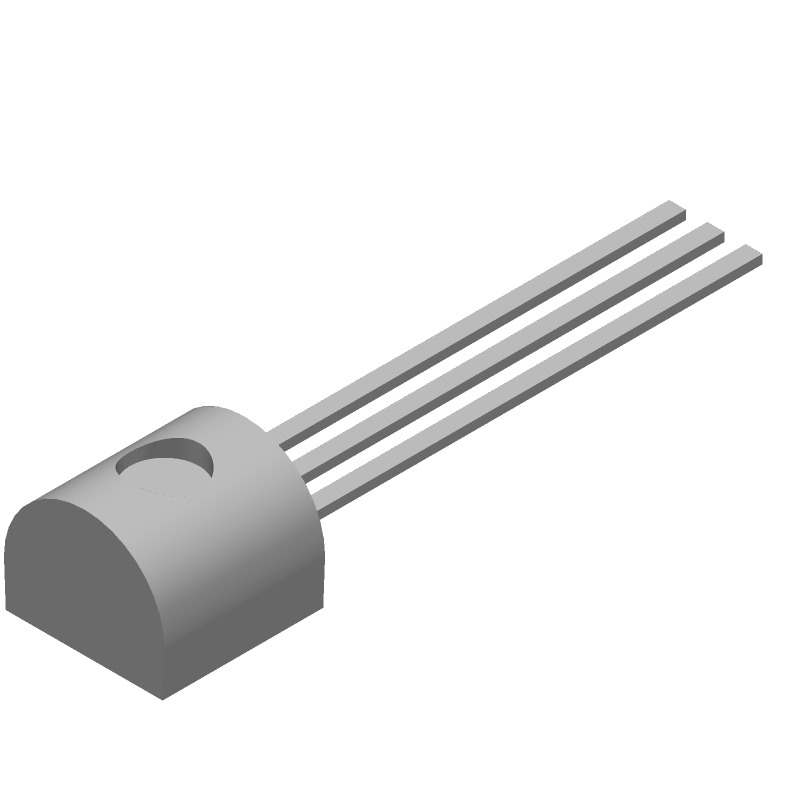

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC547BBU by onsemi
Results Overview of BC547BBU by onsemi
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
BC547BBU Information
BC547BBU by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC547BBU
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31Y0477
|
Newark | Transistor, Bipol, Npn, 45V, To-92-3, Transistor Polarity:Npn, Collector Emitter Voltage Max:45V, Continuous Collector Current:100Ma, Power Dissipation:500Mw, Transistor Mounting:Through Hole, No. Of Pins:3Pins, Qualification:- Rohs Compliant: Yes |Onsemi BC547BBU RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk | 10459 |
|
$0.0540 / $0.2080 | Buy Now |
|
DISTI #
BC547BBU-ND
|
DigiKey | TRANS NPN 45V 0.1A TO-92-3 Min Qty: 1 Lead time: 10 Weeks Container: Bulk |
14919 In Stock |
|
$0.0379 / $0.2700 | Buy Now |
|
DISTI #
BC547BBU
|
Avnet Americas | Trans GP BJT NPN 45V 0.1A 3-Pin TO-92 Bulk - Bulk (Alt: BC547BBU) RoHS: Compliant Min Qty: 20000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days Container: Bulk | 200000 Factory Stock |
|
$0.0324 / $0.0345 | Buy Now |
|
DISTI #
512-BC547BBU
|
Mouser Electronics | Bipolar Transistors - BJT NPN 45V 100mA HFE/450 RoHS: Compliant | 12112 |
|
$0.0360 / $0.2600 | Buy Now |
|
DISTI #
E02:0323_00847555
|
Arrow Electronics | Trans GP BJT NPN 45V 0.1A 500mW 3-Pin TO-92 Bag RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2318 | Europe - 27925 |
|
$0.0365 / $0.2500 | Buy Now |
|
DISTI #
V79:2366_28617928
|
Arrow Electronics | Trans GP BJT NPN 45V 0.1A 500mW 3-Pin TO-92 Bag RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2135 | Americas - 15216 |
|
$0.0303 / $0.1404 | Buy Now |
|
DISTI #
P40:2555_13634294
|
Arrow Electronics | Trans GP BJT NPN 45V 0.1A 500mW 3-Pin TO-92 Bag RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 98 Weeks | Europe - 13 |
|
$0.0251 / $0.0389 | Buy Now |
|
|
Onlinecomponents.com | NPN Epitaxial Silicon Transistor RoHS: Compliant |
20250 In Stock |
|
$0.0344 / $0.0694 | Buy Now |
|
DISTI #
87650301
|
Verical | Trans GP BJT NPN 45V 0.1A 500mW 3-Pin TO-92 Bag RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 | Americas - 200000 |
|
$0.0370 | Buy Now |
|
DISTI #
68395590
|
Verical | Trans GP BJT NPN 45V 0.1A 500mW 3-Pin TO-92 Bag RoHS: Compliant Min Qty: 175 Package Multiple: 1 Date Code: 2318 | Americas - 27825 |
|
$0.0367 / $0.0939 | Buy Now |
Part Details for BC547BBU
BC547BBU CAD Models
BC547BBU Part Data Attributes
|
|
BC547BBU
onsemi
Buy Now
Datasheet
|
Compare Parts:
BC547BBU
onsemi
NPN Epitaxial Silicon Transistor, TO-92-3, 10000-BLKBG
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-92-3 | |
| Manufacturer Package Code | 135AN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 45 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 200 | |
| JEDEC-95 Code | TO-92 | |
| JESD-30 Code | O-PBCY-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.625 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | BOTTOM | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 300 MHz |
Alternate Parts for BC547BBU
This table gives cross-reference parts and alternative options found for BC547BBU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BC547BBU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BC547B | Vishay Semiconductors | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-226AA, PLASTIC, TO-92, 3 PIN | BC547BBU vs BC547B |
| BC547BTF | onsemi | $0.0897 | NPN Epitaxial Silicon Transistor, TO-92-3 LF, 2000-REEL | BC547BBU vs BC547BTF |
| BC547BZL1 | Rochester Electronics LLC | Check for Price | 100mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, CASE 29-11, TO-226, 3 PIN | BC547BBU vs BC547BZL1 |
| BC547CZL1 | Rochester Electronics LLC | Check for Price | 100mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, CASE 29-11, TO-226, 3 PIN | BC547BBU vs BC547CZL1 |
| BC547BTA | Rochester Electronics LLC | Check for Price | 100mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, LEAD FREE, TO-92, 3 PIN | BC547BBU vs BC547BTA |
| BC547B/L34Z | Fairchild Semiconductor Corporation | Check for Price | 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92 | BC547BBU vs BC547B/L34Z |
| BC547 | Vishay Intertechnologies | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, NPN, | BC547BBU vs BC547 |
| BC547BTA | onsemi | $0.0631 | Transistor NPN Silicon Plastic, TO-92-3 LF, 2000-FNFLD | BC547BBU vs BC547BTA |
| BC547 | Rochester Electronics LLC | Check for Price | 100mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, LEAD FREE, TO-92, 3 PIN | BC547BBU vs BC547 |
| BC547ARL1 | Rochester Electronics LLC | Check for Price | 100mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, CASE 29-11, TO-226, 3 PIN | BC547BBU vs BC547ARL1 |
BC547BBU Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BC547BBU is -55°C to 150°C.
-
Yes, the BC547BBU is suitable for high-frequency applications up to 100 MHz due to its low transition frequency (ft) of 150 MHz.
-
The maximum collector-emitter voltage (Vceo) for the BC547BBU is 45V.
-
Yes, the BC547BBU can be used in switching applications due to its low saturation voltage (Vce(sat)) of 0.2V and high current gain (hFE) of 100-400.
-
Yes, the BC547BBU is a low-noise transistor with a noise figure of 2.5 dB, making it suitable for low-noise amplifier applications.
