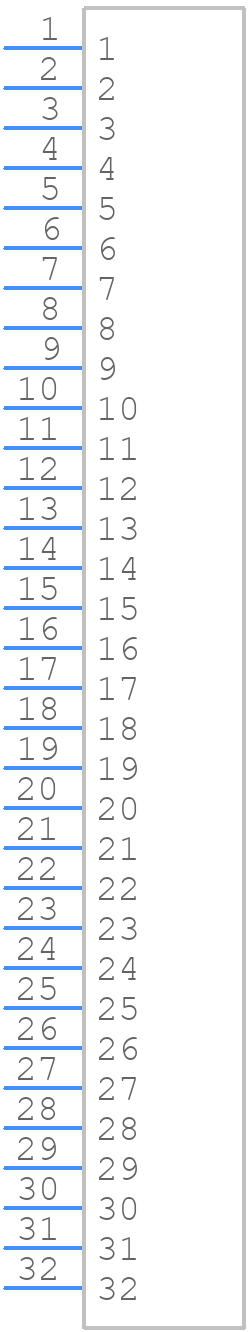

Part Symbol
-
Footprint
-

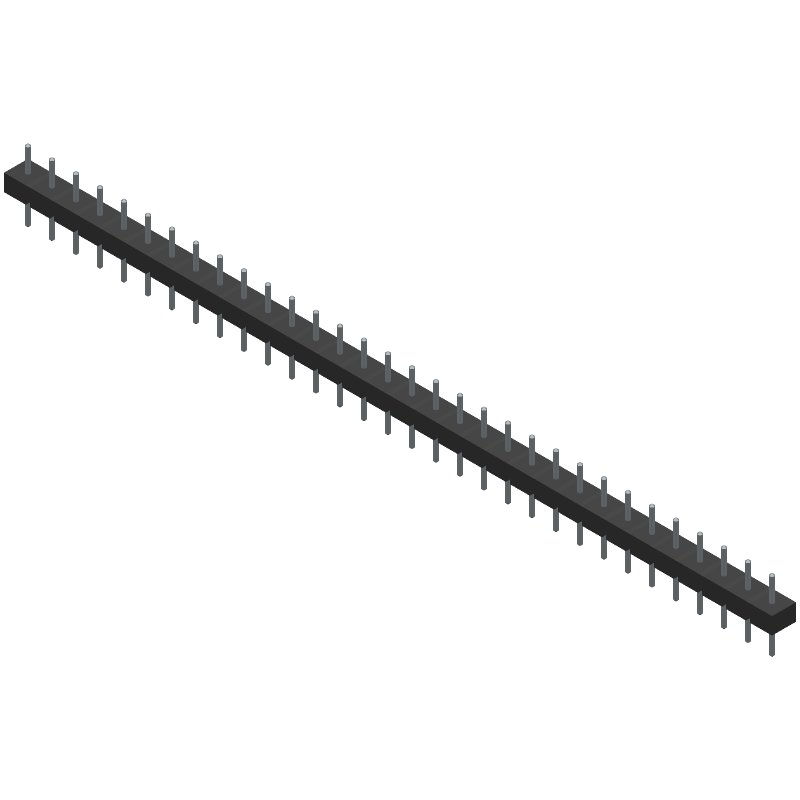

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BBL-132-T-E by Samtec Inc
Results Overview of BBL-132-T-E by Samtec Inc
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
BBL-132-T-E Information
BBL-132-T-E by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for BBL-132-T-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
11P3133
|
Newark | Header, 2.54Mm, Low Profile, 32 Position, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:1Rows, No. Of Contacts:32Contacts, Contact Termination Type:Through Hole, Product Range:Bbl Series, Gender:Header Rohs Compliant: Yes |Samtec BBL-132-T-E RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 27 |
|
$3.1000 / $5.5900 | Buy Now |
|
DISTI #
SAM1002-32-ND
|
DigiKey | CONN HEADER VERT 32POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Tube |
560 In Stock |
|
$2.6762 / $4.3100 | Buy Now |
|
DISTI #
BBL-132-T-E
|
Avnet Americas | Conn Unshrouded Header HDR 32 POS 2.54mm Solder ST Thru-Hole Tube - Rail/Tube (Alt: BBL-132-T-E) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tube | 538 Factory Stock |
|
$3.7819 / $4.2565 | Buy Now |
|
DISTI #
200-BBL132TE
|
Mouser Electronics | Headers & Wire Housings .100" Low Profile Single Row RoHS: Compliant | 360 |
|
$2.5300 / $4.8800 | Buy Now |
|
DISTI #
V36:1790_07889458
|
Arrow Electronics | Conn Unshrouded Header HDR 32 POS 2.54mm Solder ST Top Entry Thru-Hole Tube Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks Date Code: 2515 | Americas - 229 |
|
$3.6950 / $4.8800 | Buy Now |
|
|
Onlinecomponents.com | Board-To-Board Connector - Low Profile - 2.54 mm - 32 Contacts - Header - Solder - 1 Row. RoHS: Compliant |
2377 In Stock |
|
$2.5850 / $4.4280 | Buy Now |
|
DISTI #
71202824
|
Verical | Conn Unshrouded Header HDR 32 POS 2.54mm Solder ST Top Entry Thru-Hole Tube Min Qty: 15 Package Multiple: 5 Date Code: 1110 | Americas - 2180 |
|
$3.1882 / $5.2118 | Buy Now |
|
DISTI #
85032002
|
Verical | Conn Unshrouded Header HDR 32 POS 2.54mm Solder ST Top Entry Thru-Hole Tube Min Qty: 2 Package Multiple: 1 | Americas - 538 |
|
$4.8800 | Buy Now |
|
DISTI #
88138735
|
Verical | Conn Unshrouded Header HDR 32 POS 2.54mm Solder ST Top Entry Thru-Hole Tube Min Qty: 2 Package Multiple: 1 Date Code: 2515 | Americas - 229 |
|
$3.6950 | Buy Now |
|
DISTI #
71202347
|
Verical | Conn Unshrouded Header HDR 32 POS 2.54mm Solder ST Top Entry Thru-Hole Tube Min Qty: 17 Package Multiple: 1 | Americas - 194 |
|
$3.8800 | Buy Now |
Part Details for BBL-132-T-E
BBL-132-T-E CAD Models
BBL-132-T-E Part Data Attributes
|
|
BBL-132-T-E
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
BBL-132-T-E
Samtec Inc
Board Connector, 32 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 1 Week | |
| Samacsys Manufacturer | SAMTEC | |
| Body Breadth | 0.1 inch | |
| Body Depth | 0.07 inch | |
| Body Length | 3.2 inch | |
| Connector Type | BOARD STACKING CONNECTOR | |
| Contact Design | MACHINED | |
| Contact Finish Mating | TIN OVER NICKEL (50) | |
| Contact Finish Termination | Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | RND PIN-SKT | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.1 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Reference Standard | UL | |
| Terminal Length | 0.125 inch | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 32 |
Alternate Parts for BBL-132-T-E
This table gives cross-reference parts and alternative options found for BBL-132-T-E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BBL-132-T-E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BBL-132-G-E | Samtec Inc | $9.9894 | Board Connector, 32 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug, ROHS COMPLIANT | BBL-132-T-E vs BBL-132-G-E |
BBL-132-T-E Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
-
Yes, the BBL-132-T-E is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or transportation applications.
-
Yes, the BBL-132-T-E is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly processes.
-
The BBL-132-T-E operates within a temperature range of -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
-
While the BBL-132-T-E is not fully sealed, it is designed to withstand some exposure to moisture. However, it's recommended to use additional sealing or protective measures in extremely humid or wet environments.
