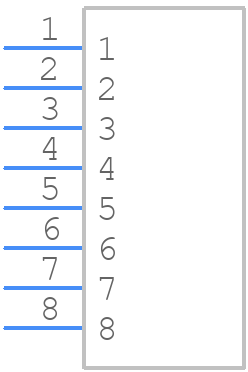

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BBL-108-G-F by Samtec Inc
Results Overview of BBL-108-G-F by Samtec Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
BBL-108-G-F Information
BBL-108-G-F by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LM2917M-8 | Texas Instruments | Frequency to Voltage Converter 8-SOIC -40 to 85 | |
| LM2917N-8/NOPB | Texas Instruments | Frequency to Voltage Converter 8-PDIP -40 to 85 | |
| LM2917M-8/NOPB | Texas Instruments | Frequency to Voltage Converter 8-SOIC -40 to 85 |
Price & Stock for BBL-108-G-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
11P3037
|
Newark | Board-Board Connector Header, 8Way, 1Row, Pitch Spacing:2.54Mm, No. Of Rows:1Rows, No. Of Contacts:8Contacts, Contact Termination Type:Through Hole, Product Range:Bbl Series, Contact Material:Phosphor Bronze, Gender:Header Rohs Compliant: Yes |Samtec BBL-108-G-F RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.9900 / $4.3100 | Buy Now |
|
DISTI #
3937-BBL-108-G-F-ND
|
DigiKey | CONN HEADER VERT 8POS 2.54MM Min Qty: 1 Lead time: 2 Weeks Container: Bulk MARKETPLACE PRODUCT |
989 In Stock |
|
$24.2200 | Buy Now |
|
DISTI #
SAM1001-08-ND
|
DigiKey | CONN HEADER VERT 8POS 2.54MM Min Qty: 1 Lead time: 2 Weeks Container: Bulk | Temporarily Out of Stock |
|
$3.1546 / $4.6000 | Buy Now |
|
DISTI #
BBL-108-G-F
|
Avnet Americas | Pin Header, 2.54 mm, 1 Rows, 8 Contacts, Through Hole, BBL Series - Rail/Tube (Alt: BBL-108-G-F) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tube | 1144 Factory Stock |
|
$2.9568 / $4.2238 | Buy Now |
|
DISTI #
200-BBL108GF
|
Mouser Electronics | Headers & Wire Housings .100" Low Profile Single Row RoHS: Compliant | 31 |
|
$2.3000 / $4.4400 | Buy Now |
|
|
Onlinecomponents.com | .100" Low Profile Single Row, Screw Machine Terminal Strip RoHS: Compliant | 0 |
|
$1.5700 / $4.1900 | Buy Now |
|
DISTI #
85031998
|
Verical | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole Tube Min Qty: 3 Package Multiple: 1 | Americas - 1144 |
|
$1.9300 / $4.4400 | Buy Now |
|
|
Quest Components | 8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | 5 |
|
$3.5200 / $5.2800 | Buy Now |
|
DISTI #
5cd8d37dcd7c1c4c381f6830
|
Samtec | .100" Low Profile Single Row, Screw Machine Terminal Strip RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 1144 |
|
$1.1200 / $4.4400 | Buy Now |
|
|
Powell Electronics | .100 Low Prof Single Row Min Qty: 1 | 755 |
|
$2.1300 / $4.4400 | Buy Now |
Part Details for BBL-108-G-F
BBL-108-G-F CAD Models
BBL-108-G-F Part Data Attributes
|
|
BBL-108-G-F
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
BBL-108-G-F
Samtec Inc
Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 1 Week | |
| Samacsys Manufacturer | SAMTEC | |
| Body Breadth | 0.1 inch | |
| Body Depth | 0.085 inch | |
| Body Length | 0.8 inch | |
| Connector Type | BOARD STACKING CONNECTOR | |
| Contact Design | MACHINED | |
| Contact Finish Mating | GOLD (20) OVER NICKEL (50) | |
| Contact Finish Termination | Gold (Au) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | RND PIN-SKT | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.1 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Plating Thickness | 20u inch | |
| Reference Standard | UL | |
| Terminal Length | 0.125 inch | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 8 |
BBL-108-G-F Frequently Asked Questions (FAQ)
-
The recommended torque is 1.5-2.5 in-lbs (0.17-0.28 Nm) for the screws on the BBL-108-G-F connector, as specified in the Samtec application notes.
-
Yes, the BBL-108-G-F connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
-
The operating temperature range for the BBL-108-G-F connector is -55°C to +125°C, as specified in the datasheet. However, it's essential to consider the temperature rating of the specific application and ensure the connector meets those requirements.
-
The BBL-108-G-F connector has a moisture-resistant design, but it's not fully waterproof. Samtec recommends applying a conformal coating or potting compound to protect the connector in humid or wet environments.
-
The mating cycle life of the BBL-108-G-F connector is 500 cycles minimum, as specified in the datasheet. However, this can vary depending on the application, usage, and environmental conditions.
