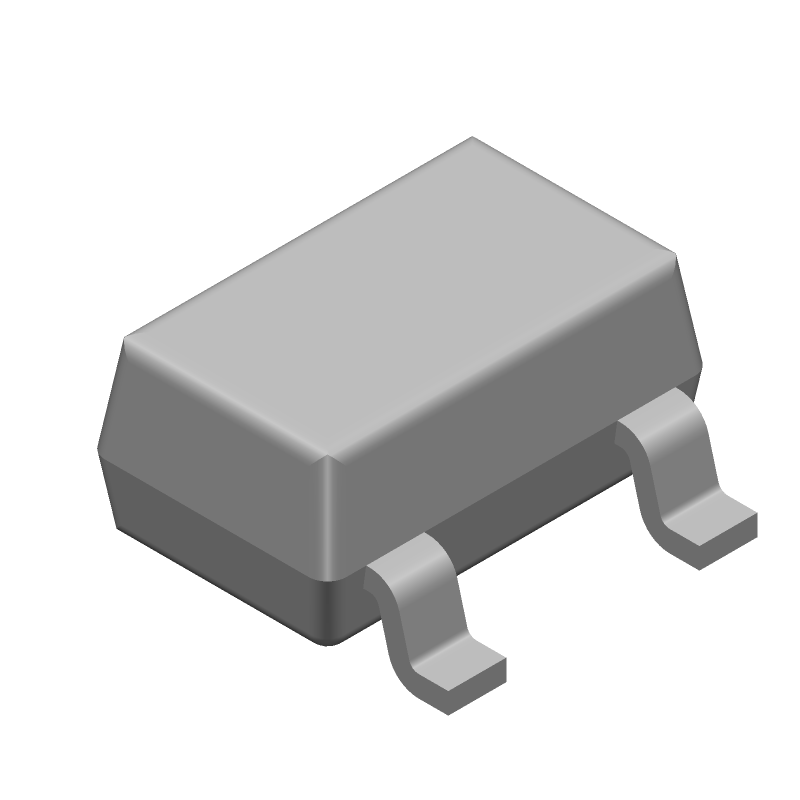

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAW56W-AU_R1_000A1 by PanJit Semiconductor
Results Overview of BAW56W-AU_R1_000A1 by PanJit Semiconductor
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
BAW56W-AU_R1_000A1 Information
BAW56W-AU_R1_000A1 by PanJit Semiconductor is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAW56W-AU_R1_000A1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
241-BAW56W-AUR1000A1
|
Mouser Electronics | Small Signal Switching Diodes 100V,Small Signal Switching Diodes,SOT-323,4A RoHS: Compliant | 4678 |
|
$0.0140 / $0.1000 | Buy Now |
|
|
NAC | 100V,Small Signal Switching Diodes,SOT-323,4A RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Container: Reel | 0 |
|
$0.0100 / $0.0120 | Buy Now |
|
DISTI #
BAW56W-AU_R1_000A1
|
Avnet Silica | JCTR7HF3KSOT323SWISOTUSM02TACAUSM02QI05PJ (Alt: BAW56W-AU_R1_000A1) RoHS: Compliant Min Qty: 30000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for BAW56W-AU_R1_000A1
BAW56W-AU_R1_000A1 CAD Models
BAW56W-AU_R1_000A1 Part Data Attributes
|
|
BAW56W-AU_R1_000A1
PanJit Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BAW56W-AU_R1_000A1
PanJit Semiconductor
Rectifier Diode, 2 Element, 0.15A, 100V V(RRM), Silicon,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANJIT INTERNATIONAL INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | PANJIT | |
| Application | GENERAL PURPOSE | |
| Configuration | COMMON ANODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| JESD-30 Code | R-PDSO-G3 | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.15 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Power Dissipation-Max | 0.2 W | |
| Reference Standard | AEC-Q101; TS 16949 | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
BAW56W-AU_R1_000A1 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the BAW56W-AU_R1_000A1 is -55°C to 150°C.
-
To ensure reliability, follow the recommended derating curves for voltage and current, and consider using a heat sink or thermal management system to keep the junction temperature below 125°C.
-
The typical switching time for the BAW56W-AU_R1_000A1 is around 10-20 ns, but this can vary depending on the specific application and circuit design.
-
Yes, the BAW56W-AU_R1_000A1 is suitable for high-frequency applications up to several hundred MHz, but be aware of the device's parasitic capacitance and inductance, which can affect performance at high frequencies.
-
Follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and ensure that the device is properly grounded during handling and assembly.
