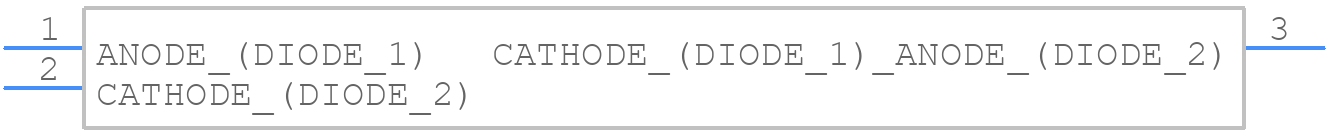

Part Symbol
-
Footprint
-

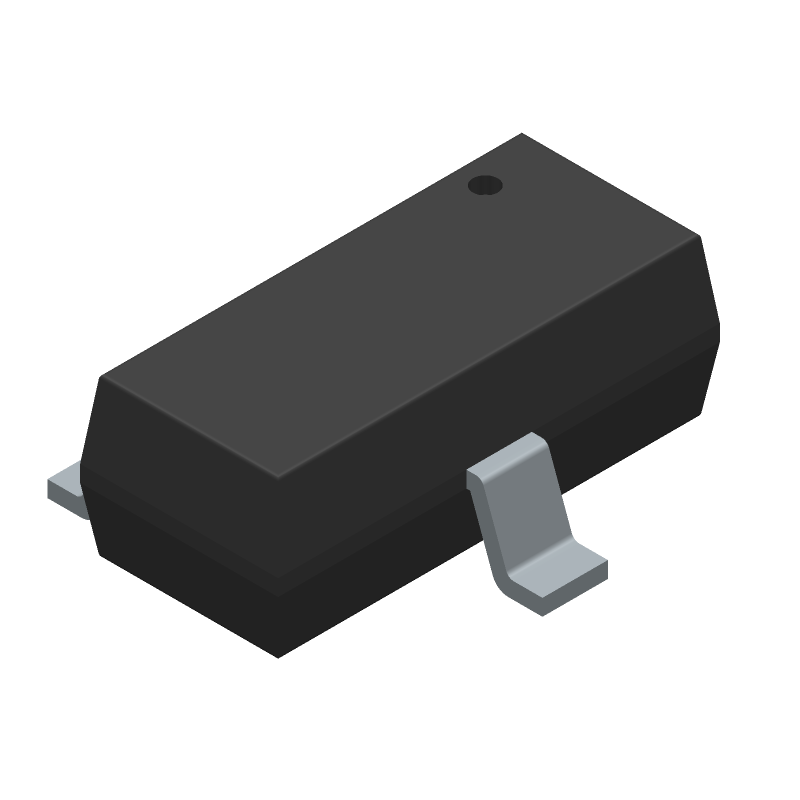

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAV99 by NXP Semiconductors
Results Overview of BAV99 by NXP Semiconductors
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
BAV99 Information
BAV99 by NXP Semiconductors is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAV99
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 310587 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 112 | 13870 |
|
$0.0045 / $0.0450 | Buy Now |
|
|
Bristol Electronics | 11424 |
|
RFQ | ||
|
|
Bristol Electronics | 2132 |
|
RFQ | ||
|
|
Bristol Electronics | 411 |
|
RFQ | ||
|
|
Quest Components | 2 ELEMENT, SILICON, SIGNAL DIODE, TO-236AB | 11096 |
|
$0.0060 / $0.0600 | Buy Now |
|
|
Quest Components | 2 ELEMENT, SILICON, SIGNAL DIODE, TO-236AB (Alt For: BAV99LT1) | 501 |
|
$0.0260 / $0.0390 | Buy Now |
|
|
Quest Components | 2 ELEMENT, SILICON, SIGNAL DIODE, TO-236AB | 501 |
|
$0.0260 / $0.0390 | Buy Now |
|
|
ComSIT USA | SURFACE MOUNT SWITCHING DIODE Rectifier Diode, 1 Phase, 2 Element, 0.15A, 100V V(RRM), Silicon ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 420000 |
|
RFQ |
Part Details for BAV99
BAV99 CAD Models
BAV99 Part Data Attributes
|
|
BAV99
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
BAV99
NXP Semiconductors
0.215A, 100V, 2 ELEMENT, SILICON, SIGNAL DIODE, TO-236AB, PLASTIC PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SOT-23 | |
| Package Description | PLASTIC PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | NXP | |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 4 A | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 0.215 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.25 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 0.5 µA | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Reverse Test Voltage | 80 V | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
