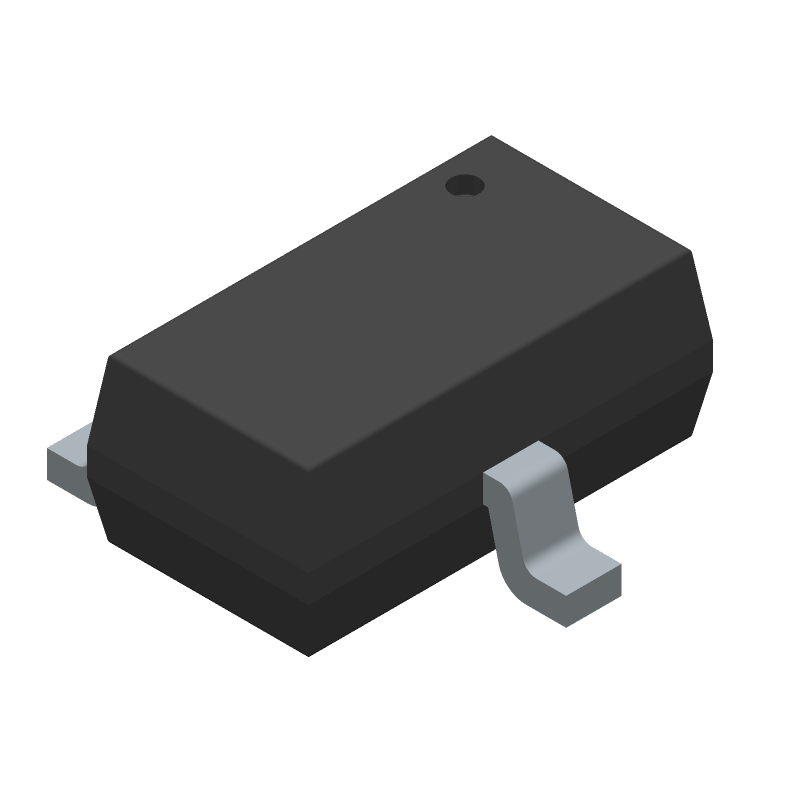

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAV70 by Rectron Semiconductor
Results Overview of BAV70 by Rectron Semiconductor
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BAV70 Information
BAV70 by Rectron Semiconductor is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAV70
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
583-BAV70
|
Mouser Electronics | Small Signal Switching Diodes SOT23,215mA,75V,Dual,Switching,CC RoHS: Compliant | 5538 |
|
$0.0230 / $0.1300 | Buy Now |
|
|
Onlinecomponents.com | Diode Small Signal Switching 0.215A 3-Pin SOT-23 RoHS: Compliant |
6000 In Stock |
|
$0.0152 / $0.0248 | Buy Now |
|
DISTI #
62150676
|
Verical | Diode Small Signal Switching 0.215A 3-Pin SOT-23 RoHS: Compliant Min Qty: 6000 Package Multiple: 6000 Date Code: 2211 | Americas - 6000 |
|
$0.0260 / $0.0293 | Buy Now |
|
|
Master Electronics | Diode Small Signal Switching 0.215A 3-Pin SOT-23 RoHS: Compliant |
6000 In Stock |
|
$0.0152 / $0.0248 | Buy Now |
Part Details for BAV70
BAV70 CAD Models
BAV70 Part Data Attributes
|
|
BAV70
Rectron Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BAV70
Rectron Semiconductor
Rectifier Diode, 2 Element, 0.215A, 75V V(RRM), Silicon, PLASTIC PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RECTRON LTD | |
| Package Description | SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | Rectron | |
| Application | FAST RECOVERY | |
| Breakdown Voltage-Min | 100 V | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 2 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.215 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.225 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 0.5 µA | |
| Reverse Recovery Time-Max | 0.004 µs | |
| Reverse Test Voltage | 70 V | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
Alternate Parts for BAV70
This table gives cross-reference parts and alternative options found for BAV70. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAV70, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BAV70-G | Sangdest Microelectronics (Nanjing) Co Ltd | Check for Price | Rectifier Diode, 1 Element, 0.2A, 50V V(RRM), Silicon, PLASTIC PACKAGE-3 | BAV70 vs BAV70-G |
| BAV70 | Fairchild Semiconductor Corporation | Check for Price | Rectifier Diode, 2 Element, 0.2A, 70V V(RRM), Silicon, SOT-23, 3 PIN | BAV70 vs BAV70 |
| BAV70T-13 | Diodes Incorporated | Check for Price | Rectifier Diode, 2 Element, 0.155A, 85V V(RRM), Silicon, PLASTIC, SOT-523, 3 PIN | BAV70 vs BAV70T-13 |
| BAV70 | Weitronic Enterprise Co Ltd | Check for Price | Rectifier Diode | BAV70 vs BAV70 |
| BAV70-T1 | Sensitron Semiconductors | Check for Price | Rectifier Diode, 2 Element, 0.3A, 75V V(RRM), Silicon, PLASTIC PACKAGE-3 | BAV70 vs BAV70-T1 |
| BAV70/E8 | Vishay Semiconductors | Check for Price | Rectifier Diode, 2 Element, 0.25A, 70V V(RRM), Silicon, TO-236AB | BAV70 vs BAV70/E8 |
| BAV70 | Bkc Semiconductors Inc | Check for Price | Rectifier Diode, 2 Element, 0.25A, 70V V(RRM), Silicon, | BAV70 vs BAV70 |
| BAV70/T4 | Nexperia | Check for Price | Rectifier Diode | BAV70 vs BAV70/T4 |
| BAV70T | Infineon Technologies AG | Check for Price | Rectifier Diode, 2 Element, 0.2A, 85V V(RRM), Silicon, ROHS COMPLIANT, SC-75, 3 PIN | BAV70 vs BAV70T |
BAV70 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the BAV70 is -65°C to 150°C.
-
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid overheating the component.
-
The maximum allowable voltage for the BAV70 is 70V, as indicated in the part number. Exceeding this voltage may damage the component.
-
Yes, the BAV70 is suitable for use in switching power supply applications due to its fast switching speed and low forward voltage drop.
-
To prevent electrostatic discharge (ESD) damage, handle the BAV70 with an anti-static wrist strap or mat, and store it in an anti-static bag or container.
