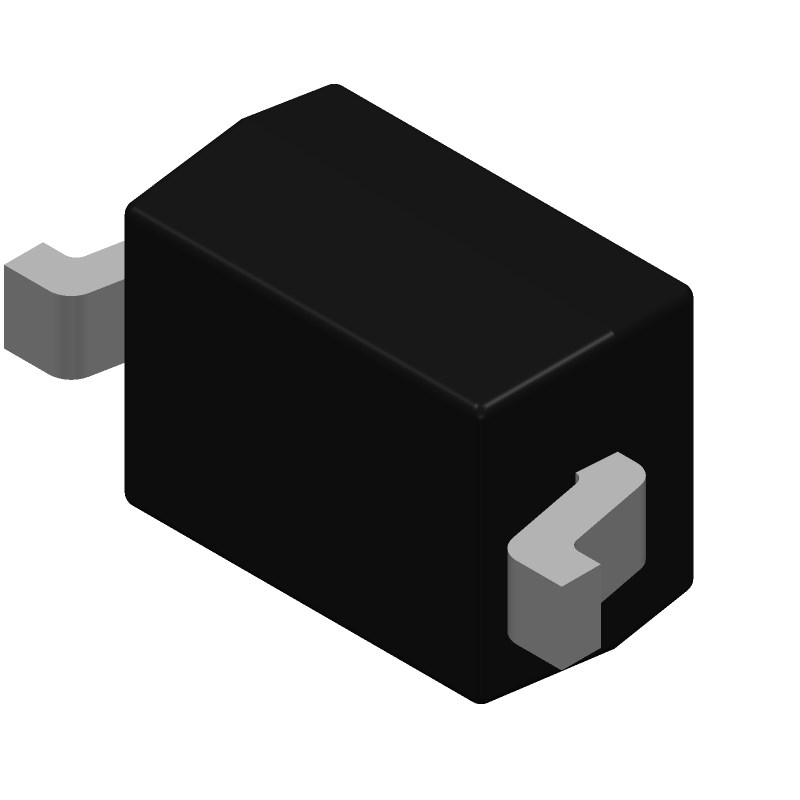

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAV20WS-TP by Micro Commercial Components
Results Overview of BAV20WS-TP by Micro Commercial Components
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Electronic Manufacturing
BAV20WS-TP Information
BAV20WS-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAV20WS-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
21AM9377
|
Newark | Small Signal Diode, 200V, 0.2A, Sod-323 Rohs Compliant: Yes |Micro Commercial Components BAV20WS-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1740 |
|
$0.0440 / $0.1800 | Buy Now |
|
DISTI #
BAV20WSTPMSCT-ND
|
DigiKey | DIODE STANDARD 150V 200MA SOD323 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
20665 In Stock |
|
$0.0203 / $0.1700 | Buy Now |
|
DISTI #
833-BAV20WS-TP
|
Mouser Electronics | Small Signal Switching Diodes 250mA 150V RoHS: Compliant | 9107 |
|
$0.0210 / $0.1700 | Buy Now |
|
DISTI #
E54:1762_08671319
|
Arrow Electronics | Diode Small Signal Switching 200V 0.4A 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2503 | Europe - 96000 |
|
$0.0178 / $0.0206 | Buy Now |
|
|
Future Electronics | BAS20WS Series 250 mW 200 V 50 ns Surface Mount Switching Diode - SOD-323 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Container: Reel | 135000Reel |
|
$0.0194 / $0.0211 | Buy Now |
|
DISTI #
65669918
|
Verical | Diode Small Signal Switching 200V 0.4A 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 | Americas - 378000 |
|
$0.0125 | Buy Now |
|
DISTI #
87637735
|
Verical | Diode Small Signal Switching 200V 0.4A 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2503 | Americas - 96000 |
|
$0.0178 / $0.0206 | Buy Now |
|
DISTI #
88094134
|
Verical | Diode Small Signal Switching 200V 0.4A 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2439 | Americas - 87000 |
|
$0.0282 / $0.0332 | Buy Now |
|
|
Bristol Electronics | 1974 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 45 | 926 |
|
$0.0338 / $0.1125 | Buy Now |
Part Details for BAV20WS-TP
BAV20WS-TP CAD Models
BAV20WS-TP Part Data Attributes
|
|
BAV20WS-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BAV20WS-TP
Micro Commercial Components
Rectifier Diode, 1 Element, 0.2A, 200V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | MCC | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 9 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.25 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 200 V | |
| Reverse Current-Max | 0.1 µA | |
| Reverse Recovery Time-Max | 0.05 µs | |
| Reverse Test Voltage | 150 V | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for BAV20WS-TP
This table gives cross-reference parts and alternative options found for BAV20WS-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAV20WS-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BAV20WS-7-F | Diodes Incorporated | $0.0720 | Rectifier Diode, 1 Element, 0.2A, 200V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2 | BAV20WS-TP vs BAV20WS-7-F |
| BAV20WS | Formosa Microsemi Co Ltd | Check for Price | Rectifier Diode, 1 Element, 0.2A, 200V V(RRM), Silicon, | BAV20WS-TP vs BAV20WS |
| BAV20WS | General Instrument Corp | Check for Price | Rectifier Diode, 1 Element, 0.2A, 200V V(RRM), Silicon, | BAV20WS-TP vs BAV20WS |
| BAV20WS-13 | Diodes Incorporated | Check for Price | Rectifier Diode, 1 Element, 0.2A, 200V V(RRM), Silicon, PLASTIC PACKAGE-2 | BAV20WS-TP vs BAV20WS-13 |
| BAV20WS-7 | Diodes Incorporated | Check for Price | Rectifier Diode, 1 Element, 0.2A, 200V V(RRM), Silicon, PLASTIC PACKAGE-2 | BAV20WS-TP vs BAV20WS-7 |
| BAV20WS-T3 | Won-Top Electronics Co Ltd | Check for Price | Rectifier Diode, 1 Element, 0.2A, 150V V(RRM), | BAV20WS-TP vs BAV20WS-T3 |
| BAV20WS-G3-08 | Vishay Intertechnologies | Check for Price | Rectifier Diode, 1 Element, 0.2A, 200V V(RRM), Silicon, GREEN PACKAGE-2 | BAV20WS-TP vs BAV20WS-G3-08 |
BAV20WS-TP Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the BAV20WS-TP is between 240°C to 260°C for a maximum of 5 seconds.
-
Yes, the BAV20WS-TP is a high-speed switching diode with a switching time of 4 ns, making it suitable for high-frequency applications up to 1 GHz.
-
The maximum allowable voltage for the BAV20WS-TP is 200 V, but it's recommended to operate it within 150 V for reliable performance.
-
The BAV20WS-TP is rated for operation up to 150°C, but it's recommended to derate the voltage and current ratings for temperatures above 125°C.
-
Yes, the BAV20WS-TP meets the AEC-Q101 qualification standard for automotive applications, making it suitable for use in automotive systems.
