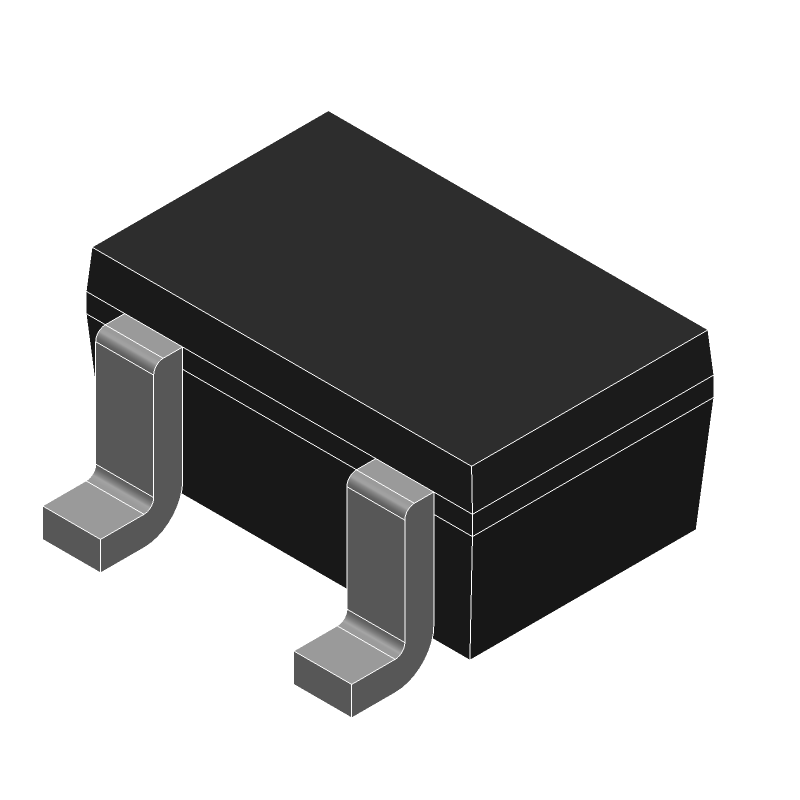

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAV199FMFHT106 by ROHM Semiconductor
Results Overview of BAV199FMFHT106 by ROHM Semiconductor
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BAV199FMFHT106 Information
BAV199FMFHT106 by ROHM Semiconductor is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAV199FMFHT106
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AM3937
|
Newark | Small Signal Sw Diode, 100V, Sot-232 Rohs Compliant: Yes |Rohm BAV199FMFHT106 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$0.0670 / $0.3830 | Buy Now |
|
DISTI #
846-BAV199FMFHT106CT-ND
|
DigiKey | LOW-LEAKAGE, 100V, 215MA, SWITCH Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2885 In Stock |
|
$0.0715 / $0.4800 | Buy Now |
|
DISTI #
755-BAV199FMFHT106
|
Mouser Electronics | Small Signal Switching Diodes Low-leakage, 100V, 215mA, Switching Diode for Automotive RoHS: Compliant | 2994 |
|
$0.0710 / $0.4600 | Buy Now |
|
DISTI #
87730358
|
Verical | Diode Switching 100V 0.5A 3-Pin UMD T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 601 Package Multiple: 1 Date Code: 2335 | Americas - 3000 |
|
$0.0912 / $0.1300 | Buy Now |
|
DISTI #
87666783
|
Verical | Diode Switching 100V 0.5A 3-Pin UMD T/R Automotive AEC-Q101 RoHS: Compliant Min Qty: 770 Package Multiple: 1 Date Code: 2301 | Americas - 3000 |
|
$0.0922 / $0.0982 | Buy Now |
|
|
Quest Components | 2400 |
|
$0.1650 / $0.5500 | Buy Now | |
|
DISTI #
BAV199FMFHT106
|
TTI | Small Signal Switching Diodes Low-leakage, 100V, 215mA, Switching Diode for Automotive RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.0700 / $0.0800 | Buy Now |
Part Details for BAV199FMFHT106
BAV199FMFHT106 CAD Models
BAV199FMFHT106 Part Data Attributes
|
|
BAV199FMFHT106
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BAV199FMFHT106
ROHM Semiconductor
Rectifier Diode, 1 Phase, 2 Element, 0.5A, 100V V(RRM), Silicon, SC-70, SOT-323, 3 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | SC-70, SOT-323, 3 PIN | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | HIGH RELIABILITY | |
| Application | GENERAL PURPOSE | |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JESD-30 Code | R-PDSO-G3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 4 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 0.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.25 W | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 0.01 µA | |
| Reverse Recovery Time-Max | 3 µs | |
| Reverse Test Voltage | 75 V | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
