BAT54WS Information
BAT54WS by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAT54WS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Min Qty: 45 | 155 |
|
$0.0563 / $0.1125 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE,SCHOTTKY,30V V(RRM),SOD-323 | 124 |
|
$0.0750 / $0.1500 | Buy Now |
Part Details for BAT54WS

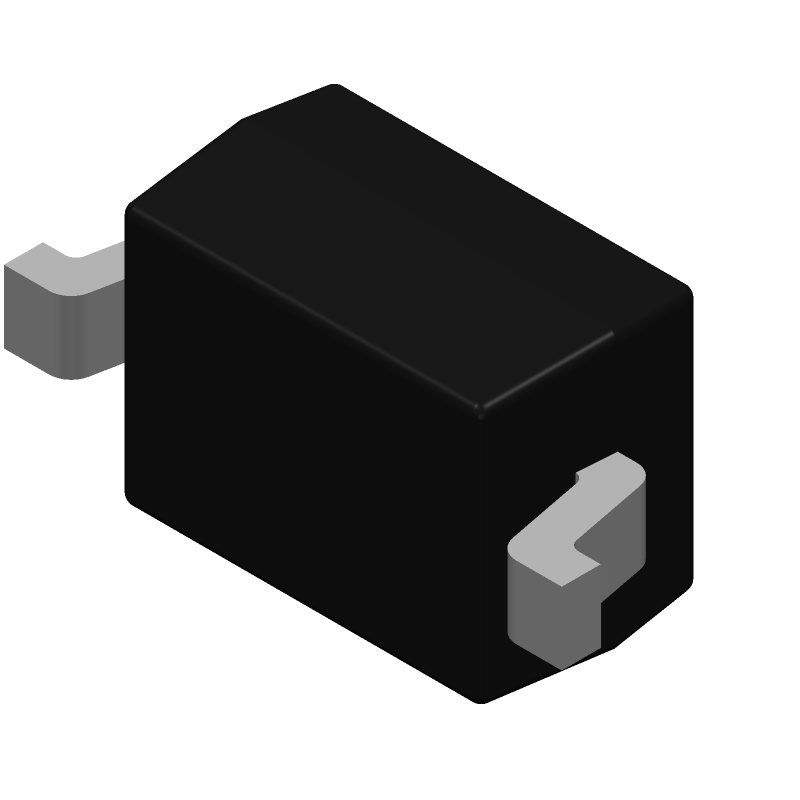

BAT54WS CAD Models
BAT54WS Part Data Attributes
|
|
BAT54WS
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BAT54WS
Micro Commercial Components
Rectifier Diode, Schottky, 1 Element, 0.2A, Silicon, PLASTIC PACKAGE-2
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | SOD-323, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | MCC | |
| Additional Feature | HIGH RELIABILITY | |
| Application | GENERAL PURPOSE | |
| Breakdown Voltage-Min | 30 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.2 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Current-Max | 0.5 µA | |
| Reverse Test Voltage | 30 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 3 |
Alternate Parts for BAT54WS
This table gives cross-reference parts and alternative options found for BAT54WS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAT54WS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BAT54WS-E3-18 | Vishay Intertechnologies | $0.0371 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 0.2A, 30V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-2 | BAT54WS vs BAT54WS-E3-18 |
| LBAT54HT1 | LRC Leshan Radio Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Element, 30V V(RRM), | BAT54WS vs LBAT54HT1 |
| BAT54WS | International Rectifier | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, | BAT54WS vs BAT54WS |
| BAT54HT1GH | Zowie Technology Corp | Check for Price | Rectifier Diode, | BAT54WS vs BAT54HT1GH |
| BAT54WS-H | Formosa Microsemi Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, HALOGEN FREE, PLASTIC PACKAGE-2 | BAT54WS vs BAT54WS-H |
| 1PS76SB10T/R | NXP Semiconductors | Check for Price | DIODE 0.2 A, SILICON, SIGNAL DIODE, PLASTIC, SC-76, 2 PIN, Signal Diode | BAT54WS vs 1PS76SB10T/R |
| BAT54HT1 | Zowie Technology Corp | Check for Price | Rectifier Diode, Schottky, 1 Element, 30V V(RRM), | BAT54WS vs BAT54HT1 |
| 1PS76SB10/T1 | NXP Semiconductors | Check for Price | DIODE 0.2 A, SILICON, SIGNAL DIODE, PLASTIC, SC-76, 2 PIN, Signal Diode | BAT54WS vs 1PS76SB10/T1 |
| BAT54WS-T1 | Won-Top Electronics Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, PLASTIC PACKAGE-2 | BAT54WS vs BAT54WS-T1 |
BAT54WS Frequently Asked Questions (FAQ)
-
The recommended footprint for the BAT54WS is a standard SOT23 package with a 0.65mm x 0.65mm pad size and a 0.3mm x 0.3mm thermal pad.
-
Yes, the BAT54WS can be used in switching regulator applications due to its low forward voltage drop and high switching speed. However, ensure that the diode is properly sized for the application and that the switching frequency is within the recommended range.
-
The BAT54WS has an internal ESD protection diode, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
-
The BAT54WS can operate from -55°C to 150°C, but the maximum junction temperature should not exceed 150°C. Ensure that the device is properly derated for high-temperature applications.
-
Yes, the BAT54WS can be used in high-frequency applications up to 1 GHz due to its low capacitance and high switching speed. However, ensure that the diode is properly sized for the application and that the frequency is within the recommended range.
