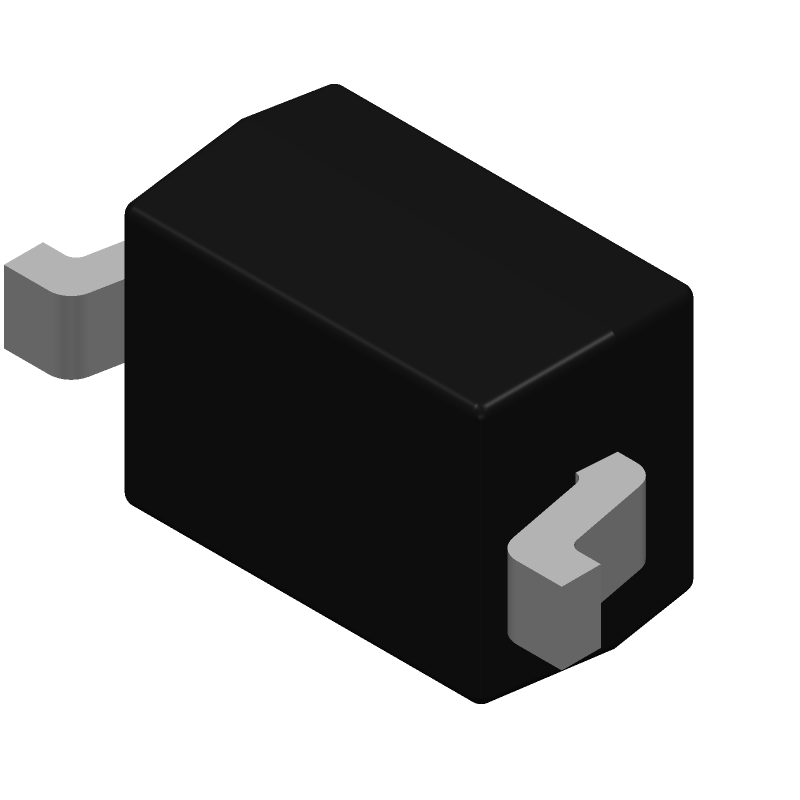

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAT54WS-TP by Micro Commercial Components
Results Overview of BAT54WS-TP by Micro Commercial Components
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
BAT54WS-TP Information
BAT54WS-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAT54WS-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
21AM9372
|
Newark | Schottky Diode, 30V, 0.2A, Sod-323 Rohs Compliant: Yes |Micro Commercial Components BAT54WS-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 8885 |
|
$0.0800 / $0.2170 | Buy Now |
|
DISTI #
BAT54WS-TPCT-ND
|
DigiKey | DIODE SCHOTTKY 30V 200MA SOD323 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
176523 In Stock |
|
$0.0192 / $0.1300 | Buy Now |
|
DISTI #
833-BAT54WS-TP
|
Mouser Electronics | Schottky Diodes & Rectifiers 30V RoHS: Compliant | 19324 |
|
$0.0300 / $0.1300 | Buy Now |
|
DISTI #
E54:1762_08671302
|
Arrow Electronics | Diode Small Signal Schottky 30V 0.2A 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2442 | Europe - 4293000 |
|
$0.0138 / $0.0260 | Buy Now |
|
DISTI #
A03:0893_02272357
|
Arrow Electronics | Diode Small Signal Schottky 30V 0.2A 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks | Asia - 783000 |
|
$0.0138 / $0.0260 | Buy Now |
|
DISTI #
V36:1790_06828887
|
Arrow Electronics | Diode Small Signal Schottky 30V 0.2A 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 18 Weeks Date Code: 2431 | Americas - 117000 |
|
$0.0138 / $0.0260 | Buy Now |
|
DISTI #
V72:2272_06828887
|
Arrow Electronics | Diode Small Signal Schottky 30V 0.2A 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 1531 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2223 Container: Cut Strips | Americas - 1531 |
|
$0.0263 | Buy Now |
|
|
Future Electronics | BAT54WS Series 30 V 200 mA Schottky Barrier Diode Surface Mount - SOD-323 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Container: Reel | 207000Reel |
|
$0.0139 / $0.0152 | Buy Now |
|
DISTI #
86224773
|
Verical | Diode Small Signal Schottky 30V 0.2A 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2442 | Americas - 4293000 |
|
$0.0138 / $0.0260 | Buy Now |
|
DISTI #
17172632
|
Verical | Diode Small Signal Schottky 30V 0.2A 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 | Americas - 783000 |
|
$0.0138 / $0.0189 | Buy Now |
Part Details for BAT54WS-TP
BAT54WS-TP CAD Models
BAT54WS-TP Part Data Attributes
|
|
BAT54WS-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BAT54WS-TP
Micro Commercial Components
Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | MCC | |
| Additional Feature | HIGH RELIABILITY | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 0.6 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.2 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Current-Max | 2 µA | |
| Reverse Recovery Time-Max | 0.005 µs | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for BAT54WS-TP
This table gives cross-reference parts and alternative options found for BAT54WS-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAT54WS-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LBAT54HT1 | LRC Leshan Radio Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Element, 30V V(RRM), | BAT54WS-TP vs LBAT54HT1 |
| BAT54WS | International Rectifier | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, | BAT54WS-TP vs BAT54WS |
| BAT54HT1GH | Zowie Technology Corp | Check for Price | Rectifier Diode, | BAT54WS-TP vs BAT54HT1GH |
| BAT54WS-H | Formosa Microsemi Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, HALOGEN FREE, PLASTIC PACKAGE-2 | BAT54WS-TP vs BAT54WS-H |
| 1PS76SB10T/R | NXP Semiconductors | Check for Price | DIODE 0.2 A, SILICON, SIGNAL DIODE, PLASTIC, SC-76, 2 PIN, Signal Diode | BAT54WS-TP vs 1PS76SB10T/R |
| BAT54WS-E3-18 | Vishay Intertechnologies | $0.0371 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 0.2A, 30V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-2 | BAT54WS-TP vs BAT54WS-E3-18 |
| BAT54HT1 | Zowie Technology Corp | Check for Price | Rectifier Diode, Schottky, 1 Element, 30V V(RRM), | BAT54WS-TP vs BAT54HT1 |
| 1PS76SB10/T1 | NXP Semiconductors | Check for Price | DIODE 0.2 A, SILICON, SIGNAL DIODE, PLASTIC, SC-76, 2 PIN, Signal Diode | BAT54WS-TP vs 1PS76SB10/T1 |
| BAT54WS-T1 | Won-Top Electronics Co Ltd | Check for Price | Rectifier Diode, Schottky, 1 Element, 0.2A, 30V V(RRM), Silicon, PLASTIC PACKAGE-2 | BAT54WS-TP vs BAT54WS-T1 |
BAT54WS-TP Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the BAT54WS-TP is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, the BAT54WS-TP is a high-speed switching diode with a fast reverse recovery time, making it suitable for high-frequency switching applications up to 1 GHz.
-
The maximum allowable power dissipation for the BAT54WS-TP is 500 mW at a temperature of 25°C.
-
Yes, the BAT54WS-TP is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The typical junction capacitance of the BAT54WS-TP is around 1.5 pF.
