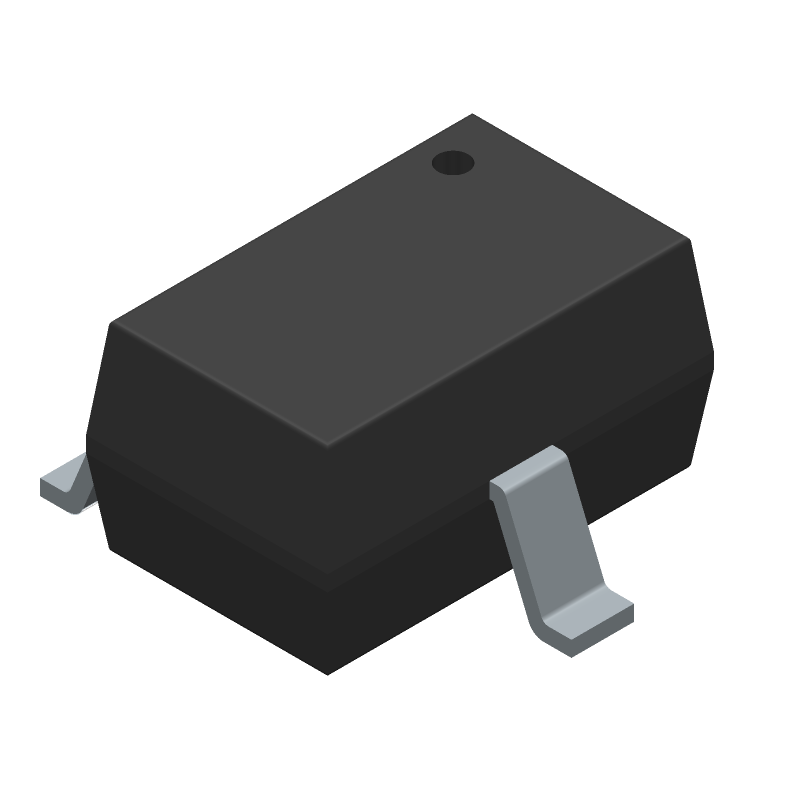

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAT54SWFILM by STMicroelectronics
Results Overview of BAT54SWFILM by STMicroelectronics
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
BAT54SWFILM Information
BAT54SWFILM by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAT54SWFILM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2629714RL
|
Farnell | SCHOTTKY DIODE, 40V, 0.3A, SOT-323 RoHS: Compliant Min Qty: 500 Lead time: 18 Weeks, 1 Days Container: Reel | 22185 |
|
$0.0583 / $0.0848 | Buy Now |
|
DISTI #
2629714
|
Farnell | SCHOTTKY DIODE, 40V, 0.3A, SOT-323 RoHS: Compliant Min Qty: 5 Lead time: 18 Weeks, 1 Days Container: Cut Tape | 22185 |
|
$0.0583 / $0.3182 | Buy Now |
|
DISTI #
497-14153-1-ND
|
DigiKey | DIODE ARR SCHOT 40V 300MA SOT323 Min Qty: 1 Lead time: 25 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3665 In Stock |
|
$0.0387 / $0.2000 | Buy Now |
|
DISTI #
BAT54SWFILM
|
Avnet Americas | Diode Small Signal Schottky 40V 0.3A 3-Pin SOT-323 T/R - Tape and Reel (Alt: BAT54SWFILM) RoHS: Compliant Min Qty: 21000 Package Multiple: 3000 Lead time: 25 Weeks, 0 Days Container: Reel | 0 |
|
$0.0311 / $0.0330 | Buy Now |
|
DISTI #
511-BAT54SWFILM
|
Mouser Electronics | Schottky Diodes & Rectifiers 150mA 40 Volt RoHS: Compliant | 30780 |
|
$0.0400 / $0.2000 | Buy Now |
|
DISTI #
E02:0323_00207654
|
Arrow Electronics | Diode Small Signal Schottky 40V 0.3A 3-Pin SOT-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 25 Weeks Date Code: 2512 | Europe - 879000 |
|
$0.0292 / $0.0499 | Buy Now |
|
DISTI #
V79:2366_17781155
|
Arrow Electronics | Diode Small Signal Schottky 40V 0.3A 3-Pin SOT-323 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 1652 | Americas - 4 |
|
$0.0233 / $0.0300 | Buy Now |
|
DISTI #
V72:2272_17677142
|
Arrow Electronics | Diode Small Signal Schottky 40V 0.3A 3-Pin SOT-323 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 2150 Container: Cut Strips | Americas - 2 |
|
$0.0583 | Buy Now |
|
|
STMicroelectronics | Small Signal Schottky Diode RoHS: Compliant Min Qty: 1 | 30780 |
|
$0.0800 / $0.2000 | Buy Now |
|
DISTI #
88117346
|
Verical | Diode Small Signal Schottky 40V 0.3A 3-Pin SOT-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2512 | Americas - 879000 |
|
$0.0293 / $0.0499 | Buy Now |
Part Details for BAT54SWFILM
BAT54SWFILM CAD Models
BAT54SWFILM Part Data Attributes
|
|
BAT54SWFILM
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
BAT54SWFILM
STMicroelectronics
40 V, 300 mA General purpose Signal Schottky Diode
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | ROHS COMPLIANT PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 25 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Application | GENERAL PURPOSE | |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.24 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 1 A | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.3 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Reverse Recovery Time-Max | 0.005 µs | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for BAT54SWFILM
This table gives cross-reference parts and alternative options found for BAT54SWFILM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAT54SWFILM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BAT54SFILM | STMicroelectronics | $0.0457 | 40 V, 300 mA General purpose Signal Schottky Diode | BAT54SWFILM vs BAT54SFILM |
| BAT64-04W-TP-HF | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 0.25A, 40V V(RRM), | BAT54SWFILM vs BAT64-04W-TP-HF |
BAT54SWFILM Frequently Asked Questions (FAQ)
-
The BAT54SWFILM can operate from -55°C to 150°C, making it suitable for a wide range of applications.
-
To ensure reliability, follow proper storage and handling procedures, and use the device within its recommended operating conditions. Additionally, consider using a moisture-sensitive device handling procedure to prevent damage.
-
The recommended soldering temperature profile for the BAT54SWFILM is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
-
Yes, the BAT54SWFILM can be used in switching applications due to its fast switching times (trr < 10 ns) and low capacitance (Ct < 2 pF). However, ensure that the device is operated within its recommended conditions and consider the application's specific requirements.
-
To calculate the power dissipation of the BAT54SWFILM, use the formula Pd = VF * IF, where Pd is the power dissipation, VF is the forward voltage drop, and IF is the forward current.
