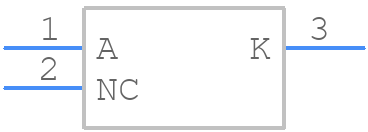

Part Symbol
-
Footprint
-

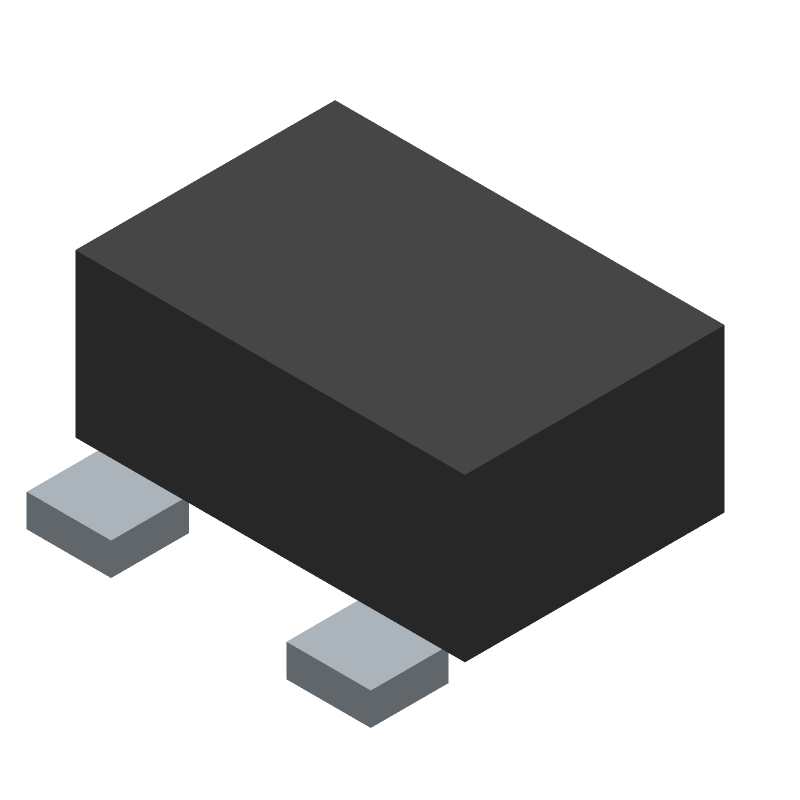

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAT54M-HF by Comchip Technology Corporation Ltd
Results Overview of BAT54M-HF by Comchip Technology Corporation Ltd
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
BAT54M-HF Information
BAT54M-HF by Comchip Technology Corporation Ltd is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAT54M-HF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
641-BAT54M-HFCT-ND
|
DigiKey | DIODE SCHOTTKY 30V 200MA SOT723 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7979 In Stock |
|
$0.0225 / $0.2400 | Buy Now |
|
DISTI #
750-BAT54M-HF
|
Mouser Electronics | Schottky Diodes & Rectifiers DIODE SCHOTTKY 30V 0.2A SOT-723 RoHS: Compliant | 7970 |
|
$0.0260 / $0.2400 | Buy Now |
|
|
NAC | DIODE SCHOTTKY 30V 0.2A SOT-723 RoHS: Compliant Min Qty: 8000 Package Multiple: 3000 | 0 |
|
$0.0260 / $0.0500 | Buy Now |
Part Details for BAT54M-HF
BAT54M-HF CAD Models
BAT54M-HF Part Data Attributes
|
|
BAT54M-HF
Comchip Technology Corporation Ltd
Buy Now
Datasheet
|
Compare Parts:
BAT54M-HF
Comchip Technology Corporation Ltd
Rectifier Diode, Schottky, 1 Phase, 1 Element, 0.2A, 30V V(RRM), Silicon, SOT-723, 3 PIN
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | COMCHIP TECHNOLOGY CO LTD | |
| Package Description | SOT-723, 3 PIN | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Comchip Technology | |
| Additional Feature | LOW LEAKAGE CURRENT | |
| Application | GENERAL PURPOSE | |
| Breakdown Voltage-Min | 30 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-F3 | |
| Non-rep Pk Forward Current-Max | 0.6 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Power Dissipation-Max | 0.15 W | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Current-Max | 2 µA | |
| Reverse Recovery Time-Max | 0.005 µs | |
| Reverse Test Voltage | 25 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL |
