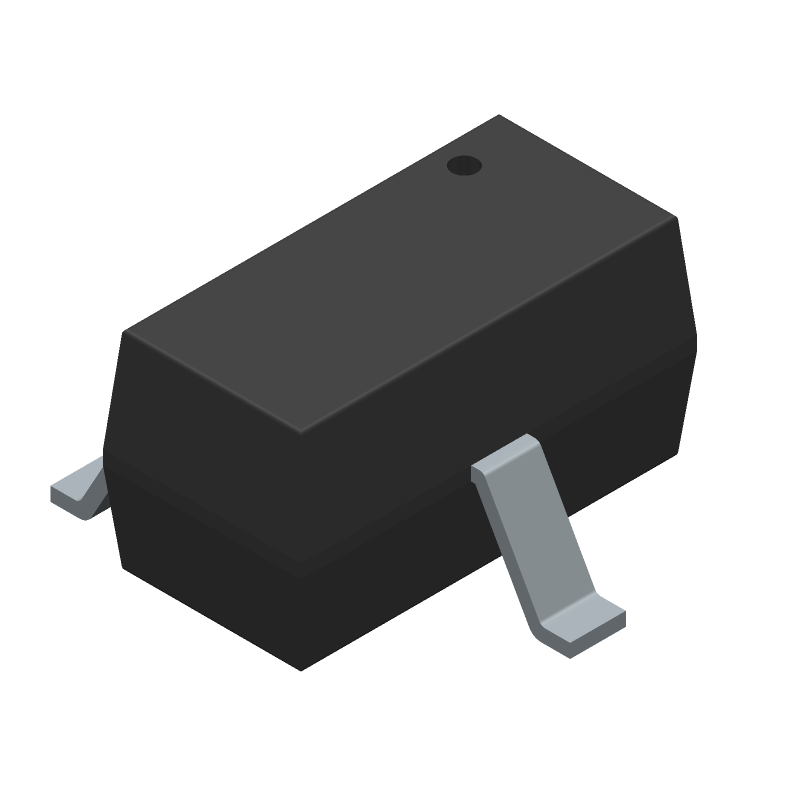

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAT54CTT1G by onsemi
Results Overview of BAT54CTT1G by onsemi
- Distributor Offerings: (27 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
BAT54CTT1G Information
BAT54CTT1G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAT54CTT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
10N9691
|
Newark | Schottky Rectifier, Common Cathode, 0.1A Sc-75, Diode Configuration:Dual Common Cathode, Repetitive Peak Reverse Voltage:40V, Average Forward Current:200Ma, Forward Voltage Max:320Mv, Forward Surge Current:600Ma, No. Of Pins:3Pins Rohs Compliant: Yes |Onsemi BAT54CTT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 23 |
|
$0.0590 / $0.2990 | Buy Now |
|
DISTI #
41K9584
|
Newark | Schottky Rectifier, Common Cathode, 0.1A Sc-75, Full Reel, Diode Configuration:Dual Common Cathode, Repetitive Peak Reverse Voltage:40V, Average Forward Current:200Ma, Forward Voltage Max:320Mv, Forward Surge Current:600Ma Rohs Compliant: Yes |Onsemi BAT54CTT1G RoHS: Compliant Min Qty: 9000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0350 | Buy Now |
|
DISTI #
37AH9079
|
Newark | Sc-75 Dual Common Cathode Rohs Compliant: Yes |Onsemi BAT54CTT1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0290 | Buy Now |
|
DISTI #
BAT54CTT1GOSCT-ND
|
DigiKey | DIODE ARRAY SCHOT 30V 200MA SC75 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2208 In Stock |
|
$0.0283 / $0.1700 | Buy Now |
|
DISTI #
BAT54CTT1G
|
Avnet Americas | Small Signal Schottky Diode, Dual Common Cathode, 30 V, 200 mA, 800 mV, 600 mA, 125 ?C, SC-75, 3 Pins - Tape and Reel (Alt: BAT54CTT1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 18000 |
|
$0.0260 / $0.0290 | Buy Now |
|
DISTI #
BAT54CTT1G
|
Avnet Americas | Small Signal Schottky Diode, Dual Common Cathode, 30 V, 200 mA, 800 mV, 600 mA, 125 ?C, SC-75, 3 Pins - Tape and Reel (Alt: BAT54CTT1G) RoHS: Compliant Min Qty: 20834 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 372000 Partner Stock |
|
$0.0267 / $0.0308 | Buy Now |
|
DISTI #
10N9691
|
Avnet Americas | Small Signal Schottky Diode, Dual Common Cathode, 30 V, 200 mA, 800 mV, 600 mA, 125 ?C, SC-75, 3 Pins - Product that comes on tape, but is not reeled (Alt: 10N9691) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.0650 | Buy Now |
|
DISTI #
863-BAT54CTT1G
|
Mouser Electronics | Schottky Diodes & Rectifiers 30V 225mW Dual Common Anode RoHS: Compliant | 162059 |
|
$0.0320 / $0.2900 | Buy Now |
|
DISTI #
E02:0323_00078262
|
Arrow Electronics | Diode Schottky 0.2A 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks | Europe - 27000 |
|
$0.0307 / $0.0313 | Buy Now |
|
DISTI #
V36:1790_07303883
|
Arrow Electronics | Diode Schottky 0.2A 3-Pin SOT-416 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2426 | Americas - 24000 |
|
$0.0271 / $0.0276 | Buy Now |
Part Details for BAT54CTT1G
BAT54CTT1G CAD Models
BAT54CTT1G Part Data Attributes
|
|
BAT54CTT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
BAT54CTT1G
onsemi
200 mA, 30 V, Dual Schottky Diode, Common Cathode, SC-75 (SOT-416) 3 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-75 (SOT-416) 3 LEAD | |
| Package Description | HALOGEN FREE AND ROHS COMPLIANT, MINIATURE, CASE 463-01, SC-75, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 463-01 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Application | GENERAL PURPOSE | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.24 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 0.6 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.225 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Recovery Time-Max | 0.005 µs | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for BAT54CTT1G
This table gives cross-reference parts and alternative options found for BAT54CTT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAT54CTT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BAT54C,235 | NXP Semiconductors | Check for Price | BAT54 series - Schottky barrier diodes TO-236 3-Pin | BAT54CTT1G vs BAT54C,235 |
| BAT54C | STMicroelectronics | Check for Price | 30V, 2 ELEMENT, SILICON, SIGNAL DIODE, SOT-23, 3 PIN | BAT54CTT1G vs BAT54C |
| UBAT54CTC | Diodes Incorporated | Check for Price | Rectifier Diode, Schottky, 2 Element, 0.2A, Silicon, | BAT54CTT1G vs UBAT54CTC |
| BAT54CT | Micro Commercial Components | Check for Price | Rectifier Diode, Schottky, 2 Element, 0.2A, 30V V(RRM), Silicon, ULTRA SMALL, PLASTIC PACKAGE-3 | BAT54CTT1G vs BAT54CT |
| BAT54C | Fairchild Semiconductor Corporation | Check for Price | Rectifier Diode, Schottky, 2 Element, 0.2A, 30V V(RRM), Silicon, TO-236AB, SOT-23, 3 PIN | BAT54CTT1G vs BAT54C |
| BAT54C-T1 | Won-Top Electronics Co Ltd | Check for Price | Rectifier Diode, Schottky, 2 Element, 0.2A, 30V V(RRM), Silicon, PLASTIC PACKAGE-3 | BAT54CTT1G vs BAT54C-T1 |
| BAT54CT | Lite-On Semiconductor Corporation | Check for Price | Rectifier Diode, Schottky, 2 Element, 0.2A, 30V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-3 | BAT54CTT1G vs BAT54CT |
| BAT54CXV3T1 | onsemi | Check for Price | 200 mA, 30 V, Dual Schottky Diode, Common Cathode, SC-89, 3 LEAD, 3000-REEL | BAT54CTT1G vs BAT54CXV3T1 |
BAT54CTT1G Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the BAT54CTT1G is -55°C to 150°C.
-
To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking and ensuring good airflow around the device.
-
The maximum allowable power dissipation for the BAT54CTT1G is 250 mW at 25°C free-air temperature.
-
Yes, the BAT54CTT1G can be used in switching applications, but it's essential to ensure that the device is operated within its recommended switching frequency and voltage ratings.
-
To prevent ESD damage, it's recommended to follow proper ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials.
