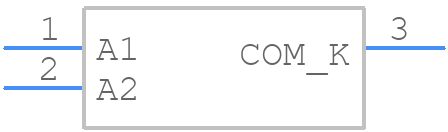

Part Symbol
-
Footprint
-

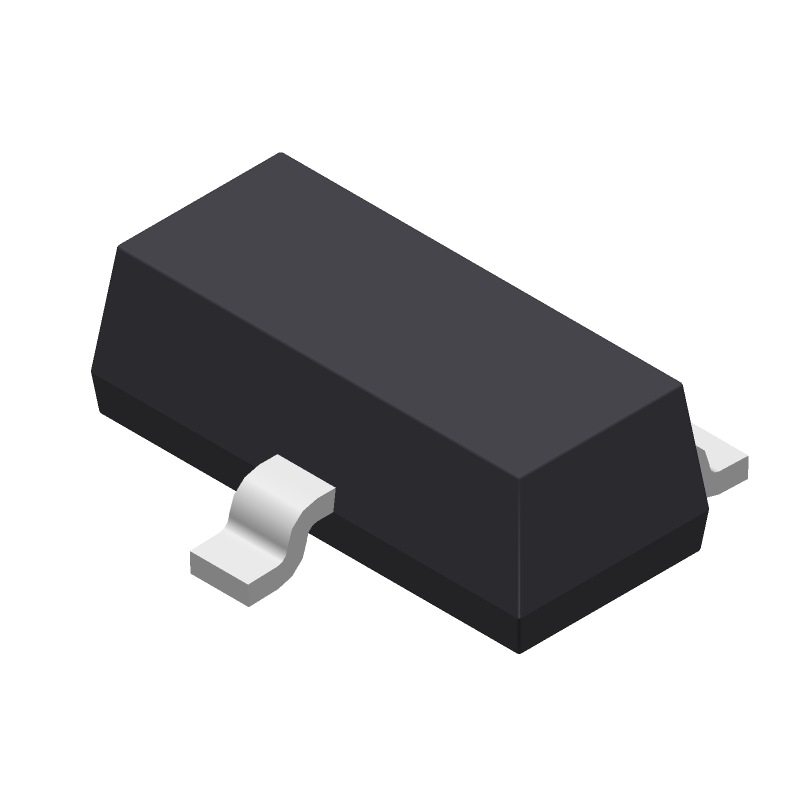

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAT54C-HE3_A-08 by Vishay Intertechnologies
Results Overview of BAT54C-HE3_A-08 by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BAT54C-HE3_A-08 Information
BAT54C-HE3_A-08 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 74AC11000DR | Texas Instruments | Quadruple 2-Input Positive-NAND Gates 16-SOIC -40 to 85 | |
| 74AC11008PWR | Texas Instruments | Quadruple 2-Input Positive-AND Gates 16-TSSOP -40 to 85 | |
| 74AC11138N | Texas Instruments | 3-Line to 8-Line Decoders/Demultiplexers 16-PDIP -40 to 85 |
Price & Stock for BAT54C-HE3_A-08
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
112-BAT54C-HE3_A-08CT-ND
|
DigiKey | DIODE ARR SCHOTT 30V 200MA SOT23 Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
13980 In Stock |
|
$0.0437 / $0.3000 | Buy Now |
|
DISTI #
BAT54C-HE3_A-08
|
Avnet Americas | SCHOTTKY DIODE SOT23 - Tape and Reel (Alt: BAT54C-HE3_A-08) RoHS: Not Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0422 / $0.0437 | Buy Now |
|
DISTI #
78-BAT54C-HE3_A-08
|
Mouser Electronics | Schottky Diodes & Rectifiers SCHOTTKY DIODE SOT23 RoHS: Compliant | 9175 |
|
$0.0430 / $0.3000 | Buy Now |
|
DISTI #
BAT54C-HE3_A-08
|
EBV Elektronik | SCHOTTKY DIODE SOT23 (Alt: BAT54C-HE3_A-08) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for BAT54C-HE3_A-08
BAT54C-HE3_A-08 CAD Models
BAT54C-HE3_A-08 Part Data Attributes
|
|
BAT54C-HE3_A-08
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
BAT54C-HE3_A-08
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Phase, 2 Element, 0.2A, 30V V(RRM), Silicon, SOT-23, 3 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SOT-23, 3 PIN | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Application | FAST RECOVERY | |
| Breakdown Voltage-Min | 30 V | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.8 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 0.6 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Power Dissipation-Max | 0.33 W | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Reverse Current-Max | 0.002 µA | |
| Reverse Recovery Time-Max | 0.005 µs | |
| Reverse Test Voltage | 25 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL |
