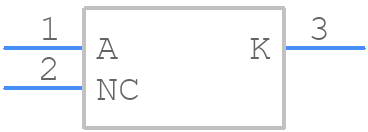

Part Symbol
-
Footprint
-

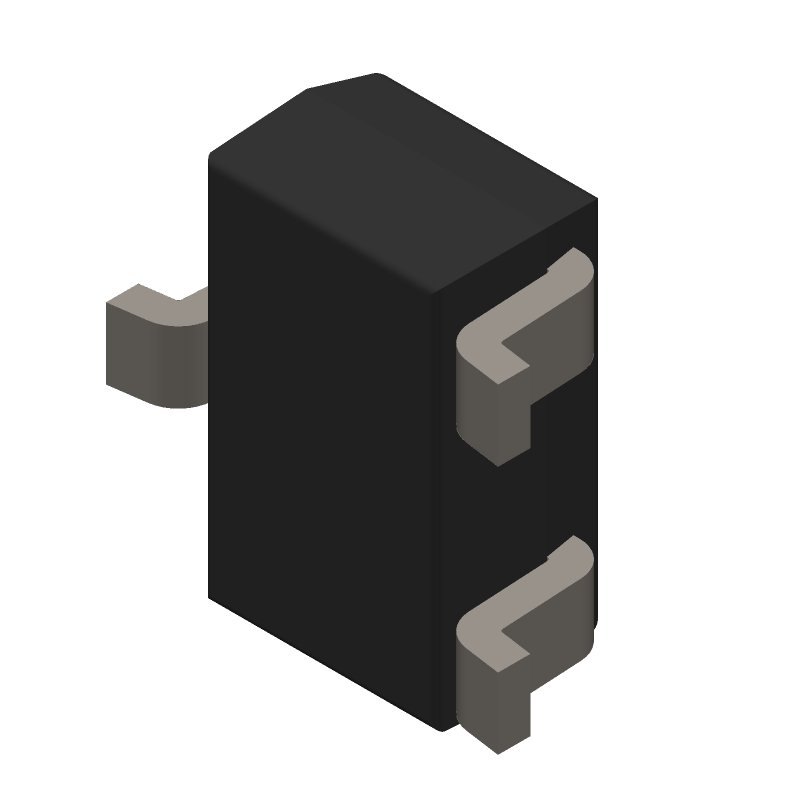

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAS70WQ-7-F by Diodes Incorporated
Results Overview of BAS70WQ-7-F by Diodes Incorporated
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BAS70WQ-7-F Information
BAS70WQ-7-F by Diodes Incorporated is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAS70WQ-7-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31-BAS70WQ-7-FCT-ND
|
DigiKey | DIODE SCHOTTKY 70V 70MA SOT323 Min Qty: 3000 Lead time: 12 Weeks Container: Tape & Reel (TR), Cut Tape (CT), Digi-Reel® | Temporarily Out of Stock |
|
$0.0493 / $0.0616 | Buy Now |
|
DISTI #
BAS70WQ-7-F
|
Avnet Americas | Diode Schottky 70V 70mA 3-Pin SOT-323 T/R - Tape and Reel (Alt: BAS70WQ-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 351000 Factory Stock |
|
$0.0472 / $0.0482 | Buy Now |
|
DISTI #
621-BAS70WQ-7-F
|
Mouser Electronics | Schottky Diodes & Rectifiers Schottky Diode SOT323 T&R 3K RoHS: Compliant | 7431 |
|
$0.0510 / $0.4300 | Buy Now |
|
DISTI #
BAS70WQ-7-F
|
TME | Diode: Schottky switching, SOT323, SMD, 70V, 70mA, 5ns, reel,tape Min Qty: 5 | 0 |
|
$0.0620 / $0.1490 | RFQ |
|
DISTI #
BAS70WQ-7-F
|
Avnet Silica | Diode Schottky 70V 70mA 3Pin SOT323 TR (Alt: BAS70WQ-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 3000 |
|
Buy Now | |
|
|
LCSC | 70V 70mA 1V15mA SOT-323 Schottky Diodes ROHS | 20 |
|
$0.0778 / $0.0816 | Buy Now |
Part Details for BAS70WQ-7-F
BAS70WQ-7-F CAD Models
BAS70WQ-7-F Part Data Attributes
|
|
BAS70WQ-7-F
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
BAS70WQ-7-F
Diodes Incorporated
Rectifier Diode, Schottky, 1 Element, 0.07A, 70V V(RRM), Silicon,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Additional Feature | FREE WHEELING DIODE, HIGH RELIABILITY | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.07 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.2 W | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 70 V | |
| Reverse Recovery Time-Max | 0.005 µs | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
