BAS70-06W by:

Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon

Part Details for BAS70-06W by Nexperia

Results Overview of BAS70-06W by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

BAS70-06W Information

BAS70-06W by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for BAS70-06W

Part # Distributor Description Stock Price Buy
Bristol Electronics   Min Qty: 27 400
  • 27 $0.1875
  • 81 $0.0938
$0.0938 / $0.1875 Buy Now

Part Details for BAS70-06W

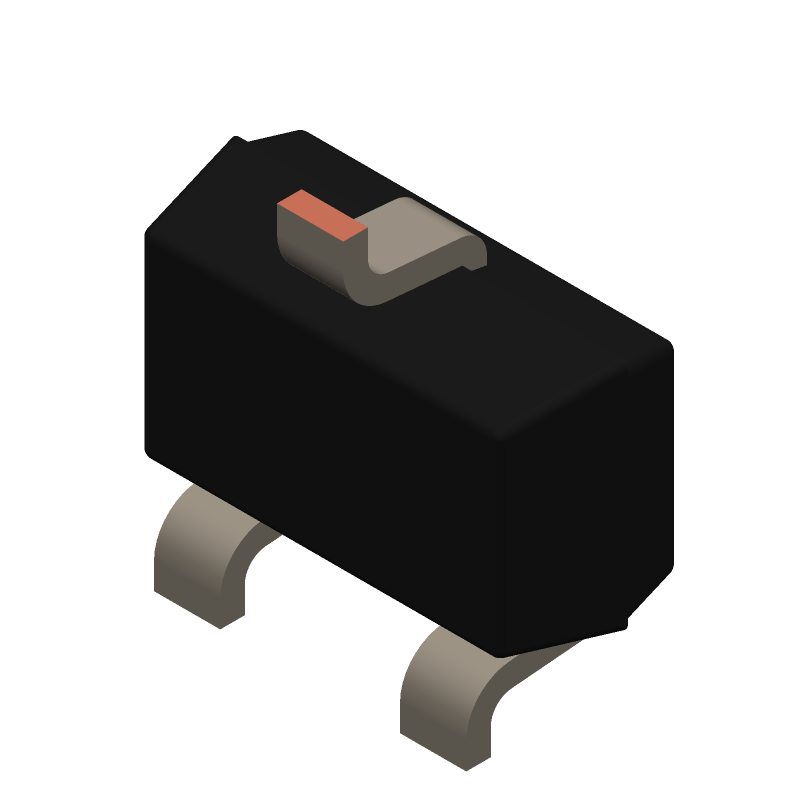

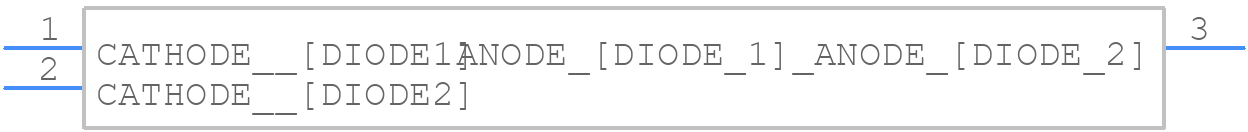

BAS70-06W CAD Models

BAS70-06W Part Data Attributes

BAS70-06W Nexperia
Buy Now Datasheet
Compare Parts:
BAS70-06W Nexperia Rectifier Diode, Schottky, 2 Element, 0.07A, 70V V(RRM), Silicon
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NEXPERIA
Package Description SC-70, SOT-323, 3 PIN
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.70
Date Of Intro 1995-01-12
Samacsys Manufacturer Nexperia
Additional Feature LOW LEAKAGE CURRENT
Application GENERAL PURPOSE
Configuration COMMON ANODE, 2 ELEMENTS
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 1 V
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 0.1 A
Number of Elements 2
Number of Phases 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Operating Temperature-Min -65 °C
Output Current-Max 0.035 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Reference Standard IEC-60134
Rep Pk Reverse Voltage-Max 70 V
Reverse Current-Max 10 µA
Reverse Test Voltage 70 V
Surface Mount YES
Technology SCHOTTKY
Terminal Finish TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
