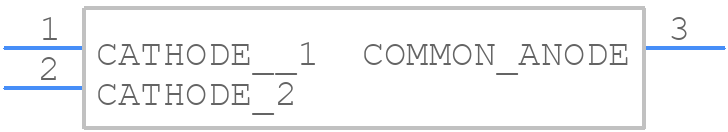

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAS70-06-HE3-08 by Vishay Intertechnologies
Results Overview of BAS70-06-HE3-08 by Vishay Intertechnologies
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BAS70-06-HE3-08 Information
BAS70-06-HE3-08 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAS70-06-HE3-08
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
09X2311
|
Newark | Schottky Diode Sot23 |Vishay BAS70-06-HE3-08 RoHS: Not Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0550 / $0.0750 | Buy Now |
|
DISTI #
BAS70-06-HE3-08
|
Avnet Americas | Small-Signal Diodes - Tape and Reel (Alt: BAS70-06-HE3-08) RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0469 / $0.0510 | Buy Now |
|
|
Quest Components | 544 |
|
$0.0700 / $0.3500 | Buy Now | |
|
DISTI #
BAS70-06-HE3-08
|
TME | Diode: Schottky switching, SOT23, SMD, 70V, 0.2A, 5ns, reel,tape Min Qty: 10 | 2555 |
|
$0.0503 / $0.1149 | Buy Now |
|
DISTI #
SMC-BAS70-06-HE3-08
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 108000 |
|
RFQ | |
|
DISTI #
BAS70-06-HE3-08
|
EBV Elektronik | SmallSignal Diodes (Alt: BAS70-06-HE3-08) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for BAS70-06-HE3-08
BAS70-06-HE3-08 CAD Models
BAS70-06-HE3-08 Part Data Attributes
|
|
BAS70-06-HE3-08
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
BAS70-06-HE3-08
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Phase, 2 Element, 0.2A, 70V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | ROHS COMPLIANT PACKAGE-3 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Application | GENERAL PURPOSE | |
| Case Connection | UNSPECIFIED | |
| Configuration | COMMON ANODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.41 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 0.6 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Power Dissipation-Max | 0.2 W | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 70 V | |
| Reverse Recovery Time-Max | 0.005 µs | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL |
BAS70-06-HE3-08 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for BAS70-06-HE3-08 is 260°C (500°F) for 10 seconds, with a peak temperature not exceeding 280°C (536°F).
-
Yes, the BAS70-06-HE3-08 is a high-speed diode with a switching time of 4 ns, making it suitable for high-frequency applications up to 1 GHz.
-
The maximum allowable power dissipation for the BAS70-06-HE3-08 is 500 mW, with a derating of 3.33 mW/°C above 25°C (77°F).
-
No, the BAS70-06-HE3-08 is not a radiation-hardened diode. It is not designed for use in high-radiation environments.
-
The equivalent series resistance (ESR) of the BAS70-06-HE3-08 is typically around 1.5 ohms.
