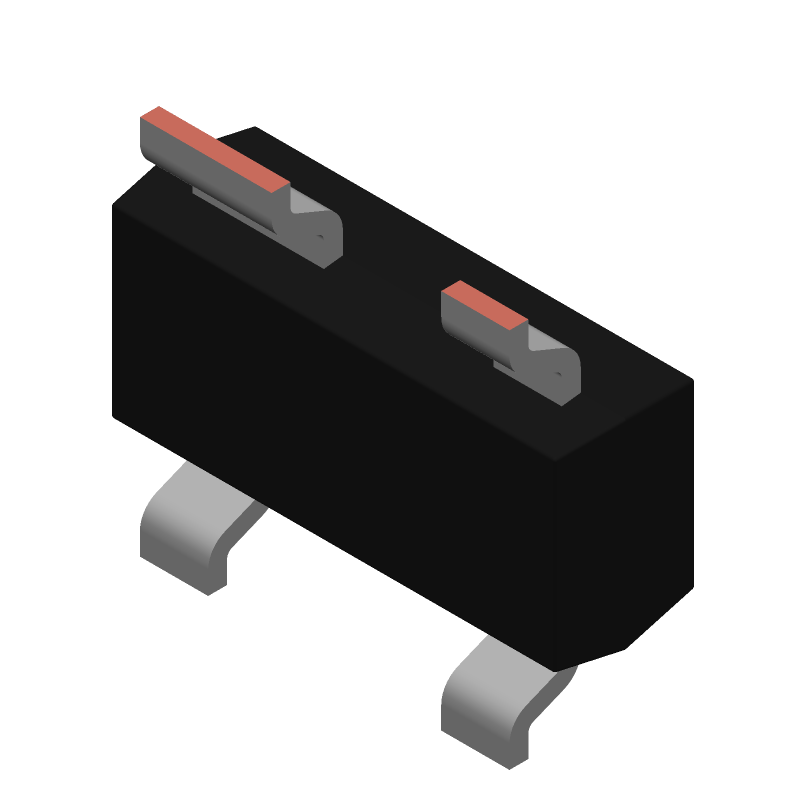

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAS56,235 by Nexperia
Results Overview of BAS56,235 by Nexperia
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
BAS56,235 Information
BAS56,235 by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAS56,235
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1727-6379-1-ND
|
DigiKey | DIODE ARRAY GP 60V 200MA SOT143B Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
10046 In Stock |
|
$0.0376 / $0.2100 | Buy Now |
|
DISTI #
BAS56,235
|
Avnet Americas | Diode Switching 120V 0.2A 4-Pin(3+Tab) SOT-143B T/R - Tape and Reel (Alt: BAS56,235) RoHS: Compliant Min Qty: 20000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0373 / $0.0409 | Buy Now |
|
DISTI #
771-BAS56235
|
Mouser Electronics | Small Signal Switching Diodes General-purpose Schottky diode RoHS: Compliant | 4462 |
|
$0.0410 / $0.2100 | Buy Now |
|
DISTI #
BAS56,235
|
Avnet Silica | Diode Switching 120V 02A 4Pin3Tab SOT143B TR (Alt: BAS56,235) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BAS56,235
|
EBV Elektronik | Diode Switching 120V 02A 4Pin3Tab SOT143B TR (Alt: BAS56,235) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for BAS56,235
BAS56,235 CAD Models
BAS56,235 Part Data Attributes
|
|
BAS56,235
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BAS56,235
Nexperia
BAS56 - High-speed double diode@en-us SOT-143 4-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOT-143 | |
| Package Description | PLASTIC PACKAGE-4 | |
| Pin Count | 4 | |
| Manufacturer Package Code | SOT143B | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1991-04-01 | |
| Samacsys Manufacturer | Nexperia | |
| Application | GENERAL PURPOSE | |
| Case Connection | CATHODE | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 2 A | |
| Number of Elements | 2 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.25 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-60134 | |
| Rep Pk Reverse Voltage-Max | 60 V | |
| Reverse Current-Max | 0.1 µA | |
| Reverse Recovery Time-Max | 0.006 µs | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
BAS56,235 Frequently Asked Questions (FAQ)
-
Nexperia recommends a layout with a small thermal pad connected to a large copper area on the PCB to improve thermal dissipation. A minimum of 2 oz copper thickness is recommended. Additionally, keep the component away from high-current paths and ensure good airflow around the device.
-
BAS56,235 is an ESD-sensitive device. Handle it with care, and use ESD-protective equipment and packaging during storage and transportation. Ensure that the device is not exposed to electrostatic discharge during assembly and testing.
-
Although the datasheet specifies a maximum voltage rating of 35 V, it's recommended to operate the device within 80% of the maximum rating (28 V) to ensure reliability and prevent premature failure.
-
BAS56,235 is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the device's power handling capabilities at elevated temperatures.
-
The recommended resistor value depends on the specific application and required current. As a general guideline, use a resistor value that limits the current to 1/3 of the maximum rated current (Ilim) to ensure reliable operation and prevent overheating.
