Diodes / Rectifier Diodes / BAS45A,133
Datasheets
BAS45A,133 by:
Nexperia

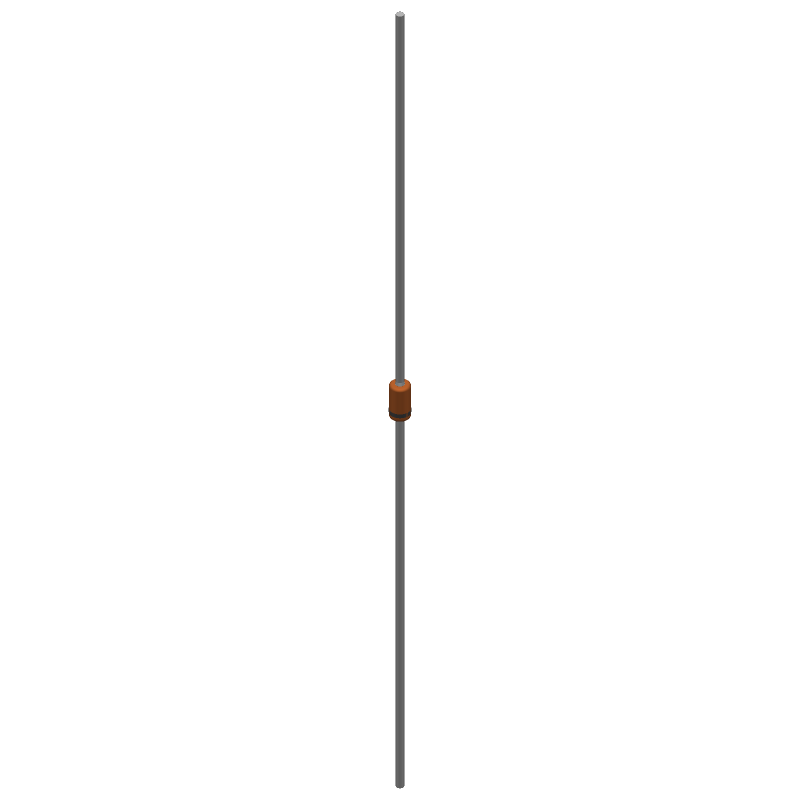

BAS45A - Low-leakage diode@en-us DO-34 2-Pin

Part Details for BAS45A,133 by Nexperia

Results Overview of BAS45A,133 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense

BAS45A,133 Information

BAS45A,133 by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for BAS45A,133

Part # Distributor Description Stock Price Buy
DISTI # 70R2001
Newark Switching Diode, 4A, 125V, Do-34, Diode Configuration:Single, Repetitive Peak Reverse Voltage:125V, Average Forward Current:250Ma, Forward Voltage Max:1V, Reverse Recovery Time:1.5Μs, Forward Surge Current:4A, No. Of Pins:2Pins Rohs Compliant: Yes |Nexperia BAS45A,133 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 3123
  • 1 $0.0710
  • 10 $0.0710
  • 100 $0.0710
  • 500 $0.0710
  • 1,000 $0.0710
  • 2,500 $0.0710
  • 10,000 $0.0710
$0.0710 Buy Now
DISTI # 1727-2083-1-ND
DigiKey DIODE STANDARD 125V 250MA DO34 Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Tape & Box (TB) 6036
In Stock
  • 1 $0.3000
  • 10 $0.2030
  • 100 $0.1624
  • 500 $0.1211
  • 1,000 $0.0940
  • 2,000 $0.0894
  • 5,000 $0.0843
  • 10,000 $0.0596
  • 20,000 $0.0594
$0.0594 / $0.3000 Buy Now
DISTI # BAS45A,133
Avnet Americas Diode Switching 125V 0.25A 2-Pin DO-34 Ammo - Ammo Pack (Alt: BAS45A,133) RoHS: Compliant Min Qty: 20000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days Container: Ammo Pack 0
  • 20,000 $0.0573
  • 40,000 $0.0570
  • 60,000 $0.0568
  • 100,000 $0.0565
  • 200,000 $0.0562
$0.0562 / $0.0573 Buy Now
DISTI # 771-BAS45A,133
Mouser Electronics Small Signal Switching Diodes Low-leakage diode RoHS: Compliant 10215
  • 1 $0.3000
  • 10 $0.2030
  • 100 $0.1590
  • 500 $0.1220
  • 1,000 $0.0870
  • 5,000 $0.0800
  • 10,000 $0.0590
$0.0590 / $0.3000 Buy Now
DISTI # 19270553
Verical Diode Switching 125V 0.25A 2-Pin DO-34 Ammo RoHS: Compliant Min Qty: 705 Package Multiple: 1 Americas - 3123
  • 705 $0.2940
$0.2940 Buy Now
DISTI # BAS45A.133
TME Diode: switching, THT, 125V, 250mA, Ammo Pack, Ifsm: 4A, DO34, 1.5us Min Qty: 1 81
  • 1 $0.3390
  • 3 $0.2770
  • 10 $0.2220
  • 25 $0.1850
  • 100 $0.1230
  • 250 $0.1160
  • 500 $0.1050
  • 1,000 $0.0890
  • 2,500 $0.0810
  • 10,000 $0.0750
$0.0750 / $0.3390 Buy Now
DISTI # BAS45A,133
Avnet Silica Diode Switching 125V 025A 2Pin DO34 Ammo (Alt: BAS45A,133) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days Silica - 0
Buy Now
DISTI # BAS45A,133
EBV Elektronik Diode Switching 125V 025A 2Pin DO34 Ammo (Alt: BAS45A,133) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now

Part Details for BAS45A,133

BAS45A,133 Part Data Attributes

Parametric Data
BAS45A,133 Nexperia
Buy Now Datasheet
Compare Parts:
BAS45A,133 Nexperia BAS45A - Low-leakage diode@en-us DO-34 2-Pin
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NEXPERIA
Part Package Code DO-34
Package Description HERMETIC SEALED, GLASS PACKAGE-2
Pin Count 2
Manufacturer Package Code SOD68
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.70
Factory Lead Time 8 Weeks
Samacsys Manufacturer Nexperia
Additional Feature LOW LEAKAGE CURRENT
Application GENERAL PURPOSE
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
JEDEC-95 Code DO-34
JESD-30 Code O-LALF-W2
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Output Current-Max 0.25 A
Package Body Material GLASS
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Power Dissipation-Max 0.3 W
Reference Standard IEC-134
Rep Pk Reverse Voltage-Max 125 V
Reverse Recovery Time-Max 1.5 µs
Surface Mount NO
Terminal Finish TIN
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 30

BAS45A,133 Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the BAS45A,133 is -55°C to 150°C.

  • Yes, the BAS45A,133 is suitable for high-frequency applications up to 5 GHz due to its low capacitance and high-frequency performance.

  • Yes, the BAS45A,133 can be used in switching power supplies due to its high voltage rating and low capacitance, making it suitable for high-frequency switching applications.

  • The recommended soldering temperature for the BAS45A,133 is 260°C for a maximum of 10 seconds.

  • Yes, the BAS45A,133 is RoHS (Restriction of Hazardous Substances) compliant, making it suitable for use in environmentally friendly designs.
