BAS40-07 Information
BAS40-07 by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Part Details for BAS40-07

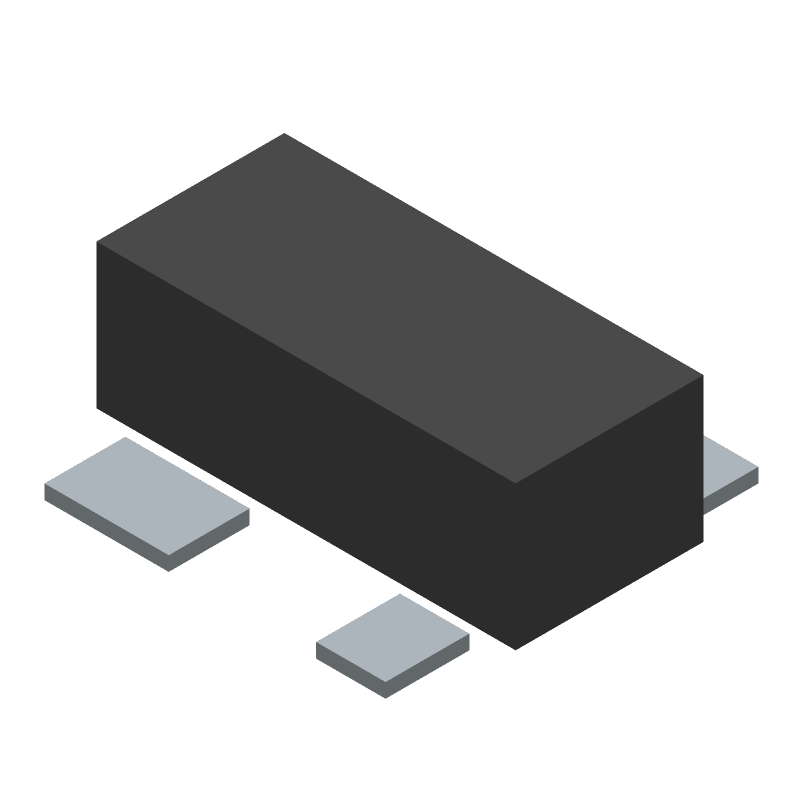

BAS40-07 CAD Models
BAS40-07 Part Data Attributes
|
|
BAS40-07
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BAS40-07
Nexperia
Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Package Description | SOT-143B, 4 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Date Of Intro | 1997-10-28 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOW LEAKAGE CURRENT | |
| Application | GENERAL PURPOSE | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 0.2 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 0.12 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-60134 | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Reverse Current-Max | 10 µA | |
| Reverse Test Voltage | 40 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
BAS40-07 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for BAS40-07 is -55°C to 150°C, but it's recommended to operate within -40°C to 125°C for optimal performance.
-
To ensure reliability in high-humidity environments, it's recommended to follow proper storage and handling procedures, and to use moisture-sensitive devices in a dry environment. Additionally, consider using a moisture-barrier coating or conformal coating to protect the device.
-
The recommended soldering temperature profile for BAS40-07 is a peak temperature of 260°C, with a dwell time of 10-30 seconds. It's also recommended to use a soldering iron with a temperature range of 200-240°C.
-
Yes, BAS40-07 can be used in switching applications, but it's essential to ensure that the device is operated within its safe operating area (SOA) to prevent damage. The device's switching characteristics, such as turn-on and turn-off times, should also be considered.
-
To calculate the power dissipation of BAS40-07, you need to consider the voltage drop across the device, the current flowing through it, and the thermal resistance of the package. The power dissipation can be calculated using the formula: Pd = (Vd x Id) + (Rth x Id^2), where Vd is the voltage drop, Id is the current, and Rth is the thermal resistance.
