3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAS40-05V,115 by Nexperia
Results Overview of BAS40-05V,115 by Nexperia
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BAS40-05V,115 Information
BAS40-05V,115 by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAS40-05V,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
37K9321
|
Newark | Schottky Rectifier, 120Ma, 40V, Sot666, Diode Configuration:Dual Common Cathode, Repetitive Peak Reverse Voltage:40V, Average Forward Current:120Ma, Forward Voltage Max:1V, Forward Surge Current:200Ma, Operating Temperature Max:150°Crohs Compliant: Yes |Nexperia BAS40-05V,115 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 215 |
|
$0.1650 / $0.3490 | Buy Now |
|
DISTI #
93X3817
|
Newark | Small Signal Schottky Diode, Dual Common Cathode, 40 V, 120 Ma, 1 V, 200 Ma, 150 C Rohs Compliant: Yes |Nexperia BAS40-05V,115 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.1040 / $0.1120 | Buy Now |
|
DISTI #
1727-1559-1-ND
|
DigiKey | DIODE ARR SCHOT 40V 120MA SOT666 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7989 In Stock |
|
$0.0625 / $0.3100 | Buy Now |
|
DISTI #
BAS40-05V,115
|
Avnet Americas | Diode Schottky 40V 0.12A 6-Pin SOT-666 T/R - Tape and Reel (Alt: BAS40-05V,115) RoHS: Compliant Min Qty: 12000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0568 / $0.0588 | Buy Now |
|
DISTI #
771-BAS40-05V115
|
Mouser Electronics | Schottky Diodes & Rectifiers General-purpose dual Schottky diode RoHS: Compliant | 7707 |
|
$0.0620 / $0.3100 | Buy Now |
|
DISTI #
87175734
|
Verical | Diode Schottky 0.12A 6-Pin SOT-666 T/R RoHS: Compliant Min Qty: 373 Package Multiple: 1 | Americas - 3549 |
|
$0.0873 / $0.1480 | Buy Now |
|
|
Future Electronics | BAS40 Series 40 V 120 mA Surface Mount General Purpose Schottky Diode - SOT-666 Min Qty: 4000 Package Multiple: 4000 |
28000 null |
|
$0.0609 / $0.0645 | Buy Now |
|
DISTI #
BAS40-05V,115
|
Avnet Asia | Diode Schottky 40V 0.12A 6-Pin SOT-666 T/R (Alt: BAS40-05V,115) RoHS: Compliant Min Qty: 12000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days | 24000 |
|
$0.0594 / $0.0697 | Buy Now |
|
DISTI #
BAS40-05V,115
|
Avnet Silica | Diode Schottky 40V 012A 6Pin SOT666 TR (Alt: BAS40-05V,115) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BAS40-05V,115
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 25 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 3500 |
|
$0.0600 / $0.2020 | Buy Now |
Part Details for BAS40-05V,115

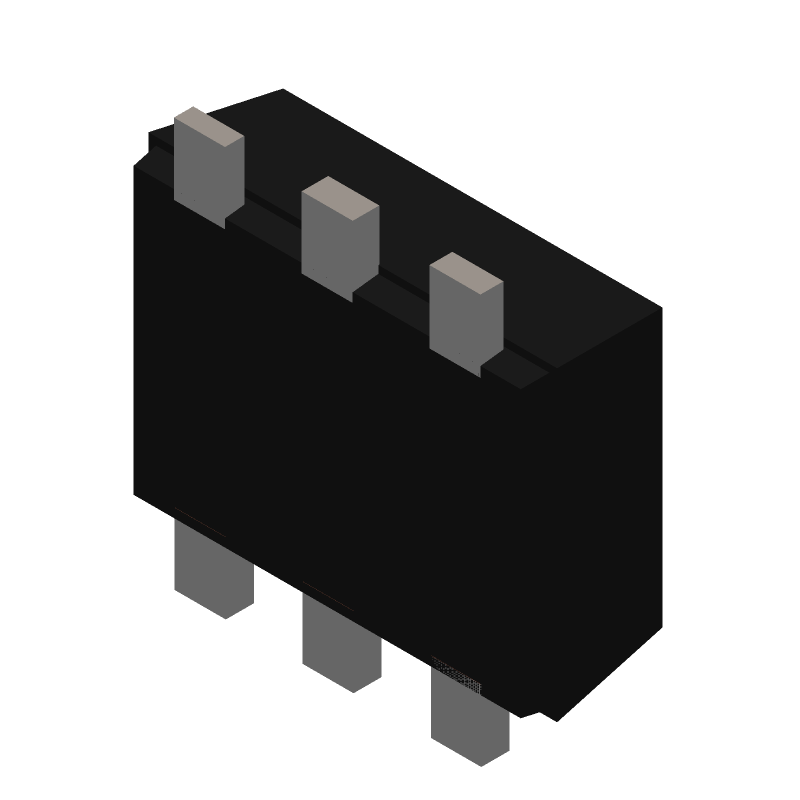

BAS40-05V,115 CAD Models
BAS40-05V,115 Part Data Attributes
|
|
BAS40-05V,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BAS40-05V,115
Nexperia
BAS40-05V - General-purpose quadruple Schottky diode@en-us SOT 6-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOT | |
| Package Description | PLASTIC PACKAGE-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | SOT666 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1999-04-26 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOW LEAKAGE CURRENT | |
| Application | GENERAL PURPOSE | |
| Configuration | 2 BANKS, COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| JESD-30 Code | R-PDSO-F6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 4 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 0.12 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-60134 | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
BAS40-05V,115 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for BAS40-05V,115 is -55°C to 150°C.
-
Yes, BAS40-05V,115 is suitable for high-frequency applications due to its low capacitance and high switching speed.
-
Yes, BAS40-05V,115 can be used in switching power supplies due to its high voltage rating and low reverse recovery time.
-
Yes, BAS40-05V,115 is compatible with lead-free soldering and meets the requirements of the RoHS directive.
-
The typical junction-to-ambient thermal resistance of BAS40-05V,115 is around 200°C/W.
