Part Details for BAS40-05T-7-F by Diodes Incorporated

Results Overview of BAS40-05T-7-F by Diodes Incorporated

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

BAS40-05T-7-F Information

BAS40-05T-7-F by Diodes Incorporated is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for BAS40-05T-7-F

Part # Distributor Description Stock Price Buy
DISTI # 09AH8606
Newark Schottky Diode Sot523 T&r 3K Rohs Compliant: Yes |Diodes Inc. BAS40-05T-7-F RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.0480
$0.0480 Buy Now
DISTI # BAS40-05TFDICT-ND
DigiKey DIODE ARR SCHOT 40V 200MA SOT523 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 27029
In Stock
  • 1 $0.2900
  • 10 $0.1930
  • 100 $0.1543
  • 500 $0.1271
  • 1,000 $0.1023
  • 3,000 $0.1257
  • 6,000 $0.1206
  • 9,000 $0.0738
  • 15,000 $0.0691
  • 21,000 $0.0664
  • 30,000 $0.0637
  • 75,000 $0.0578
$0.0578 / $0.2900 Buy Now
DISTI # BAS40-05T-7-F
Avnet Americas Schottky Rectifier, 40 V, 40 mA, Dual Common Cathode, SOT-523, 3 Pins, 1 V - Tape and Reel (Alt: BAS40-05T-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel 6000
18000 Factory Stock
  • 3,000 $0.0480
  • 6,000 $0.0478
  • 12,000 $0.0475
  • 18,000 $0.0473
  • 24,000 $0.0470
$0.0470 / $0.0480 Buy Now
DISTI # BAS40-05T-7-F
Avnet Americas Schottky Rectifier, 40 V, 40 mA, Dual Common Cathode, SOT-523, 3 Pins, 1 V - Tape and Reel (Alt: BAS40-05T-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel 18000 Factory Stock
  • 3,000 $0.0497
  • 6,000 $0.0488
  • 12,000 $0.0480
  • 18,000 $0.0473
  • 24,000 $0.0465
$0.0465 / $0.0497 Buy Now
DISTI # 621-BAS40-05T-F
Mouser Electronics Schottky Diodes & Rectifiers 40V 150mW RoHS: Compliant 11817
  • 1 $0.2900
  • 10 $0.1930
  • 100 $0.1550
  • 500 $0.1380
  • 3,000 $0.1290
  • 6,000 $0.1260
$0.1260 / $0.2900 Buy Now
DISTI # 70437594
RS Diode Schottky 0.2A 40V SOT523 Min Qty: 25 Package Multiple: 1 Container: Bulk 0
  • 25 $0.2250
  • 250 $0.2130
  • 1,250 $0.2020
  • 2,500 $0.1910
$0.1910 / $0.2250 RFQ
Bristol Electronics   2900
RFQ
Bristol Electronics   40
RFQ
DISTI # BAS40-05T-7-F
TME Diode: Schottky rectifying, SOT523, SMD, 40V, 0.2A, 5ns, reel,tape Min Qty: 1 0
  • 1 $0.3210
  • 10 $0.2370
  • 25 $0.1910
  • 100 $0.1330
  • 500 $0.0930
  • 1,000 $0.0830
  • 3,000 $0.0720
$0.0720 / $0.3210 RFQ
DISTI # BAS40-05T-7-F
Avnet Silica Schottky Rectifier 40 V 40 mA Dual Common Cathode SOT523 3 Pins 1 V (Alt: BAS40-05T-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Silica - 0
Buy Now
Vyrian Diodes 23214
RFQ

Part Details for BAS40-05T-7-F

BAS40-05T-7-F CAD Models

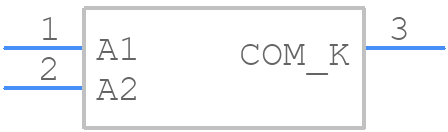

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BAS40-05T-7-F Part Data Attributes

Parametric Data
BAS40-05T-7-F Diodes Incorporated
Buy Now Datasheet
Compare Parts:
BAS40-05T-7-F Diodes Incorporated Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, GREEN, ULTRA SMALL, PLASTIC PACKAGE-3
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer DIODES INC
Package Description GREEN, ULTRA SMALL, PLASTIC PACKAGE-3
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.70
Factory Lead Time 12 Weeks
Samacsys Manufacturer Diodes Incorporated
Additional Feature FAST SWITCHING
Application GENERAL PURPOSE
Configuration COMMON CATHODE, 2 ELEMENTS
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 0.38 V
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 0.6 A
Number of Elements 2
Number of Terminals 3
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output Current-Max 0.2 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Power Dissipation-Max 0.15 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 40 V
Reverse Recovery Time-Max 0.005 µs
Surface Mount YES
Technology SCHOTTKY
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
