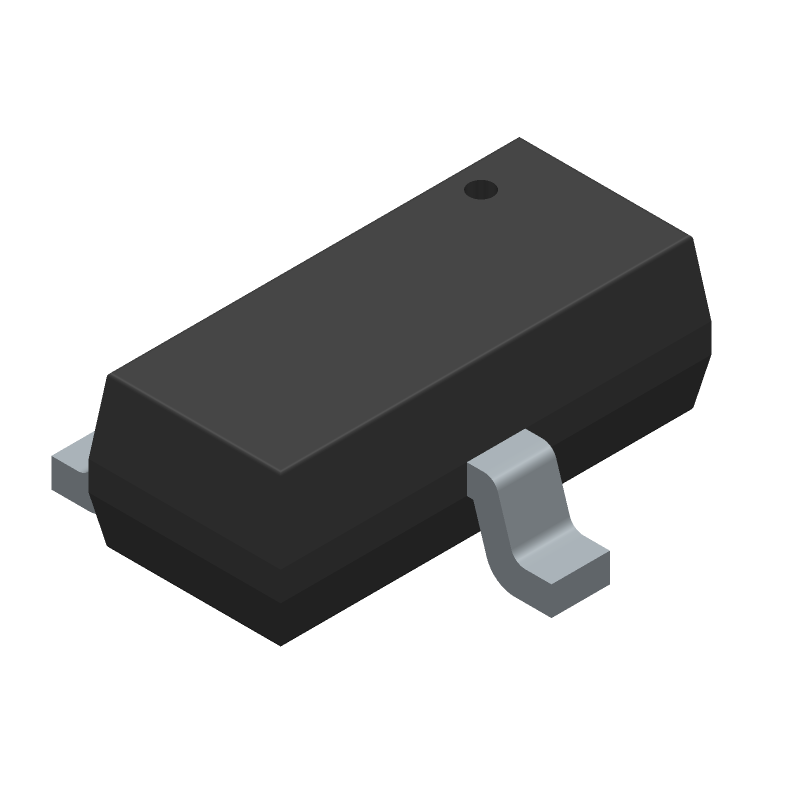

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAS40-05-V-GS08 by Vishay Intertechnologies
Results Overview of BAS40-05-V-GS08 by Vishay Intertechnologies
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BAS40-05-V-GS08 Information
BAS40-05-V-GS08 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAS40-05-V-GS08
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
19M9370
|
Newark | Rectifier Diodes, common Cathode, schottky,40V V(Rrm),sot-23 |Vishay BAS40-05-V-GS08 RoHS: Not Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
|
Bristol Electronics | 2988 |
|
RFQ | ||
|
|
Quest Components | RECTIFIER DIODE, SCHOTTKY, 2 ELEMENT, 0.2A, 40V V(RRM), SILICON | 1307 |
|
$0.3000 / $1.0000 | Buy Now |
Part Details for BAS40-05-V-GS08
BAS40-05-V-GS08 CAD Models
BAS40-05-V-GS08 Part Data Attributes
|
|
BAS40-05-V-GS08
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
BAS40-05-V-GS08
Vishay Intertechnologies
Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | ROHS COMPLIANT PACKAGE-3 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Vishay | |
| Application | GENERAL PURPOSE | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.38 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 0.6 A | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 125 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Power Dissipation-Max | 0.2 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Reverse Recovery Time-Max | 0.005 µs | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL |
Alternate Parts for BAS40-05-V-GS08
This table gives cross-reference parts and alternative options found for BAS40-05-V-GS08. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAS40-05-V-GS08, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BAS40-05-V-GS18 | Vishay Semiconductors | Check for Price | Diode Small Signal Schottky 40V 0.2A 3-Pin SOT-23 T/R | BAS40-05-V-GS08 vs BAS40-05-V-GS18 |
| BAS40-05-V-GS08 | Vishay Semiconductors | Check for Price | Diode Small Signal Schottky 40V 0.2A 3-Pin SOT-23 T/R | BAS40-05-V-GS08 vs BAS40-05-V-GS08 |
BAS40-05-V-GS08 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for BAS40-05-V-GS08 is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, the BAS40-05-V-GS08 is designed for high-frequency switching applications up to 1 GHz, making it suitable for RF and microwave circuits.
-
The maximum allowable voltage for the BAS40-05-V-GS08 in a reverse-biased condition is 40 V.
-
Yes, the BAS40-05-V-GS08 is qualified to AEC-Q101, making it suitable for use in automotive applications.
-
The typical junction capacitance of the BAS40-05-V-GS08 is around 0.5 pF.
