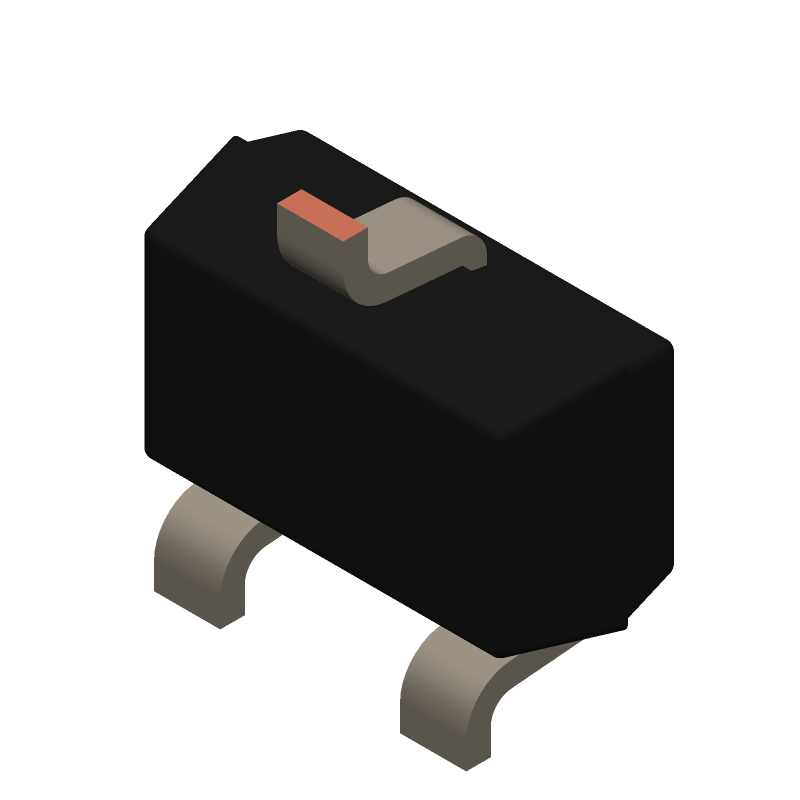

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAS40-04W by Nexperia
Results Overview of BAS40-04W by Nexperia
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BAS40-04W Information
BAS40-04W by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAS40-04W
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Cytech Systems Limited | 25000 |
|
RFQ |
Part Details for BAS40-04W
BAS40-04W CAD Models
BAS40-04W Part Data Attributes
|
|
BAS40-04W
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BAS40-04W
Nexperia
Rectifier Diode, Schottky, 2 Element, 0.12A, 40V V(RRM), Silicon
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Package Description | SC-70, SOT-323, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Date Of Intro | 1996-09-20 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOW LEAKAGE CURRENT | |
| Application | GENERAL PURPOSE | |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 0.2 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 0.12 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-60134 | |
| Rep Pk Reverse Voltage-Max | 40 V | |
| Reverse Current-Max | 10 µA | |
| Reverse Test Voltage | 40 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
BAS40-04W Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for BAS40-04W is a standard SOD323 package with a minimum pad size of 0.8 mm x 0.8 mm and a maximum pad size of 1.2 mm x 1.2 mm, with a non-solder mask defined (NSMD) pad shape.
-
To ensure reliable operation of BAS40-04W in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and minimizing power dissipation in the device.
-
Yes, BAS40-04W can be used in switching applications, but it is essential to ensure that the device is operated within its safe operating area (SOA) and that the switching frequency is within the recommended range to avoid overheating and premature failure.
-
To handle ESD protection when working with BAS40-04W, it is recommended to follow standard ESD handling practices, such as using an ESD wrist strap, ESD mat, or ESD bag, and ensuring that the device is stored in a protective package when not in use.
-
The recommended storage condition for BAS40-04W is in a dry, cool place with a temperature range of -40°C to 125°C and a relative humidity of 60% or less, in its original packaging or a protective package to prevent damage from moisture and physical stress.
