Diodes / Rectifier Diodes / BAS40-04,235
Datasheets
BAS40-04,235 by:

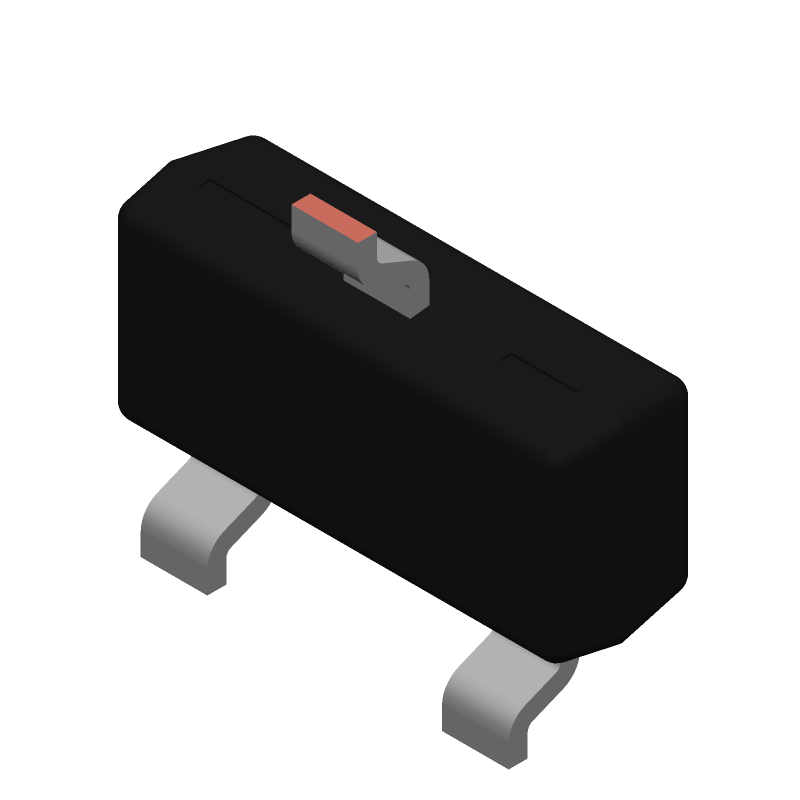

BAS40-04 - General-purpose dual Schottky diode@en-us TO-236 3-Pin

Part Details for BAS40-04,235 by Nexperia

Results Overview of BAS40-04,235 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

BAS40-04,235 Information

BAS40-04,235 by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for BAS40-04,235

Part # Distributor Description Stock Price Buy
DISTI # 1727-6376-1-ND
DigiKey DIODE ARR SCHOTTKY 40V TO-236AB Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 26489
In Stock
  • 1 $0.1200
  • 10 $0.0810
  • 100 $0.0654
  • 500 $0.0474
  • 1,000 $0.0384
  • 2,000 $0.0358
  • 5,000 $0.0290
  • 10,000 $0.0222
  • 20,000 $0.0220
  • 30,000 $0.0214
  • 50,000 $0.0211
  • 70,000 $0.0185
  • 100,000 $0.0173
$0.0173 / $0.1200 Buy Now
DISTI # BAS40-04,235
Avnet Americas Diode Schottky 40V 0.12A 3-Pin TO-236AB T/R - Tape and Reel (Alt: BAS40-04,235) RoHS: Compliant Min Qty: 50000 Package Multiple: 10000 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 50,000 $0.0157
  • 70,000 $0.0153
  • 120,000 $0.0149
  • 250,000 $0.0147
  • 500,000 $0.0143
$0.0143 / $0.0157 Buy Now
DISTI # 771-BAS40-04235
Mouser Electronics Schottky Diodes & Rectifiers General-purpose dual Schottky diode RoHS: Compliant 422245
  • 1 $0.1200
  • 10 $0.0810
  • 100 $0.0540
  • 500 $0.0430
  • 1,000 $0.0350
  • 2,500 $0.0310
  • 5,000 $0.0270
  • 10,000 $0.0220
$0.0220 / $0.1200 Buy Now
DISTI # P40:2555_25387444
Arrow Electronics Diode Schottky 0.12A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 4308 Package Multiple: 1 Europe - 239500
  • 4,308 $0.0305
  • 10,000 $0.0249
$0.0249 / $0.0305 Buy Now
DISTI # V36:1790_06512880
Arrow Electronics Diode Schottky 0.12A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 6 Weeks Date Code: 2504 Americas - 10000
  • 10,000 $0.0155
$0.0155 Buy Now
DISTI # 87887568
Verical Diode Schottky 0.12A 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Date Code: 2504 Americas - 10000
  • 10,000 $0.0155
$0.0155 Buy Now
DISTI # BAS40-04.235
TME Diode: Schottky rectifying, SOT23, SMD, 40V, 0.12A, reel,tape Min Qty: 1 9317
  • 1 $0.1750
  • 10 $0.1280
  • 20 $0.1059
  • 100 $0.0625
  • 500 $0.0383
  • 1,000 $0.0323
  • 2,500 $0.0282
$0.0282 / $0.1750 Buy Now
DISTI # BAS40-04,235
Avnet Asia Diode Schottky 40V 0.12A 3-Pin TO-236AB T/R (Alt: BAS40-04,235) RoHS: Compliant Min Qty: 40000 Package Multiple: 10000 Lead time: 6 Weeks, 0 Days 0
  • 40,000 $0.0421
  • 80,000 $0.0416
  • 120,000 $0.0410
  • 200,000 $0.0405
  • 400,000 $0.0395
  • 1,000,000 $0.0386
  • 2,000,000 $0.0377
$0.0377 / $0.0421 Buy Now
DISTI # BAS40-04,235
Avnet Silica Diode Schottky 40V 012A 3Pin TO236AB TR (Alt: BAS40-04,235) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days Silica - 340000
Buy Now
Cytech Systems Limited DIODE ARR SCHOTT 40V TO236AB 25000
RFQ
DISTI # BAS40-04,235
EBV Elektronik Diode Schottky 40V 012A 3Pin TO236AB TR (Alt: BAS40-04,235) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days EBV - 30000
Buy Now

Part Details for BAS40-04,235

BAS40-04,235 Part Data Attributes

Parametric Data
BAS40-04,235 Nexperia
Buy Now Datasheet
Compare Parts:
BAS40-04,235 Nexperia BAS40-04 - General-purpose dual Schottky diode@en-us TO-236 3-Pin
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NEXPERIA
Part Package Code TO-236
Package Description PLASTIC, SMD, 3 PIN
Pin Count 3
Manufacturer Package Code SOT23
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.70
Factory Lead Time 6 Weeks
Date Of Intro 1996-03-20
Samacsys Manufacturer Nexperia
Application GENERAL PURPOSE
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
JEDEC-95 Code TO-236AB
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 2
Number of Terminals 3
Operating Temperature-Max 150 °C
Output Current-Max 0.12 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Reference Standard IEC-60134
Rep Pk Reverse Voltage-Max 40 V
Surface Mount YES
Technology SCHOTTKY
Terminal Finish TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30

BAS40-04,235 Related Parts

BAS40-04,235 Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the BAS40-04,235 is -55°C to 150°C.

  • Yes, the BAS40-04,235 is suitable for high-frequency applications due to its low capacitance and high switching speed.

  • The typical reverse recovery time for the BAS40-04,235 is around 10-20 ns.

  • Yes, the BAS40-04,235 is suitable for use in switching power supplies due to its high switching speed and low losses.

  • Yes, the BAS40-04,235 is AEC-Q101 qualified, making it suitable for automotive applications.
