BAS40-02V-G3-08 by:

Rectifier Diode, Schottky, 1 Phase, 1 Element, 0.12A, 40V V(RRM), Silicon, SOD-523, 2 PIN

Part Details for BAS40-02V-G3-08 by Vishay Intertechnologies

Results Overview of BAS40-02V-G3-08 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

BAS40-02V-G3-08 Information

BAS40-02V-G3-08 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for BAS40-02V-G3-08

Part # Distributor Description Stock Price Buy
DISTI # 21AJ6505
Newark Schottky Diode, 40V, 0.12A, Sod-523, Diode Configuration:Single, Repetitive Peak Reverse Voltage:40V, Average Forward Current:120Ma, Forward Voltage Max:1V, Forward Surge Current:600Ma, Operating Temperature Max:125°C Rohs Compliant: Yes |Vishay BAS40-02V-G3-08 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 501
  • 1 $0.1800
  • 10 $0.1280
  • 25 $0.1110
  • 50 $0.0930
  • 100 $0.0760
$0.0760 / $0.1800 Buy Now
DISTI # 23AJ5578
Newark Schottky Diode Sod523 |Vishay BAS40-02V-G3-08 RoHS: Not Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 5,000 $0.0520
  • 10,000 $0.0460
  • 20,000 $0.0390
  • 30,000 $0.0320
$0.0320 / $0.0520 Buy Now
DISTI # BAS40-02V-G3-08
Avnet Americas Small Signal Schottky Diode, Single, 40 V, 120 mA, 1 V, 600 mA, 125 ?C - Tape and Reel (Alt: BAS40-02V-G3-08) RoHS: Not Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 8 Weeks, 0 Days Container: Reel 24000
  • 8,000 $0.0265
  • 16,000 $0.0260
  • 32,000 $0.0257
  • 48,000 $0.0254
  • 64,000 $0.0253
$0.0253 / $0.0265 Buy Now
DISTI # 21AJ6505
Avnet Americas Small Signal Schottky Diode, Single, 40 V, 120 mA, 1 V, 600 mA, 125 ?C - Product that comes on tape, but is not reeled (Alt: 21AJ6505) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 4 Days Container: Ammo Pack 145 Partner Stock
  • 1 $0.2040
  • 10 $0.1390
  • 25 $0.1160
  • 50 $0.0930
  • 100 $0.0700
$0.0700 / $0.2040 Buy Now
DISTI # 78-BAS40-02V-G3-08
Mouser Electronics Schottky Diodes & Rectifiers DIODE SCHOTTKY RoHS: Compliant 82455
  • 1 $0.1900
  • 10 $0.1250
  • 100 $0.0700
  • 500 $0.0560
  • 1,000 $0.0490
  • 2,500 $0.0470
  • 5,000 $0.0420
  • 8,000 $0.0370
  • 24,000 $0.0290
$0.0290 / $0.1900 Buy Now
DISTI # 87886928
Verical Diode Small Signal Schottky 40V 0.12A 2-Pin SOD-523 T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2507 Americas - 4000
  • 4,000 $0.0640
$0.0640 Buy Now
DISTI # BAS40-02V-G3-08
TTI Schottky Diodes & Rectifiers DIODE SCHOTTKY RoHS: Compliant pbFree: Pb-Free Min Qty: 8000 Package Multiple: 8000 Container: Reel Americas - 24000
In Stock
  • 8,000 $0.0275
  • 16,000 $0.0269
  • 24,000 $0.0264
  • 40,000 $0.0259
  • 64,000 $0.0254
$0.0254 / $0.0275 Buy Now
DISTI # BAS40-02V-G3-08
Avnet Asia Small Signal Schottky Diode, Single, 40 V, 120 mA, 1 V, 600 mA, 125 ?C (Alt: BAS40-02V-G3-08) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 10 Weeks, 0 Days 0
RFQ
DISTI # BAS40-02V-G3-08
EBV Elektronik Small Signal Schottky Diode Single 40 V 120 mA 1 V 600 mA 125 C (Alt: BAS40-02V-G3-08) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 9 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Diodes 44342
RFQ

Part Details for BAS40-02V-G3-08

BAS40-02V-G3-08 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

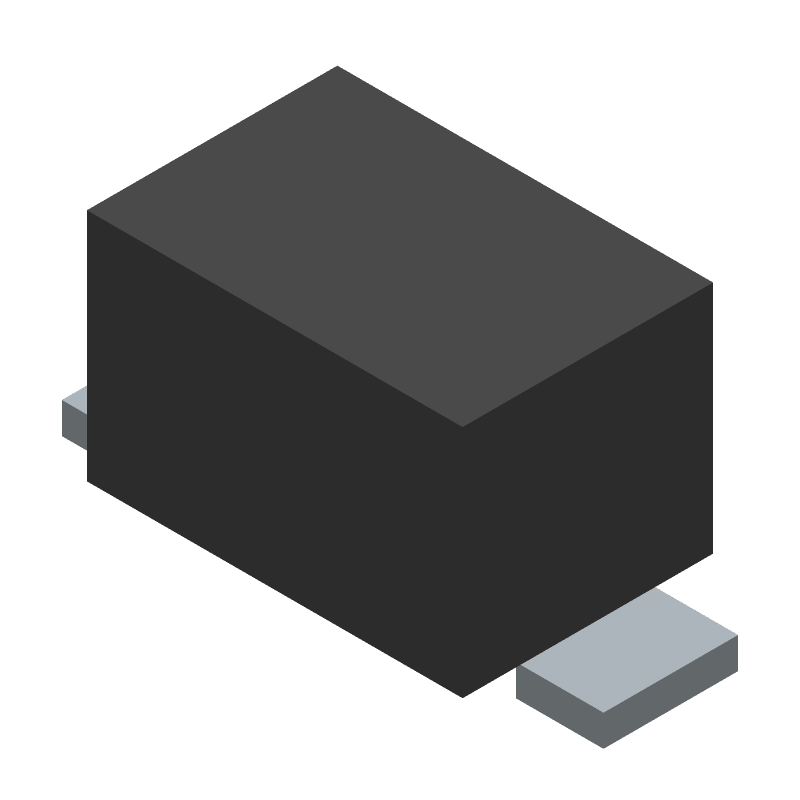

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BAS40-02V-G3-08 Part Data Attributes

Parametric Data
BAS40-02V-G3-08 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
BAS40-02V-G3-08 Vishay Intertechnologies Rectifier Diode, Schottky, 1 Phase, 1 Element, 0.12A, 40V V(RRM), Silicon, SOD-523, 2 PIN
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description SOD-523, 2 PIN
Reach Compliance Code compliant
Factory Lead Time 16 Weeks, 4 Days
Samacsys Manufacturer Vishay
Application FAST RECOVERY
Breakdown Voltage-Min 40 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 1 V
JESD-30 Code R-PDSO-F2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max 0.6 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output Current-Max 0.12 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Power Dissipation-Max 0.15 W
Rep Pk Reverse Voltage-Max 40 V
Reverse Current-Max 0.1 µA
Reverse Recovery Time-Max 0.005 µs
Reverse Test Voltage 30 V
Surface Mount YES
Technology SCHOTTKY
Terminal Finish Matte Tin (Sn)
Terminal Form FLAT
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
