BAS21PGX Information

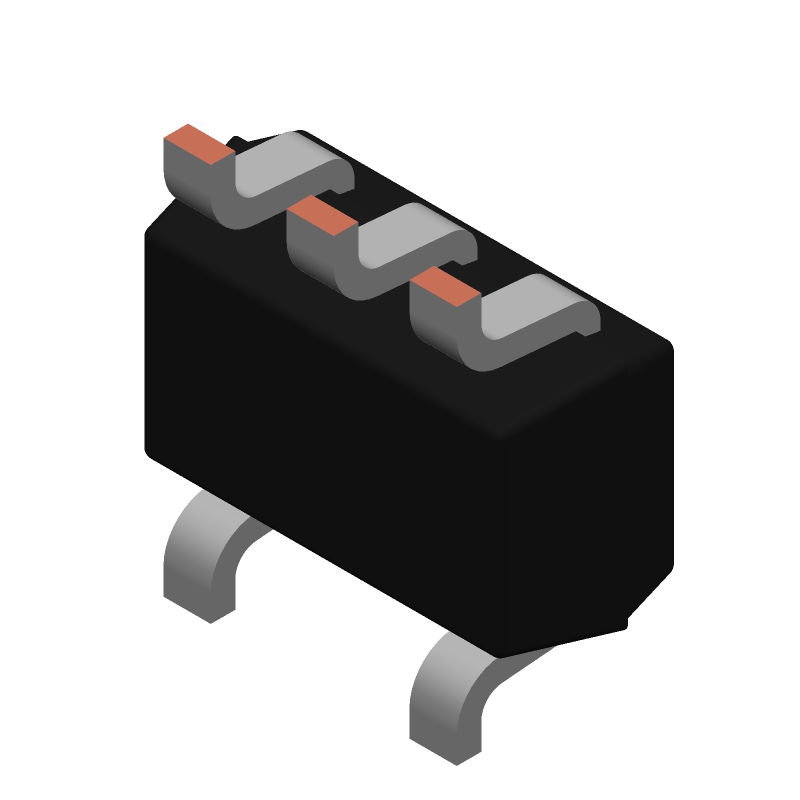

BAS21PGX by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for BAS21PGX

Part # Distributor Description Stock Price Buy
DISTI # 82Y6119
Newark Sw Diode, Aec-Q101, 250V, Sot-353-5, Diode Configuration:Dual Isolated, Repetitive Reverse Voltage Vrrm Max:-, Forward Current If(Av):-, Forward Voltage Vf Max:1.25V, Reverse Recovery Time Trr Max:50Ns, Forward Surge Current Ifsm Rohs Compliant: Yes |Nexperia BAS21PGX RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $0.2700
  • 10 $0.1830
  • 25 $0.1540
  • 50 $0.1240
  • 100 $0.0950
  • 250 $0.0920
  • 500 $0.0880
  • 1,000 $0.0850
$0.0850 / $0.2700 Buy Now
DISTI # 1727-BAS21PGXCT-ND
DigiKey DIODE ARRAY GP 250V 125MA 5TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 442
In Stock
  • 3,000 $0.0822
  • 6,000 $0.0703
  • 9,000 $0.0664
  • 15,000 $0.0622
  • 21,000 $0.0596
  • 30,000 $0.0575
$0.0575 / $0.0822 Buy Now
DISTI # BAS21PGX
Avnet Americas Diode Switching 250V 0.225A 5-Pin TSSOP T/R - Tape and Reel (Alt: BAS21PGX) RoHS: Compliant Min Qty: 15000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 15,000 $0.0500
  • 21,000 $0.0488
  • 36,000 $0.0471
  • 75,000 $0.0468
  • 150,000 $0.0457
$0.0457 / $0.0500 Buy Now
DISTI # 771-BAS21PGX
Mouser Electronics Small Signal Switching Diodes High-voltage switching diode RoHS: Compliant 30812
  • 1 $0.2600
  • 10 $0.1760
  • 100 $0.1240
  • 500 $0.1210
  • 1,000 $0.0920
  • 3,000 $0.0830
  • 6,000 $0.0740
  • 9,000 $0.0710
  • 24,000 $0.0680
$0.0680 / $0.2600 Buy Now
DISTI # 85966482
Verical Diode Switching 0.225A 5-Pin TSSOP T/R RoHS: Compliant Min Qty: 5017 Package Multiple: 1 Date Code: 2201 Americas - 6000
  • 5,017 $0.0748
$0.0748 Buy Now
Rochester Electronics BAS21PG - Rectifier Diode, 2 Element, 0.225A, 250V, UMT5 RoHS: Compliant Status: Active Min Qty: 1 6000
  • 100 $0.0598
  • 500 $0.0538
  • 1,000 $0.0496
  • 10,000 $0.0443
  • 100,000 $0.0371
$0.0371 / $0.0598 Buy Now
DISTI # BAS21PGX
TTI Small Signal Switching Diodes High-voltage switching diode RoHS: Compliant pbFree: Pb-Free Min Qty: 15000 Package Multiple: 3000 Container: Reel Americas - 0
  • 15,000 $0.0710
  • 24,000 $0.0690
  • 36,000 $0.0680
  • 75,000 $0.0670
  • 150,000 $0.0650
$0.0650 / $0.0710 Buy Now
DISTI # BAS21PGX
Avnet Asia Diode Switching 250V 0.225A 5-Pin TSSOP T/R (Alt: BAS21PGX) RoHS: Compliant Min Qty: 15000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days 0
  • 15,000 $0.0516
  • 30,000 $0.0509
  • 45,000 $0.0503
  • 75,000 $0.0496
  • 150,000 $0.0484
  • 375,000 $0.0472
  • 750,000 $0.0461
$0.0461 / $0.0516 Buy Now
DISTI # BAS21PGX
Avnet Silica Diode Switching 250V 0225A 5Pin TSSOP TR (Alt: BAS21PGX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # BAS21PGX
EBV Elektronik Diode Switching 250V 0225A 5Pin TSSOP TR (Alt: BAS21PGX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now

Part Details for BAS21PGX

BAS21PGX Part Data Attributes

Parametric Data
BAS21PGX Nexperia
Buy Now Datasheet
Compare Parts:
BAS21PGX Nexperia BAS21PG - Dual isolated high-voltage switching diode@en-us TSSOP 5-Pin
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NEXPERIA
Part Package Code TSSOP
Package Description SC-88A, TSSOP-5
Pin Count 5
Manufacturer Package Code SOT353
Reach Compliance Code compliant
Factory Lead Time 6 Weeks
Samacsys Manufacturer Nexperia
Application GENERAL PURPOSE
Configuration SEPARATE, 2 ELEMENTS
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
JESD-30 Code R-PDSO-G5
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 2
Number of Terminals 5
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Output Current-Max 0.225 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Power Dissipation-Max 0.255 W
Reference Standard IEC-60134
Rep Pk Reverse Voltage-Max 250 V
Reverse Recovery Time-Max 0.05 µs
Surface Mount YES
Terminal Finish TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
