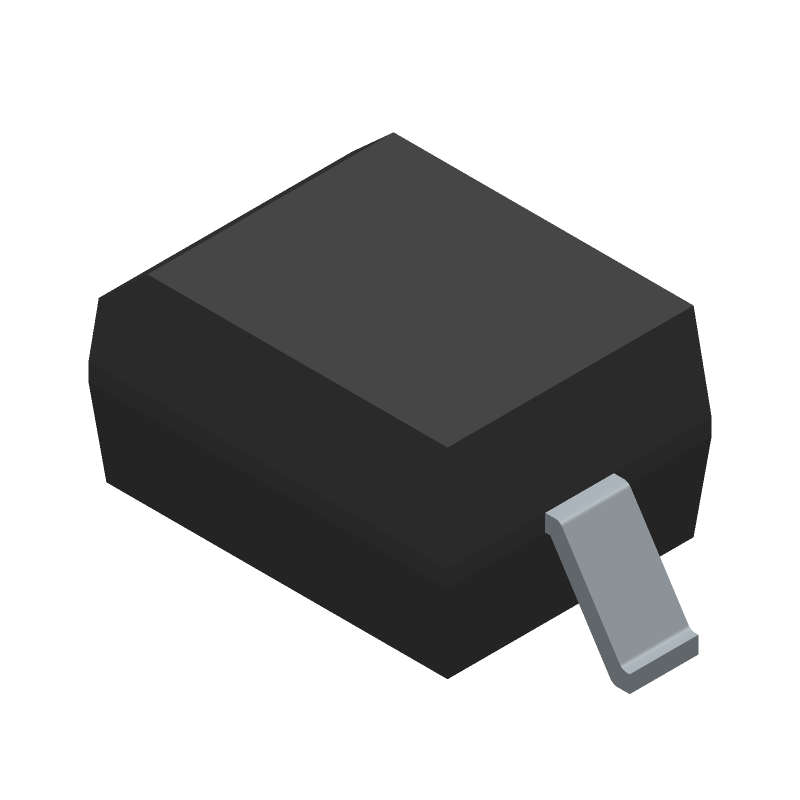

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAS21HT1 by onsemi
Results Overview of BAS21HT1 by onsemi
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Space Technology
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
BAS21HT1 Information
BAS21HT1 by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAS21HT1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BAS21HT1
|
Avnet Americas | - Tape and Reel (Alt: BAS21HT1) RoHS: Not Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
86093921
|
Verical | Diode Small Signal Switching 250V 0.2A 2-Pin SOD-323 T/R RoHS: Not Compliant Min Qty: 4539 Package Multiple: 1 Date Code: 1001 | Americas - 27191 |
|
$0.0826 | Buy Now |
|
|
Bristol Electronics | 5801 |
|
RFQ | ||
|
|
Bristol Electronics | 685 |
|
RFQ | ||
|
|
Quest Components | RECTIFIER DIODE,250V V(RRM),SOD-323 | 4528 |
|
$0.0105 / $0.1050 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE,250V V(RRM),SOD-323 | 16 |
|
$0.1452 | Buy Now |
|
|
Rochester Electronics | High Voltage Switching Diode RoHS: Compliant Status: Obsolete Min Qty: 1 | 27791 |
|
$0.0410 / $0.0661 | Buy Now |
|
|
Win Source Electronics | DIODE SWITCH 200MA 250V SOD323 | 349000 |
|
$0.0129 / $0.0193 | Buy Now |
Part Details for BAS21HT1
BAS21HT1 CAD Models
BAS21HT1 Part Data Attributes
|
|
BAS21HT1
onsemi
Buy Now
Datasheet
|
Compare Parts:
BAS21HT1
onsemi
250 V Switching Diode High Voltage, SOD-323 2 LEAD, 3000-REEL
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-323 2 LEAD | |
| Package Description | SOD-323, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 477-02 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Application | HIGH VOLTAGE | |
| Breakdown Voltage-Min | 250 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.25 V | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e0 | |
| Non-rep Pk Forward Current-Max | 2.5 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 235 | |
| Power Dissipation-Max | 0.2 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 250 V | |
| Reverse Current-Max | 0.1 µA | |
| Reverse Recovery Time-Max | 0.05 µs | |
| Reverse Test Voltage | 200 V | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Lead (Sn80Pb20) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for BAS21HT1
This table gives cross-reference parts and alternative options found for BAS21HT1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAS21HT1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BAV21WS | EIC Semiconductor Inc | Check for Price | Rectifier Diode, 1 Element, 0.25A, 250V V(RRM), | BAS21HT1 vs BAV21WS |
| BAV21WS-T | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Element, 0.2A, 200V V(RRM), | BAS21HT1 vs BAV21WS-T |
| NSVBAS21HT1 | onsemi | Check for Price | NSVBAS21HT1 | BAS21HT1 vs NSVBAS21HT1 |
| BAS20HT1G | onsemi | $0.0471 | Switching Diode, High Voltage, 200 V, SOD-323 2 LEAD, 3000-REEL | BAS21HT1 vs BAS20HT1G |
| BAS21HT1G | Zowie Technology Corp | Check for Price | Rectifier Diode, | BAS21HT1 vs BAS21HT1G |
| BAV21WS-G3-08 | Vishay Intertechnologies | Check for Price | Rectifier Diode, 1 Element, 0.2A, 250V V(RRM), Silicon, GREEN PACKAGE-2 | BAS21HT1 vs BAV21WS-G3-08 |
BAS21HT1 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BAS21HT1 is -65°C to 150°C.
-
Yes, the BAS21HT1 is suitable for high-frequency applications due to its low capacitance and high switching speed.
-
The typical reverse recovery time for the BAS21HT1 is around 10-20 ns.
-
Yes, the BAS21HT1 can be used in switching power supplies due to its high voltage and current ratings, as well as its fast switching speed.
-
No, the BAS21HT1 is not radiation-hardened. It is not designed for use in high-radiation environments.
