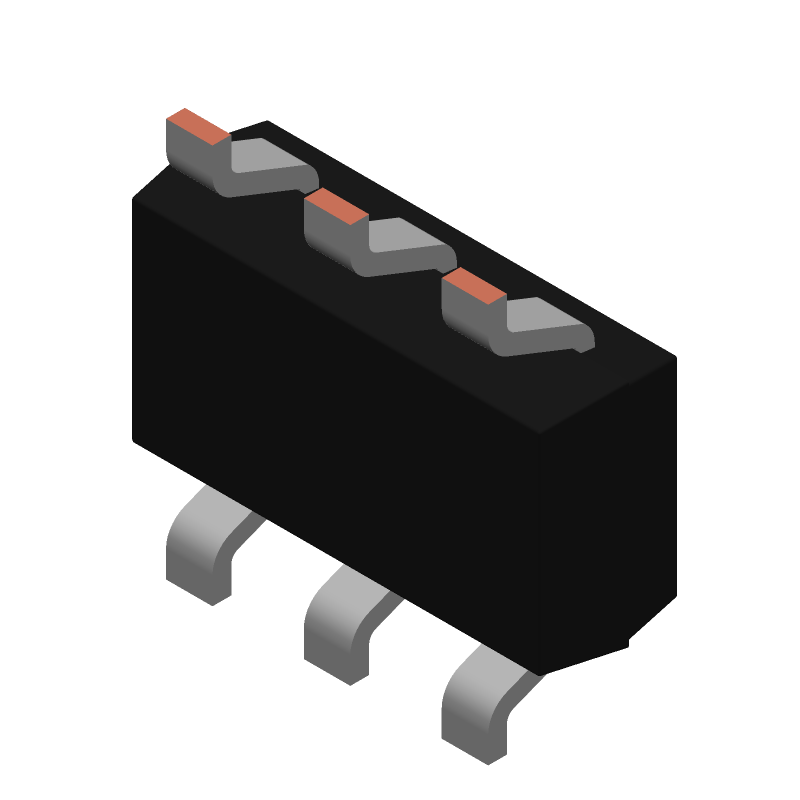

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAS21AVD,165 by Nexperia
Results Overview of BAS21AVD,165 by Nexperia
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Space Technology
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
BAS21AVD,165 Information
BAS21AVD,165 by Nexperia is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAS21AVD,165
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84Y9579
|
Newark | Sw Diode, Aec-Q101, 250V, 0.2A, Sot-457, Diode Configuration:Triple Isolated, Repetitive Reverse Voltage Vrrm Max:250V, Forward Current If(Av):200Ma, Forward Voltage Vf Max:1.25V, Reverse Recovery Time Trr Max:50Ns, Forward Surge Rohs Compliant: Yes |Nexperia BAS21AVD,165 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 57055 |
|
$0.1090 / $0.4000 | Buy Now |
|
DISTI #
1727-2081-1-ND
|
DigiKey | DIODE ARRAY GP 200V 200MA 6-TSOP Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
18874 In Stock |
|
$0.0720 / $0.4000 | Buy Now |
|
DISTI #
BAS21AVD,165
|
Avnet Americas | Diode Switching 250V 0.2A 6-Pin TSOP T/R - Tape and Reel (Alt: BAS21AVD,165) RoHS: Compliant Min Qty: 20000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0537 / $0.0588 | Buy Now |
|
DISTI #
771-BAS21AVD,165
|
Mouser Electronics | Small Signal Switching Diodes Triple high-voltage switching diodes RoHS: Compliant | 20648 |
|
$0.0790 / $0.4000 | Buy Now |
|
|
Future Electronics | BAS21 Series 250 V 200 mA Surface Mount High Speed Switching Diode - SC-74 RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks Container: Reel | 380000Reel |
|
$0.0587 / $0.0604 | Buy Now |
|
|
Future Electronics | BAS21 Series 250 V 200 mA Surface Mount High Speed Switching Diode - SC-74 RoHS: Compliant pbFree: Yes Min Qty: 20000 Package Multiple: 10000 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$0.0557 / $0.0577 | Buy Now |
|
DISTI #
88113478
|
Verical | Diode Switching 250V 0.2A 6-Pin TSOP T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Date Code: 2441 | Americas - 250000 |
|
$0.0805 / $0.1003 | Buy Now |
|
DISTI #
87073551
|
Verical | Diode Switching 250V 0.2A 6-Pin TSOP T/R RoHS: Compliant Min Qty: 3881 Package Multiple: 1 Date Code: 2201 | Americas - 10000 |
|
$0.0966 | Buy Now |
|
|
Rochester Electronics | BAS21AVD - Rectifier Diode, 3 Element, 250V, SC-74 RoHS: Compliant Status: Active Min Qty: 1 | 10000 |
|
$0.0479 / $0.0773 | Buy Now |
|
|
Future Electronics | BAS21 Series 250 V 200 mA Surface Mount High Speed Switching Diode - SC-74 Min Qty: 10000 Package Multiple: 10000 |
380000 null |
|
$0.0587 / $0.0604 | Buy Now |
Part Details for BAS21AVD,165
BAS21AVD,165 CAD Models
BAS21AVD,165 Part Data Attributes
|
|
BAS21AVD,165
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BAS21AVD,165
Nexperia
BAS21AVD - High-voltage switching diodes@en-us TSOP 6-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TSOP | |
| Package Description | PLASTIC, SC-74, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | SOT457 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Application | GENERAL PURPOSE | |
| Configuration | SEPARATE, 3 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 3 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.25 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-60134 | |
| Rep Pk Reverse Voltage-Max | 250 V | |
| Reverse Recovery Time-Max | 0.05 µs | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
BAS21AVD,165 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for BAS21AVD,165 is -55°C to 150°C.
-
To ensure reliability, it's essential to follow proper derating guidelines, use a suitable thermal interface material, and ensure good thermal conduction to a heat sink or PCB.
-
The maximum allowable power dissipation for BAS21AVD,165 is 500 mW. Exceeding this limit can lead to device failure.
-
Yes, BAS21AVD,165 can be used in switching applications, but it's essential to consider the device's switching characteristics, such as turn-on and turn-off times, to ensure reliable operation.
-
To prevent ESD damage, handle BAS21AVD,165 with ESD-protective equipment, such as wrist straps and mats, and follow proper handling and storage procedures.
