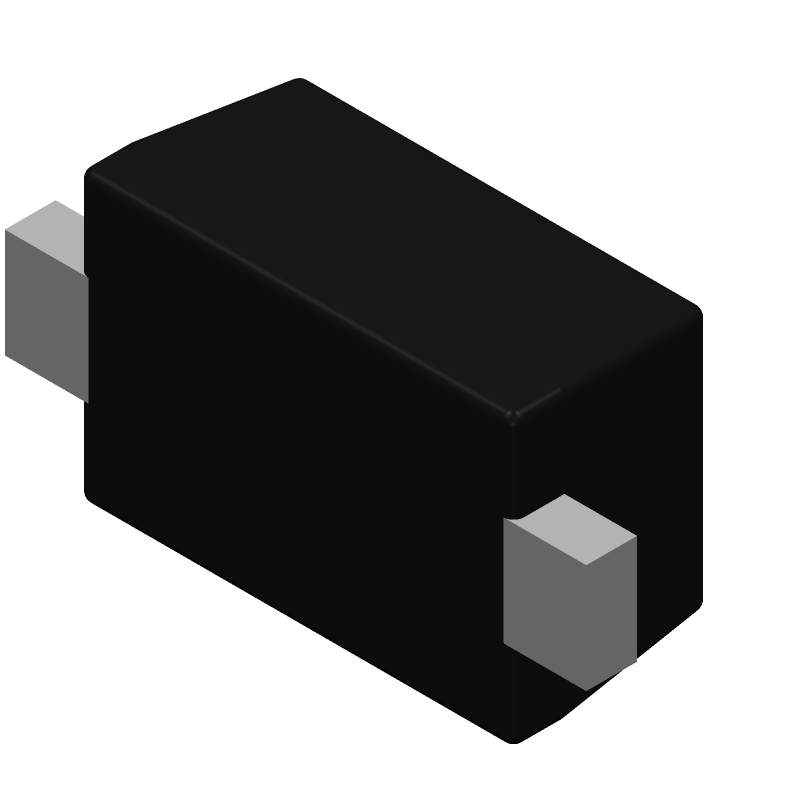

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAS16X-TP by Micro Commercial Components
Results Overview of BAS16X-TP by Micro Commercial Components
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BAS16X-TP Information
BAS16X-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAS16X-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
21AM9349
|
Newark | Small Signal Diode, 75V, 0.2A, Sod-523 Rohs Compliant: Yes |Micro Commercial Components BAS16X-TP RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 7800 |
|
$0.0410 / $0.1700 | Buy Now |
|
DISTI #
BAS16X-TPCT-ND
|
DigiKey | DIODE STANDARD 75V 200MA SOD523 Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
20116 In Stock |
|
$0.0173 / $0.1100 | Buy Now |
|
DISTI #
833-BAS16X-TP
|
Mouser Electronics | Small Signal Switching Diodes 200mA 75V RoHS: Compliant | 11270 |
|
$0.0230 / $0.1100 | Buy Now |
|
DISTI #
V72:2272_06828601
|
Arrow Electronics | Diode Switching 0.2A 2-Pin SOD-523 T/R RoHS: Compliant Min Qty: 4717 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2332 Container: Cut Strips | Americas - 5335 |
|
$0.0212 | Buy Now |
|
DISTI #
70731711
|
Verical | Diode Switching 0.2A 2-Pin SOD-523 T/R RoHS: Compliant Min Qty: 4717 Package Multiple: 1 Date Code: 2332 | Americas - 5335 |
|
$0.0212 | Buy Now |
|
DISTI #
BAS16X-TP
|
IBS Electronics | RECTIFIER DIODE SWITCHING 0.2A 6NS 2-PIN SOD-523 T/R Min Qty: 8000 Package Multiple: 1 | 0 |
|
$0.0276 / $0.0295 | Buy Now |
Part Details for BAS16X-TP
BAS16X-TP CAD Models
BAS16X-TP Part Data Attributes
|
|
BAS16X-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BAS16X-TP
Micro Commercial Components
Rectifier Diode, 1 Element, 0.2A, 75V V(RRM), Silicon, ROHS COMPLIANT, ULTRA SMALL, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Samacsys Manufacturer | MCC | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 0.5 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.15 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 75 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Recovery Time-Max | 0.006 µs | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for BAS16X-TP
This table gives cross-reference parts and alternative options found for BAS16X-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAS16X-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BAS16X | Lite-On Semiconductor Corporation | Check for Price | Rectifier Diode, 1 Element, 0.2A, Silicon, GREEN, PLASTIC PACKAGE-2 | BAS16X-TP vs BAS16X |
| BAS16X-TP-HF | Micro Commercial Components | Check for Price | Rectifier Diode, 1 Element, 0.2A, Silicon, HALOGEN FREE AND ROHS COMPLIANT, ULTRA SMALL, PLASTIC PACKAGE-2 | BAS16X-TP vs BAS16X-TP-HF |
BAS16X-TP Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BAS16X-TP is -55°C to 150°C.
-
Yes, the BAS16X-TP is suitable for high-frequency applications up to 4 GHz due to its low capacitance and high switching speed.
-
The maximum reverse voltage that the BAS16X-TP can withstand is 60V.
-
Yes, the BAS16X-TP is a fast-switching diode with a switching time of less than 10 ns.
-
The typical junction capacitance of the BAS16X-TP is around 1.5 pF.
