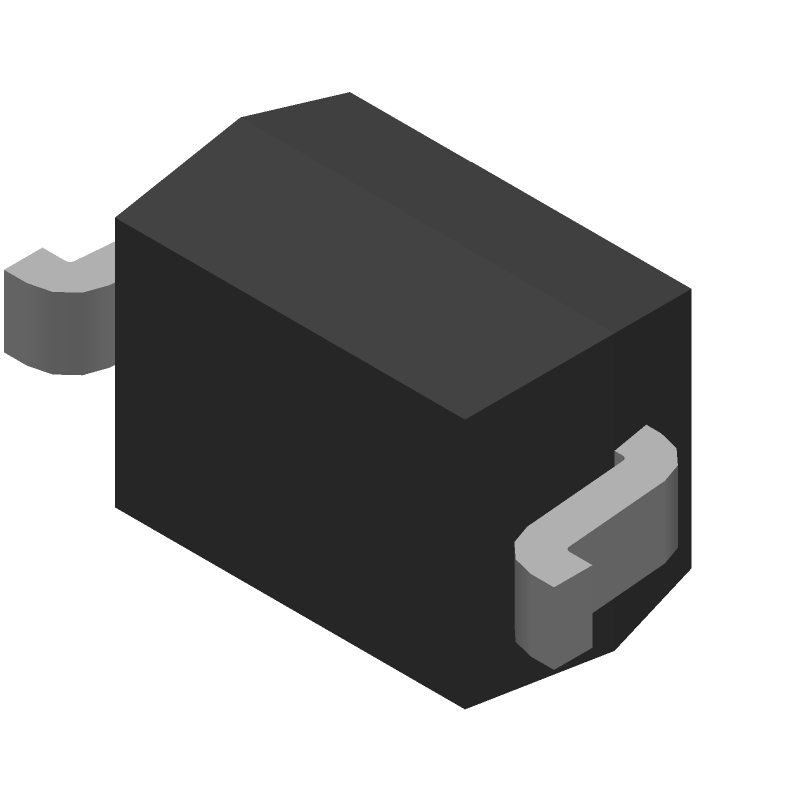

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAP64-03,115 by NXP Semiconductors
Results Overview of BAP64-03,115 by NXP Semiconductors
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
BAP64-03,115 Information
BAP64-03,115 by NXP Semiconductors is a PIN Diode.
PIN Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAP64-03,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
75R0660
|
Newark | Silicon Pin Diode, Diode Configuration:Single, Resistance @ If:0.7Ohm, Reverse Voltage:175V, Diode Case Style:Sod-323, No. Of Pins:2 Pin, Diode Capacitance:0.35Pf, Forward Current:100Ma, Operating Temperature Max:150°C Rohs Compliant: Yes |Nxp BAP64-03,115 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.1200 | Buy Now |
|
DISTI #
568-1930-1-ND
|
DigiKey | RF DIODE PIN 175V 500MW SOD-323 Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
9243 In Stock |
|
$0.0758 / $0.2100 | Buy Now |
|
DISTI #
BAP64-03,115
|
Avnet Americas | Diode PIN Attenuator/Switch 175V 2-Pin SOD-323 T/R - Tape and Reel (Alt: BAP64-03,115) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.0675 / $0.0697 | Buy Now |
|
DISTI #
771-BAP64-03-T/R
|
Mouser Electronics | PIN Diodes PIN 175V 100MA RoHS: Compliant | 8990 |
|
$0.0740 / $0.2100 | Buy Now |
|
DISTI #
BAP64-03.115
|
TME | Diode: switching, 175V, 100mA, 500mW, SOD323, single diode Min Qty: 1 | 2184 |
|
$0.0760 / $0.4110 | Buy Now |
|
DISTI #
BAP64-03-115
|
Richardson RFPD | RF PIN DIODE RoHS: Compliant Min Qty: 9000 | 0 |
|
$0.0800 | Buy Now |
|
DISTI #
BAP64-03,115
|
Avnet Silica | Diode PIN AttenuatorSwitch 175V 2Pin SOD323 TR (Alt: BAP64-03,115) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Chip Stock | 79268 |
|
RFQ | ||
|
DISTI #
BAP64-03,115
|
EBV Elektronik | Diode PIN AttenuatorSwitch 175V 2Pin SOD323 TR (Alt: BAP64-03,115) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for BAP64-03,115
BAP64-03,115 CAD Models
BAP64-03,115 Part Data Attributes
|
|
BAP64-03,115
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
BAP64-03,115
NXP Semiconductors
BAP64-03 - Silicon PIN diode SOD 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SOD | |
| Package Description | PLASTIC, SMD, SC-76, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD323 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | NXP | |
| Additional Feature | HIGH VOLTAGE | |
| Application | ATTENUATOR; SWITCHING | |
| Breakdown Voltage-Min | 175 V | |
| Configuration | SINGLE | |
| Diode Capacitance-Max | 0.35 pF | |
| Diode Capacitance-Nom | 0.52 pF | |
| Diode Element Material | SILICON | |
| Diode Forward Resistance-Max | 1.35 Ω | |
| Diode Res Test Current | 0.5 mA | |
| Diode Res Test Frequency | 100 MHz | |
| Diode Type | PIN DIODE | |
| Frequency Band | S BAND | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Minority Carrier Lifetime-Nom | 1.55 µs | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Technology | POSITIVE-INTRINSIC-NEGATIVE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for BAP64-03,115
This table gives cross-reference parts and alternative options found for BAP64-03,115. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAP64-03,115, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SMP1352-011 | Alpha Industries | Check for Price | Pin Diode, Silicon, PLASTIC, SOD-323, 2 PIN | BAP64-03,115 vs SMP1352-011 |
BAP64-03,115 Frequently Asked Questions (FAQ)
-
A symmetrical layout with a central ground plane and minimal track lengths is recommended. Ensure that the input and output tracks are separated and shielded to minimize electromagnetic interference (EMI).
-
Implement a robust thermal management system, such as a heat sink or thermal interface material, to maintain a junction temperature below 150°C. Ensure proper airflow and avoid thermal hotspots.
-
Handle the device with an anti-static wrist strap or mat. Store the device in an anti-static bag or container, and avoid touching the pins or leads. Follow standard ESD handling procedures.
-
Yes, the BAP64-03,115 is suitable for switching power supply applications. However, ensure that the device is properly biased and that the output is filtered to minimize electromagnetic interference (EMI).
-
Check the PCB layout, component values, and biasing conditions. Verify that the device is properly decoupled and that the input and output tracks are properly terminated. Consult the datasheet and application notes for guidance.
