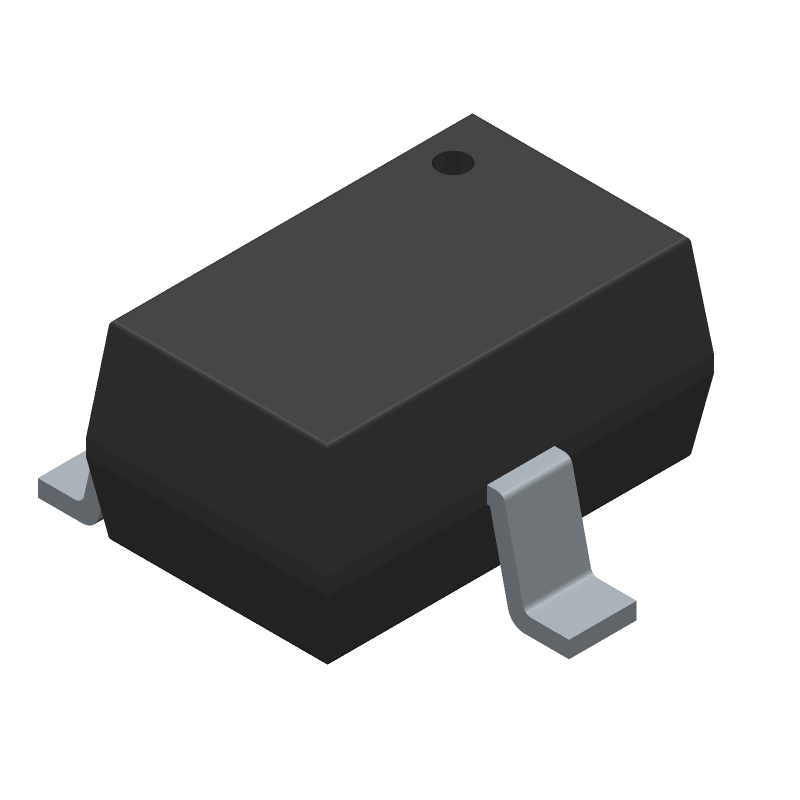

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAP51-06W by NXP Semiconductors
Results Overview of BAP51-06W by NXP Semiconductors
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Energy and Power Systems
Renewable Energy
Motor control systems
BAP51-06W Information
BAP51-06W by NXP Semiconductors is a PIN Diode.
PIN Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAP51-06W
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 2698 |
|
RFQ |
Part Details for BAP51-06W
BAP51-06W CAD Models
BAP51-06W Part Data Attributes
|
|
BAP51-06W
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
BAP51-06W
NXP Semiconductors
DIODE SILICON, PIN DIODE, PLASTIC, SC-70, 3 PIN, PIN Diode
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SC-70 | |
| Package Description | SC-70, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00 | |
| Samacsys Manufacturer | NXP | |
| Breakdown Voltage-Min | 50 V | |
| Configuration | COMMON ANODE, 2 ELEMENTS | |
| Diode Capacitance-Max | 0.55 pF | |
| Diode Capacitance-Nom | 0.4 pF | |
| Diode Element Material | SILICON | |
| Diode Forward Resistance-Max | 2.5 Ω | |
| Diode Res Test Current | 0.5 mA | |
| Diode Res Test Frequency | 100 MHz | |
| Diode Type | PIN DIODE | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Minority Carrier Lifetime-Nom | 0.55 µs | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.24 W | |
| Qualification Status | Not Qualified | |
| Reverse Test Voltage | ||
| Surface Mount | YES | |
| Technology | POSITIVE-INTRINSIC-NEGATIVE | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
