BAJ5CC0T by: ROHM Semiconductor

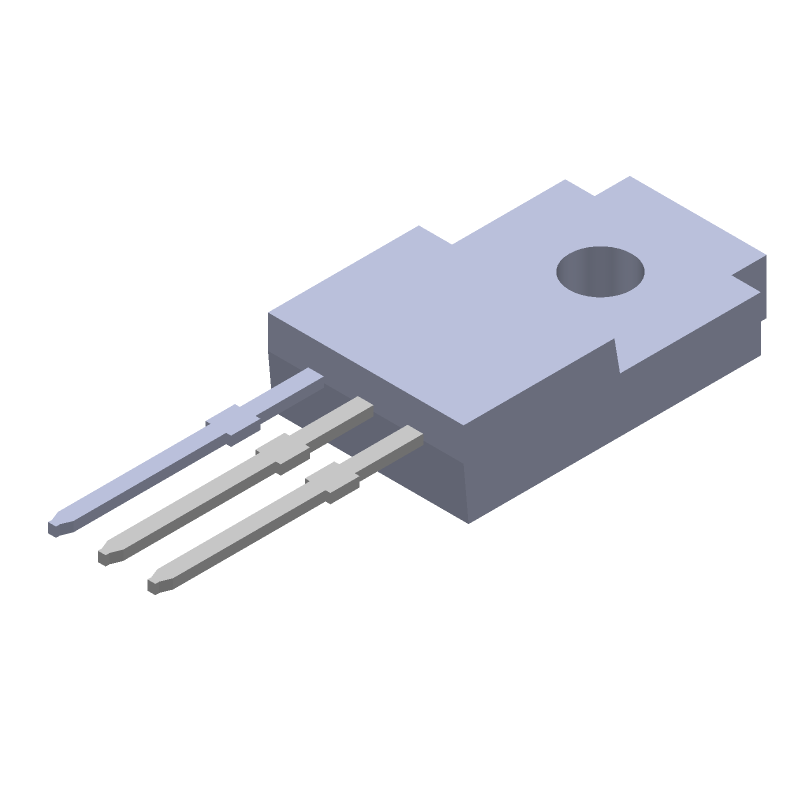

Fixed Positive LDO Regulator, 15V, 0.5V Dropout, BIPolar, TO-220FP, 3 PIN

Part Details for BAJ5CC0T by ROHM Semiconductor

Results Overview of BAJ5CC0T by ROHM Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

BAJ5CC0T Information

BAJ5CC0T by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
