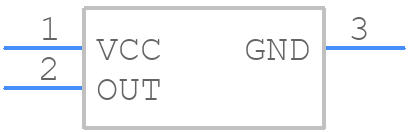

Part Symbol
-

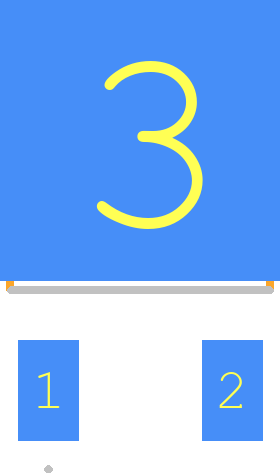

Footprint
-

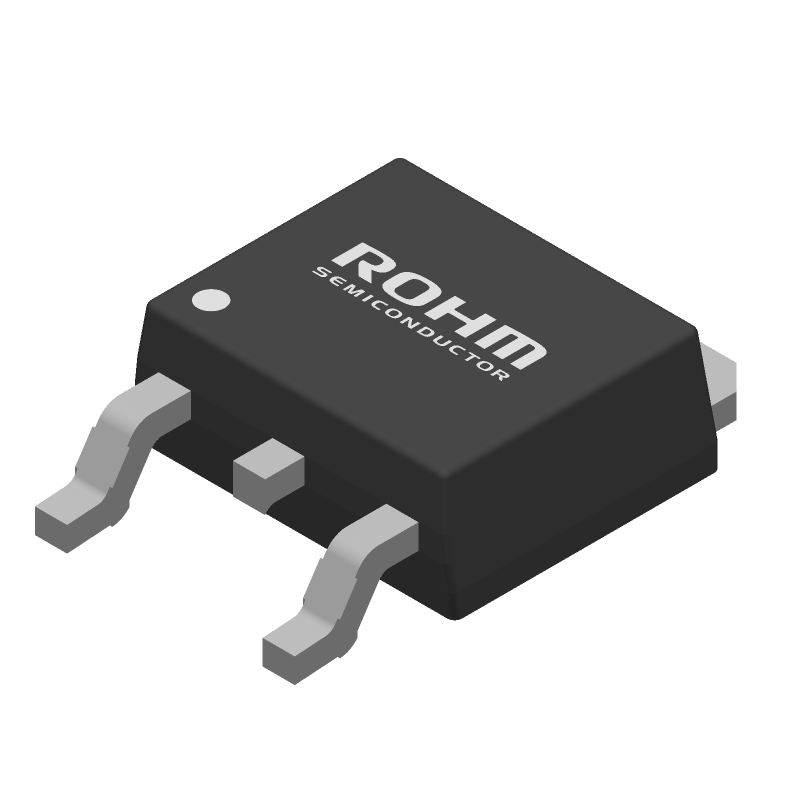

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAJ5CC0FP-E2 by ROHM Semiconductor
Results Overview of BAJ5CC0FP-E2 by ROHM Semiconductor
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BAJ5CC0FP-E2 Information
BAJ5CC0FP-E2 by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BAJ5CC0FP-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08X1168
|
Newark | Fixed Ldo Voltage Regulator, 4V To 25V, 300Mv Dropout, 15Vout, 1Aout, To-252-3 Rohs Compliant: Yes |Rohm BAJ5CC0FP-E2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1601 |
|
$0.6780 / $1.6000 | Buy Now |
|
DISTI #
BAJ5CC0FP-E2CT-ND
|
DigiKey | IC REG LINEAR 15V 1A TO252 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2868 In Stock |
|
$0.7211 / $1.5200 | Buy Now |
|
DISTI #
BAJ5CC0FP-E2
|
Avnet Americas | LDO Regulator Pos 15V 1A 3-Pin(2+Tab) TO-252 T/R - Tape and Reel (Alt: BAJ5CC0FP-E2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
755-BAJ5CC0FP-E2
|
Mouser Electronics | LDO Voltage Regulators REG 1A 15V RoHS: Compliant | 1795 |
|
$0.7050 / $1.5200 | Buy Now |
|
DISTI #
V72:2272_18338514
|
Arrow Electronics | LDO Regulator Pos 15V 1A 3-Pin(2+Tab) TO-252 T/R Min Qty: 1 Package Multiple: 1 Date Code: 1626 Container: Cut Strips | Americas - 1 |
|
$0.0166 | Buy Now |
|
DISTI #
82114854
|
Verical | LDO Regulator Pos 15V 1A 3-Pin(2+Tab) TO-252 T/R Min Qty: 67 Package Multiple: 1 Date Code: 2351 | Americas - 1076 |
|
$0.4220 / $0.4330 | Buy Now |
|
DISTI #
BAJ5CC0FP-E2
|
IBS Electronics | BAXXCCO SERIES 15 V 1 A 3 TERMINAL (2+, TAB) LDO REGULATOR - TO-252 Min Qty: 2000 Package Multiple: 1 | 0 |
|
$0.6565 / $0.6760 | Buy Now |
|
DISTI #
BAJ5CC0FP-E2
|
Avnet Silica | LDO Regulator Pos 15V 1A 3Pin2Tab TO252 TR (Alt: BAJ5CC0FP-E2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BAJ5CC0FP-E2
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1076 |
|
$0.3900 / $0.4450 | Buy Now |
|
|
LCSC | 55dB(120Hz) 1A Fixed 15V Positive electrode 25V TO-252 Voltage Regulators - Linear Low Drop Out (LDO) Regulators ROHS | 1414 |
|
$0.4994 / $0.6744 | Buy Now |
Part Details for BAJ5CC0FP-E2
BAJ5CC0FP-E2 CAD Models
BAJ5CC0FP-E2 Part Data Attributes
|
|
BAJ5CC0FP-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BAJ5CC0FP-E2
ROHM Semiconductor
Fixed Positive LDO Regulator, 15V, 0.5V Dropout, BIPolar, PSSO2, TO-252, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | TO-252 | |
| Package Description | TO-252, 3 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.5 V | |
| Dropout Voltage1-Nom | 0.3 V | |
| Input Voltage Absolute-Max | 35 V | |
| Input Voltage-Max | 25 V | |
| Input Voltage-Min | 4 V | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Line Regulation-Max | 0.1% | |
| Load Regulation-Max | 0.1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 15.3 V | |
| Output Voltage1-Min | 14.7 V | |
| Output Voltage1-Nom | 15 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-252 | |
| Package Equivalence Code | SMSIP3H,.38,90TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 2.5 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.3 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Voltage Tolerance-Max | 2% | |
| Width | 5.5 mm |
BAJ5CC0FP-E2 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the BAJ5CC0FP-E2 is -40°C to 125°C.
-
To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal management system to keep the junction temperature below 125°C.
-
The maximum allowable power dissipation for the BAJ5CC0FP-E2 is 1.5W. Exceeding this limit can cause the device to overheat and fail.
-
To prevent damage, it is recommended to handle the BAJ5CC0FP-E2 by the body, avoid touching the leads or die, and store the devices in a dry, cool place away from direct sunlight and moisture.
-
The recommended soldering conditions for the BAJ5CC0FP-E2 are a peak temperature of 260°C, a soldering time of 10 seconds or less, and a maximum of 3 reflows.
