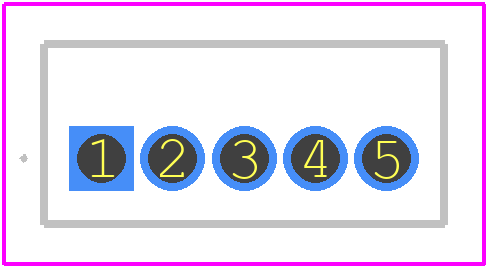

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAJ0CC0WT by ROHM Semiconductor
Results Overview of BAJ0CC0WT by ROHM Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BAJ0CC0WT Information
BAJ0CC0WT by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BAJ0CC0WT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
846-BAJ0CC0WT-ND
|
DigiKey | IC REG LINEAR 10V 1A TO220FP-5 Min Qty: 500 Lead time: 8 Weeks Container: Tube | Temporarily Out of Stock |
|
$1.4497 | Buy Now |
|
DISTI #
755-BAJ0CC0WT
|
Mouser Electronics | LDO Voltage Regulators LDO 1A REG. W/SHUT DOWN Fn. RoHS: Compliant | 330 |
|
$1.3100 / $3.9100 | Buy Now |
|
DISTI #
69917234
|
Verical | LDO Regulator Pos 10V 1A 5-Pin(5+Tab) TO-220FP Tube Min Qty: 59 Package Multiple: 1 Date Code: 2301 | Americas - 485 |
|
$2.0874 / $2.4010 | Buy Now |
|
DISTI #
85539436
|
Verical | LDO Regulator Pos 10V 1A 5-Pin(5+Tab) TO-220FP Tube Min Qty: 29 Package Multiple: 1 | Americas - 100 |
|
$2.3500 / $3.7500 | Buy Now |
|
|
Quest Components | 388 |
|
$1.4874 / $3.2160 | Buy Now | |
|
DISTI #
BAJ0CC0WT
|
Avnet Silica | LDO Regulator Pos 10V 1A 5Pin5Tab TO220FP Tube (Alt: BAJ0CC0WT) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for BAJ0CC0WT
BAJ0CC0WT CAD Models
BAJ0CC0WT Part Data Attributes
|
|
BAJ0CC0WT
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BAJ0CC0WT
ROHM Semiconductor
Fixed Positive LDO Regulator, 10V, 0.5V Dropout, BIPolar, TO-220FP, 5 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | TO-220FP | |
| Package Description | TO-220FP, 5 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.5 V | |
| Dropout Voltage1-Nom | 0.3 V | |
| Input Voltage Absolute-Max | 35 V | |
| Input Voltage-Max | 25 V | |
| Input Voltage-Min | 4 V | |
| JESD-30 Code | R-XSFM-T5 | |
| JESD-609 Code | e2 | |
| Line Regulation-Max | 0.1% | |
| Load Regulation-Max | 0.15% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 10.2 V | |
| Output Voltage1-Min | 9.8 V | |
| Output Voltage1-Nom | 10 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | SFM | |
| Package Equivalence Code | SIP5,.1,67TB | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | Tin/Copper (Sn/Cu) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 1.7 mm | |
| Terminal Position | SINGLE | |
| Voltage Tolerance-Max | 2% |
Alternate Parts for BAJ0CC0WT
This table gives cross-reference parts and alternative options found for BAJ0CC0WT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BAJ0CC0WT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TL751M10CKC | Texas Instruments | Check for Price | 10V FIXED POSITIVE LDO REGULATOR, 0.6V DROPOUT, PSFM5, TO-220AB, 5 PIN | BAJ0CC0WT vs TL751M10CKC |
