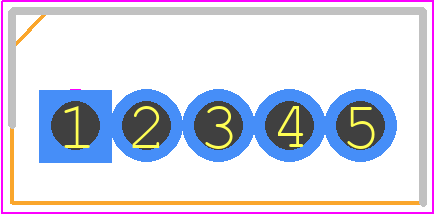

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BA90BC0WT by ROHM Semiconductor
Results Overview of BA90BC0WT by ROHM Semiconductor
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
BA90BC0WT Information
BA90BC0WT by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BA90BC0WT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BA90BC0WT-ND
|
DigiKey | IC REG LINEAR 9V 1A TO220FP-5 Min Qty: 1 Lead time: 6 Weeks Container: Tube | Temporarily Out of Stock |
|
$1.2935 / $2.5300 | Buy Now |
|
DISTI #
755-BA90BC0WT
|
Mouser Electronics | LDO Voltage Regulators REG 1A 9V RoHS: Compliant | 376 |
|
$1.1500 / $1.2200 | Buy Now |
|
DISTI #
42247207
|
Verical | LDO Regulator Pos 9V 1A 5-Pin(5+Tab) TO-220FP Tube Min Qty: 68 Package Multiple: 1 Date Code: 2001 | Americas - 500 |
|
$1.1150 / $1.2615 | Buy Now |
|
|
Quest Components | 400 |
|
$1.2765 / $2.7600 | Buy Now |
Part Details for BA90BC0WT
BA90BC0WT CAD Models
BA90BC0WT Part Data Attributes
|
|
BA90BC0WT
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BA90BC0WT
ROHM Semiconductor
Fixed Positive LDO Regulator, 9V, 0.5V Dropout, BIPolar, TO-220FP, 5 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | TO-220FP | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.5 V | |
| Dropout Voltage1-Nom | 0.3 V | |
| Input Voltage Absolute-Max | 18 V | |
| Input Voltage-Max | 16 V | |
| Input Voltage-Min | 10 V | |
| JESD-30 Code | R-XSFM-T5 | |
| JESD-609 Code | e2 | |
| Line Regulation-Max | 0.035% | |
| Load Regulation-Max | 0.075% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.2 A | |
| Output Voltage1-Max | 9.18 V | |
| Output Voltage1-Min | 8.82 V | |
| Output Voltage1-Nom | 9 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | SFM | |
| Package Equivalence Code | SIP5,.1,67TB | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | Tin/Copper (Sn/Cu) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 1.7 mm | |
| Terminal Position | SINGLE | |
| Voltage Tolerance-Max | 2% |
