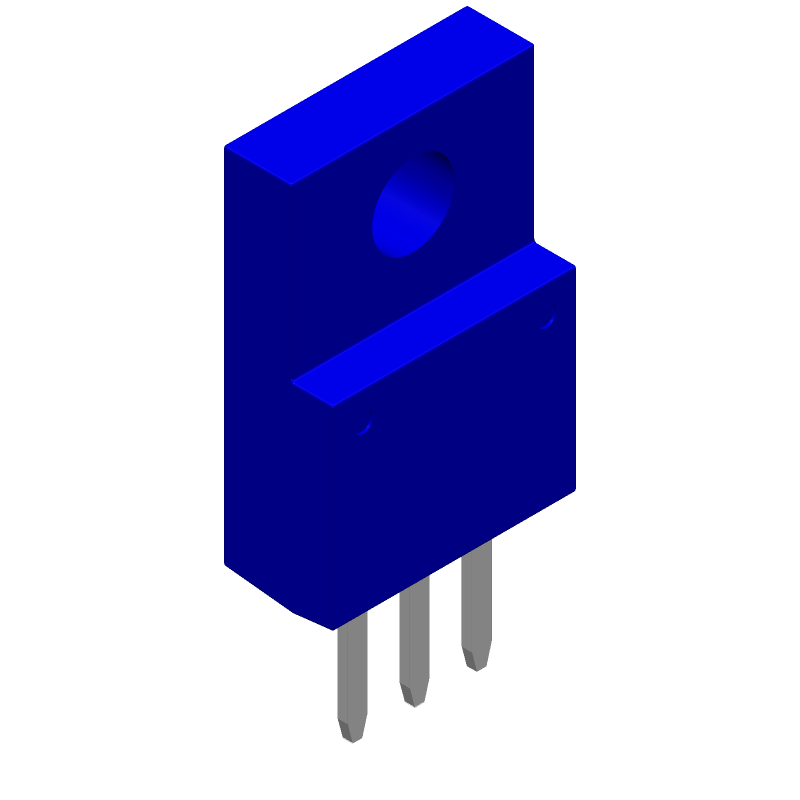

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BA78M05CP-E2 by ROHM Semiconductor
Results Overview of BA78M05CP-E2 by ROHM Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BA78M05CP-E2 Information
BA78M05CP-E2 by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BA78M05CP-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AH6377
|
Newark | Volt Reg, Fixed, 5V, 0.5A, -40 To 85Degc Rohs Compliant: Yes |Rohm BA78M05CP-E2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.6590 / $1.2100 | Buy Now |
|
DISTI #
BA78M05CP-E2CT-ND
|
DigiKey | IC REG LINEAR 5V 500MA TO220CP-3 Min Qty: 1 Lead time: 5 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
357 In Stock |
|
$0.6594 / $1.2100 | Buy Now |
|
DISTI #
755-BA78M05CP-E2
|
Mouser Electronics | Linear Voltage Regulators IC REG 7.5-25,VOUT 5 V 500MA RoHS: Compliant | 633 |
|
$0.6590 / $1.2100 | Buy Now |
|
DISTI #
60315455
|
Verical | Standard Regulator Pos 5V 0.5A 3-Pin(3+Tab) TO-220CP T/R Min Qty: 108 Package Multiple: 1 Date Code: 2001 | Americas - 388 |
|
$0.8849 | Buy Now |
|
DISTI #
86988418
|
Verical | Standard Regulator Pos 5V 0.5A 3-Pin(3+Tab) TO-220CP T/R Min Qty: 49 Package Multiple: 1 Date Code: 1801 | Americas - 49 |
|
$2.0384 | Buy Now |
|
|
Quest Components | 349 |
|
$0.8400 / $2.1000 | Buy Now |
Part Details for BA78M05CP-E2
BA78M05CP-E2 CAD Models
BA78M05CP-E2 Part Data Attributes
|
|
BA78M05CP-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BA78M05CP-E2
ROHM Semiconductor
Fixed Positive Standard Regulator, 5VBIPolar, ROHS COMPLIANT, TO-220, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | SFM | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 2 V | |
| Input Voltage Absolute-Max | 35 V | |
| Input Voltage-Max | 25 V | |
| Input Voltage-Min | 7.5 V | |
| JESD-30 Code | R-XSFM-T3 | |
| Line Regulation-Max | 0.1% | |
| Load Regulation-Max | 0.1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 0.35 A | |
| Output Voltage1-Max | 5.25 V | |
| Output Voltage1-Min | 4.75 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | SFM | |
| Package Equivalence Code | SIP3,.1TB | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 5% |
BA78M05CP-E2 Frequently Asked Questions (FAQ)
-
The maximum input voltage is 18V, but it's recommended to keep it below 15V for stable operation.
-
To ensure stability, use a 10uF or larger capacitor at the input and a 22uF or larger capacitor at the output, and keep the input voltage above 7V.
-
The minimum input voltage is 7V, but it's recommended to keep it above 8V for stable operation.
-
The BA78M05CP-E2 is rated for operation up to 125°C, but it's recommended to derate the output current at high temperatures to prevent overheating.
-
The BA78M05CP-E2 has built-in overcurrent protection, but it's recommended to add an external fuse or current limiter to prevent damage from excessive current.
