BA4580YF-MGE2 Information
BA4580YF-MGE2 by ROHM Semiconductor is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for BA4580YF-MGE2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BA4580YF-MGE2CT-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8SOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
46961 In Stock |
|
$0.2512 / $0.6400 | Buy Now |
|
DISTI #
755-BA4580YF-MGE2
|
Mouser Electronics | Operational Amplifiers - Op Amps Dual Sply Vltge 2Ch SOP8 2-16V RoHS: Compliant | 3351 |
|
$0.2510 / $0.6400 | Buy Now |
|
DISTI #
86984003
|
Verical | Op Amp Dual Low Noise Amplifier ±16V/32V Automotive 8-Pin SOP T/R Min Qty: 10 Package Multiple: 1 Date Code: 1301 | Americas - 10 |
|
$7.6336 | Buy Now |
|
|
Bristol Electronics | 8 |
|
RFQ | ||
|
DISTI #
BA4580YF-MGE2
|
TME | IC: operational amplifier Min Qty: 1 | 0 |
|
$0.2340 / $0.5490 | RFQ |
|
DISTI #
BA4580YF-MGE2
|
Avnet Silica | Operational Amplifier Low Noise Dual 4MHz 5Vs Slew Rate 16V 8Pin SOP Emboss TR (Alt: BA4580YF-MGE2) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 2500 | 7500 |
|
$0.3245 | Buy Now |
|
|
Vyrian | Amplifiers | 12187 |
|
RFQ |
Part Details for BA4580YF-MGE2

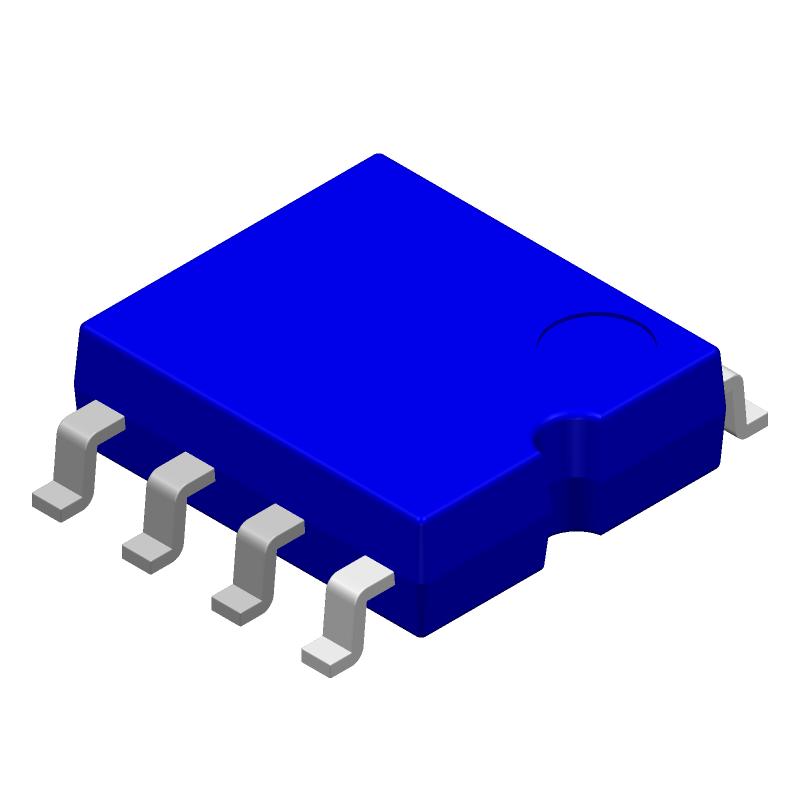

BA4580YF-MGE2 CAD Models
BA4580YF-MGE2 Part Data Attributes
|
|
BA4580YF-MGE2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BA4580YF-MGE2
ROHM Semiconductor
Operational Amplifier, 2 Func, 3000uV Offset-Max, BIPolar, PDSO8, 5 X 6.20 MM, 1.71 MM HEIGHT, ROHS COMPLIANT, SOP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | 5 X 6.20 MM, 1.71 MM HEIGHT, ROHS COMPLIANT, SOP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.5 µA | |
| Common-mode Reject Ratio-Nom | 110 dB | |
| Input Offset Voltage-Max | 3000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 5 mm | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.71 mm | |
| Slew Rate-Nom | 5 V/us | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Unity Gain BW-Nom | 10000 | |
| Width | 4.4 mm |
