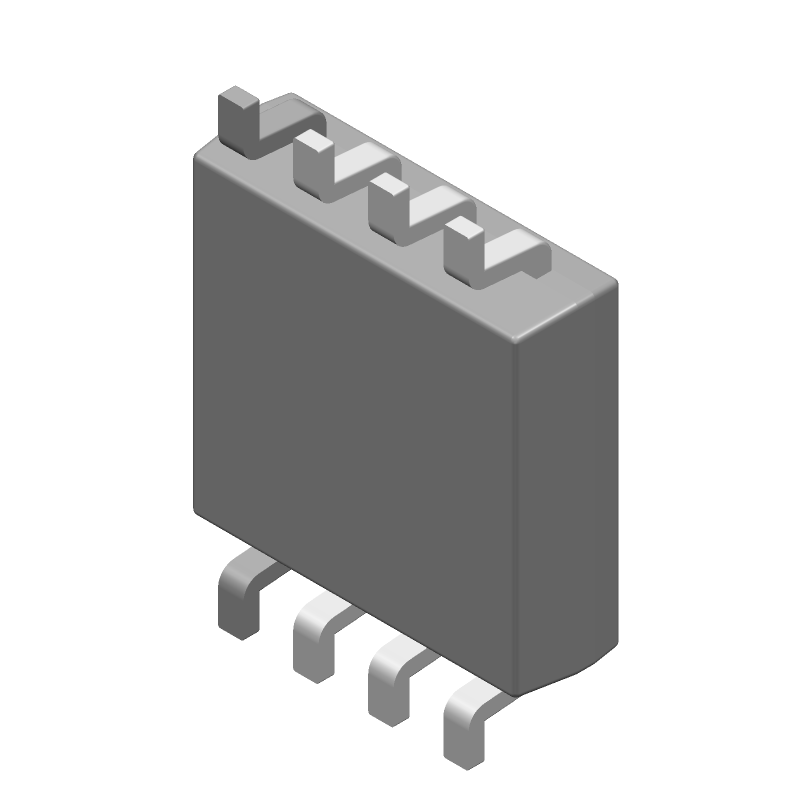

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BA4560YFVM-MGTR by ROHM Semiconductor
Results Overview of BA4560YFVM-MGTR by ROHM Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
BA4560YFVM-MGTR Information
BA4560YFVM-MGTR by ROHM Semiconductor is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for BA4560YFVM-MGTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02AC9581
|
Newark | Op-Amp, Aec-Q100, 4V/Us, Msop-8, No. Of Amplifiers:2 Amplifier, Bandwidth:-, Slew Rate:4V/Μs, Supply Voltage Range:± 4V To ± 15V, Amplifier Case Style:Msop, No. Of Pins:8Pins, Operating Temperature Min:-40°C, Operating Temperature Rohs Compliant: Yes |Rohm BA4560YFVM-MGTR RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5189 |
|
$0.3110 / $1.0600 | Buy Now |
|
DISTI #
BA4560YFVM-MGCT-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8MSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2884 In Stock |
|
$0.2080 / $0.5100 | Buy Now |
|
DISTI #
755-BA4560YFVM-MGTR
|
Mouser Electronics | Operational Amplifiers - Op Amps Dual Sply Vltge 2Ch MSOP8 4-15V RoHS: Compliant | 2864 |
|
$0.1950 / $1.0600 | Buy Now |
|
DISTI #
86986798
|
Verical | Op Amp Dual Low Noise Amplifier ±15V/30V Automotive 8-Pin MSOP T/R RoHS: Compliant Min Qty: 20 Package Multiple: 1 Date Code: 1601 | Americas - 20 |
|
$3.9370 | Buy Now |
|
DISTI #
BA4560YFVM-MGTR
|
TME | IC: operational amplifier Min Qty: 1 | 0 |
|
$0.1830 / $0.5410 | RFQ |
|
DISTI #
BA4560YFVM-MGTR
|
Avnet Silica | OP Amp Dual 4Vus 8V to 30V4V to 15V 8Pin MSOP Emboss TR (Alt: BA4560YFVM-MGTR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for BA4560YFVM-MGTR
BA4560YFVM-MGTR CAD Models
BA4560YFVM-MGTR Part Data Attributes
|
|
BA4560YFVM-MGTR
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BA4560YFVM-MGTR
ROHM Semiconductor
Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8, 2.90 X 4 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, MSOP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | 2.90 X 4 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, MSOP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.8 µA | |
| Common-mode Reject Ratio-Nom | 90 dB | |
| Input Offset Voltage-Max | 7000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 2.9 mm | |
| Neg Supply Voltage Limit-Max | -18 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 0.9 mm | |
| Slew Rate-Nom | 4 V/us | |
| Supply Voltage Limit-Max | 18 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Unity Gain BW-Nom | 4000 | |
| Width | 2.8 mm |
BA4560YFVM-MGTR Frequently Asked Questions (FAQ)
-
ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
-
To ensure stable operation with a high-ESR capacitor, add a 1-10nF ceramic capacitor in parallel with the output capacitor to reduce the overall ESR and improve stability.
-
The maximum allowed voltage on the EN pin is 6V, exceeding which may cause damage to the internal circuitry. A voltage limiter or a resistor divider network can be used to limit the voltage to a safe level.
-
While the BA4560YFVM-MGTR is rated for operation up to 105°C, it's essential to consider the derating of the output current and power dissipation at higher temperatures to ensure reliable operation.
-
To troubleshoot oscillations or instability issues, check the PCB layout for noise coupling, ensure proper decoupling capacitors are used, and verify that the input and output capacitors meet the recommended specifications.
