BA4510F-E2 Information
BA4510F-E2 by ROHM Semiconductor is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for BA4510F-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AH6357
|
Newark | Opamp, 10Mhz, -20 To 75Deg C, No. Of Amplifiers:2 Amplifier, Bandwidth:10Mhz, Slew Rate:5V/Μs, Supply Voltage Range:2V To 7V, ± 1V To ± 3.5V, Amplifier Case Style:Sop, No. Of Pins:8Pins, Operating Temperature Min:-20°C, Operating Rohs Compliant: Yes |Rohm BA4510F-E2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.3970 / $0.8700 | Buy Now |
|
DISTI #
BA4510F-E2CT-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8SOP Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2495 In Stock |
|
$0.3478 / $0.8000 | Buy Now |
|
DISTI #
755-BA4510F-E2
|
Mouser Electronics | Operational Amplifiers - Op Amps OPAMP DUAL RoHS: Compliant | 3705 |
|
$0.3400 / $0.8000 | Buy Now |
|
DISTI #
77265082
|
Verical | Op Amp Dual Low Noise Amplifier ±3.5V/7V 8-Pin SOP T/R RoHS: Compliant Min Qty: 108 Package Multiple: 1 Date Code: 2345 | Americas - 2380 |
|
$0.2810 / $0.6100 | Buy Now |
|
DISTI #
39222781
|
Verical | Op Amp Dual Low Noise Amplifier ±3.5V/7V 8-Pin SOP T/R RoHS: Compliant Min Qty: 168 Package Multiple: 1 Date Code: 1901 | Americas - 2094 |
|
$0.3816 / $0.4430 | Buy Now |
|
|
Quest Components | 1675 |
|
$0.4393 / $1.2550 | Buy Now | |
|
DISTI #
BA4510F-E2
|
TME | IC: operational amplifier Min Qty: 1 | 0 |
|
$0.1770 / $0.5260 | RFQ |
|
|
Ameya Holding Limited | IC OPAMP GP 10MHZ 8SOP Min Qty: 1 | 100-Authorized Distributor |
|
$0.3640 / $0.8100 | Buy Now |
|
DISTI #
BA4510F-E2
|
Avnet Silica | OP Amp Dual GP 35V7V 8Pin SOP TR (Alt: BA4510F-E2) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BA4510F-E2
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2380 |
|
$0.2270 / $0.6100 | Buy Now |
Part Details for BA4510F-E2

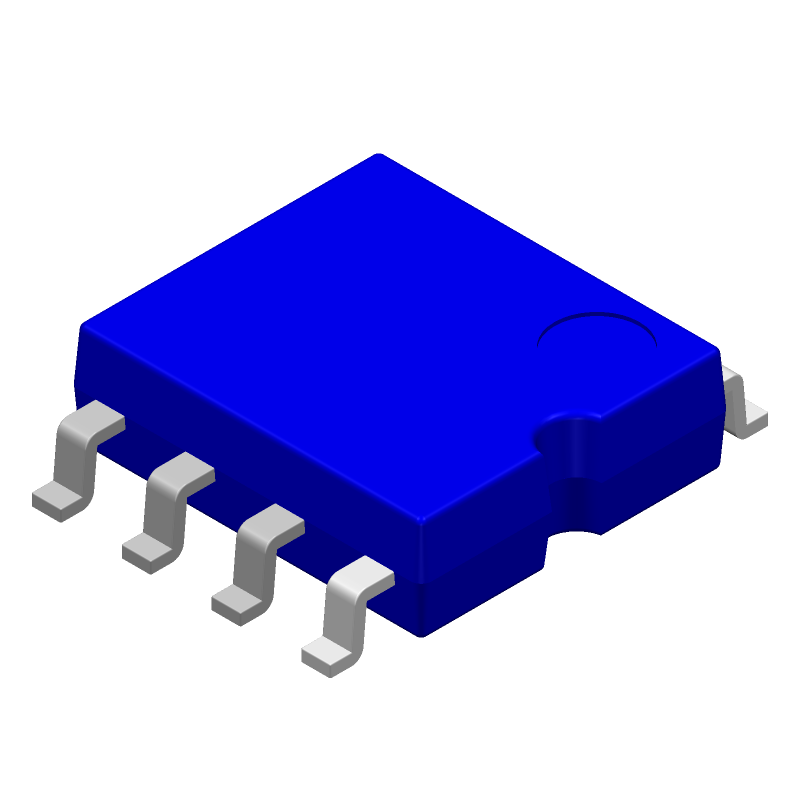

BA4510F-E2 CAD Models
BA4510F-E2 Part Data Attributes
|
|
BA4510F-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BA4510F-E2
ROHM Semiconductor
Operational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, PDSO8, ROHS COMPLIANT, SOP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | SOIC | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.5 µA | |
| Bias Current-Max (IIB) @25C | 0.5 µA | |
| Common-mode Reject Ratio-Min | 60 dB | |
| Common-mode Reject Ratio-Nom | 80 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 6000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e2 | |
| Length | 5 mm | |
| Low-Offset | NO | |
| Neg Supply Voltage Limit-Max | -5 V | |
| Neg Supply Voltage-Nom (Vsup) | -2.5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 75 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TAPE AND REEL | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.6 mm | |
| Slew Rate-Nom | 5 V/us | |
| Supply Current-Max | 7.5 mA | |
| Supply Voltage Limit-Max | 5 V | |
| Supply Voltage-Nom (Vsup) | 2.5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL EXTENDED | |
| Terminal Finish | Tin/Copper (Sn/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Voltage Gain-Min | 1000 | |
| Width | 4.4 mm |
