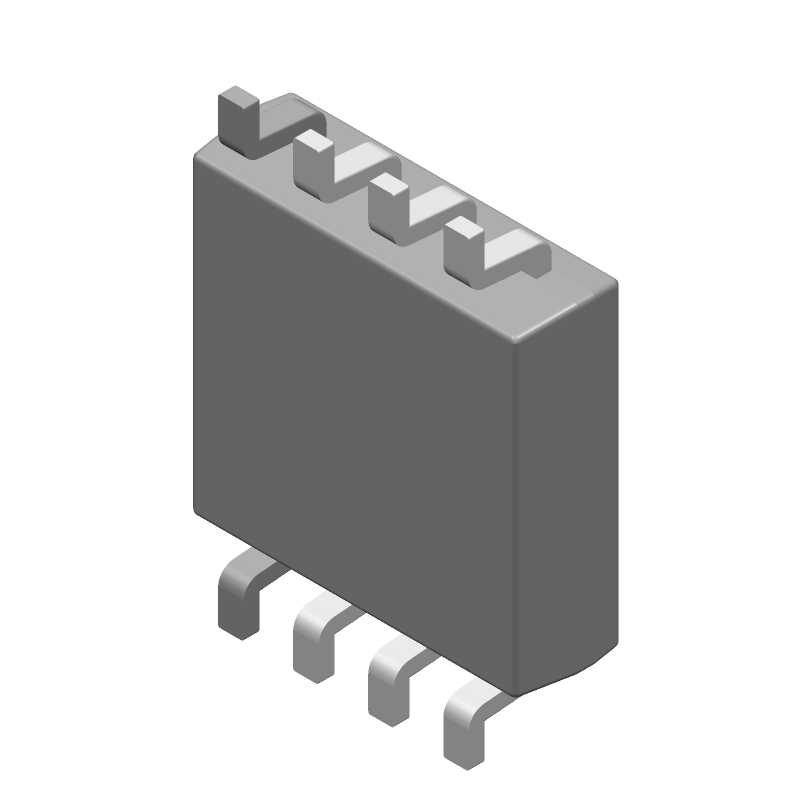

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BA2904FVM-TR by ROHM Semiconductor
Results Overview of BA2904FVM-TR by ROHM Semiconductor
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
BA2904FVM-TR Information
BA2904FVM-TR by ROHM Semiconductor is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for BA2904FVM-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BA2904FVMCT-ND
|
DigiKey | IC OPAMP GP 2 CIRCUIT 8MSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3729 In Stock |
|
$0.2538 / $0.6100 | Buy Now |
|
DISTI #
755-BA2904FVM-TR
|
Mouser Electronics | Operational Amplifiers - Op Amps DUAL 0.7MA RoHS: Compliant | 14314 |
|
$0.2420 / $0.6100 | Buy Now |
|
DISTI #
66385351
|
Verical | Op Amp Dual Ground Sense Amplifier ±16V/32V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 152 Package Multiple: 1 Date Code: 2233 | Americas - 1524 |
|
$0.3080 / $0.5610 | Buy Now |
|
DISTI #
63493120
|
Verical | Op Amp Dual Ground Sense Amplifier ±16V/32V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 194 Package Multiple: 1 Date Code: 2201 | Americas - 679 |
|
$0.3779 | Buy Now |
|
|
Quest Components | DUAL OP-AMP, 7000 uV OFFSET-MAX, PDSO8 | 2943 |
|
$1.3935 / $3.7160 | Buy Now |
|
|
Quest Components | DUAL OP-AMP, 7000 uV OFFSET-MAX, PDSO8 | 75 |
|
$0.3616 / $0.5424 | Buy Now |
|
DISTI #
BA2904FVM-TR
|
TME | IC: operational amplifier Min Qty: 1 | 0 |
|
$0.2310 / $0.6350 | RFQ |
|
DISTI #
BA2904FVM-TR
|
Avnet Asia | OP Amp Dual GP ?16V/32V 8-Pin MSOP T/R (Alt: BA2904FVM-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
BA2904FVM-TR
|
Avnet Silica | OP Amp Dual GP 16V32V 8Pin MSOP TR (Alt: BA2904FVM-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BA2904FVM-TR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1524 |
|
$0.2000 / $0.5610 | Buy Now |
Part Details for BA2904FVM-TR
BA2904FVM-TR CAD Models
BA2904FVM-TR Part Data Attributes
|
|
BA2904FVM-TR
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BA2904FVM-TR
ROHM Semiconductor
Operational Amplifier, 2 Func, 10000uV Offset-Max, BIPolar, PDSO8, MSOP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | MSOP | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.25 µA | |
| Bias Current-Max (IIB) @25C | 0.25 µA | |
| Common-mode Reject Ratio-Nom | 80 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 10000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e2 | |
| Length | 2.9 mm | |
| Low-Offset | NO | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSSOP8,.16 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.9 mm | |
| Slew Rate-Nom | 0.2 V/us | |
| Supply Current-Max | 2 mA | |
| Supply Voltage Limit-Max | 32 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin/Copper (Sn/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Unity Gain BW-Nom | 500 | |
| Voltage Gain-Min | 25000 | |
| Width | 2.8 mm |
Alternate Parts for BA2904FVM-TR
This table gives cross-reference parts and alternative options found for BA2904FVM-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BA2904FVM-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BA2904FV-E2 | ROHM Semiconductor | $0.2600 | Operational Amplifier, 2 Func, 10000uV Offset-Max, BIPolar, PDSO8, SSOP-8 | BA2904FVM-TR vs BA2904FV-E2 |
| BA2904FVM | ROHM Semiconductor | Check for Price | Operational Amplifier, 2 Func, 10000uV Offset-Max, BIPolar, PDSO8, ROHS COMPLIANT, MSOP-8 | BA2904FVM-TR vs BA2904FVM |
| BA2904FV | ROHM Semiconductor | Check for Price | Operational Amplifier, 2 Func, 10000uV Offset-Max, BIPolar, PDSO8, ROHS COMPLIANT, SSOP-8 | BA2904FVM-TR vs BA2904FV |
BA2904FVM-TR Frequently Asked Questions (FAQ)
-
ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
-
ROHM recommends derating the output current and voltage according to the temperature derating curve in the datasheet. Additionally, ensure good airflow and thermal management around the device.
-
The BA2904FVM-TR has built-in ESD protection diodes and latch-up prevention circuits. However, it's still recommended to follow proper ESD handling procedures and use a latch-up prevention circuit on the PCB if necessary.
-
The BA2904FVM-TR is an automotive-grade device, but it's essential to ensure that the specific application meets the AEC-Q100 qualification requirements. Consult ROHM's automotive documentation and application notes for guidance.
-
Store the BA2904FVM-TR in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 125°C, and the recommended humidity range is 20% to 80% RH.
