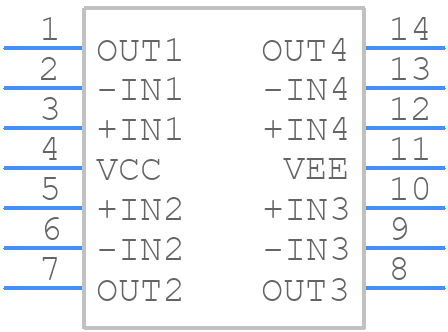

Part Symbol
-
Footprint
-

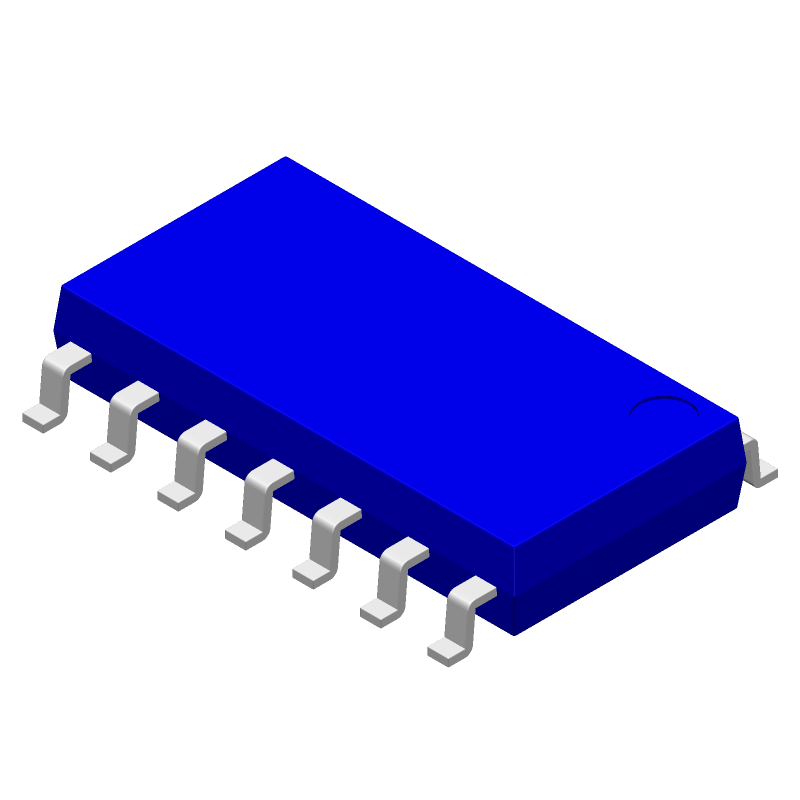

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BA2902F-E2 by ROHM Semiconductor
Results Overview of BA2902F-E2 by ROHM Semiconductor
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
BA2902F-E2 Information
BA2902F-E2 by ROHM Semiconductor is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for BA2902F-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BA2902F-E2CT-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 14SOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2498 In Stock |
|
$0.5395 / $1.1800 | Buy Now |
|
DISTI #
755-BA2902F-E2
|
Mouser Electronics | Operational Amplifiers - Op Amps QUAD 32V 0.7MA RoHS: Compliant | 0 |
|
$0.5270 / $1.1800 | Order Now |
|
DISTI #
70521937
|
RS | ROHM BA2902F-E2, Quad Op Amp, 0.5MHz, 5 - 28 V, 14-Pin SOP Min Qty: 10 Package Multiple: 1 Container: Bulk | 0 |
|
$0.3940 / $0.4930 | RFQ |
|
DISTI #
77265622
|
Verical | Op Amp Quad Ground Sense Amplifier ±16V/32V 14-Pin SOP T/R RoHS: Compliant Min Qty: 88 Package Multiple: 1 Date Code: 2336 | Americas - 2480 |
|
$0.3100 / $0.3360 | Buy Now |
|
DISTI #
71260724
|
Verical | Op Amp Quad Ground Sense Amplifier ±16V/32V 14-Pin SOP T/R RoHS: Compliant Min Qty: 164 Package Multiple: 1 Date Code: 2301 | Americas - 2432 |
|
$0.4472 / $0.4997 | Buy Now |
|
|
Bristol Electronics | 5734 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 6 | 110 |
|
$0.3516 / $0.9375 | Buy Now |
|
|
Quest Components | 4587 |
|
$0.4704 / $1.5680 | Buy Now | |
|
|
Quest Components | 1945 |
|
$0.4533 / $1.2950 | Buy Now | |
|
|
Quest Components | 88 |
|
$0.6250 / $1.2500 | Buy Now |
Part Details for BA2902F-E2
BA2902F-E2 CAD Models
BA2902F-E2 Part Data Attributes
|
|
BA2902F-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BA2902F-E2
ROHM Semiconductor
Operational Amplifier, 4 Func, 10000uV Offset-Max, BIPolar, PDSO14, SOP-14
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | SOIC | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.25 µA | |
| Bias Current-Max (IIB) @25C | 0.25 µA | |
| Common-mode Reject Ratio-Nom | 80 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 10000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e3 | |
| Length | 8.7 mm | |
| Low-Offset | NO | |
| Micropower | YES | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.71 mm | |
| Slew Rate-Nom | 0.2 V/us | |
| Supply Current-Max | 3 mA | |
| Supply Voltage Limit-Max | 32 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 500 | |
| Voltage Gain-Min | 25000 | |
| Width | 4.4 mm |
BA2902F-E2 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the BA2902F-E2 is 2.7V to 5.5V.
-
To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 1uF or more between the VOUT and GND pins, and to keep the input voltage stable.
-
The maximum output current that the BA2902F-E2 can provide is 200mA.
-
To protect the BA2902F-E2 from overheating, it is recommended to provide adequate heat dissipation, such as using a heat sink or a thermal pad, and to keep the ambient temperature below 85°C.
-
Yes, the BA2902F-E2 is AEC-Q100 qualified, making it suitable for use in automotive applications.
