Power Circuits / Linear Regulator ICs / BA25JC5T
Datasheets

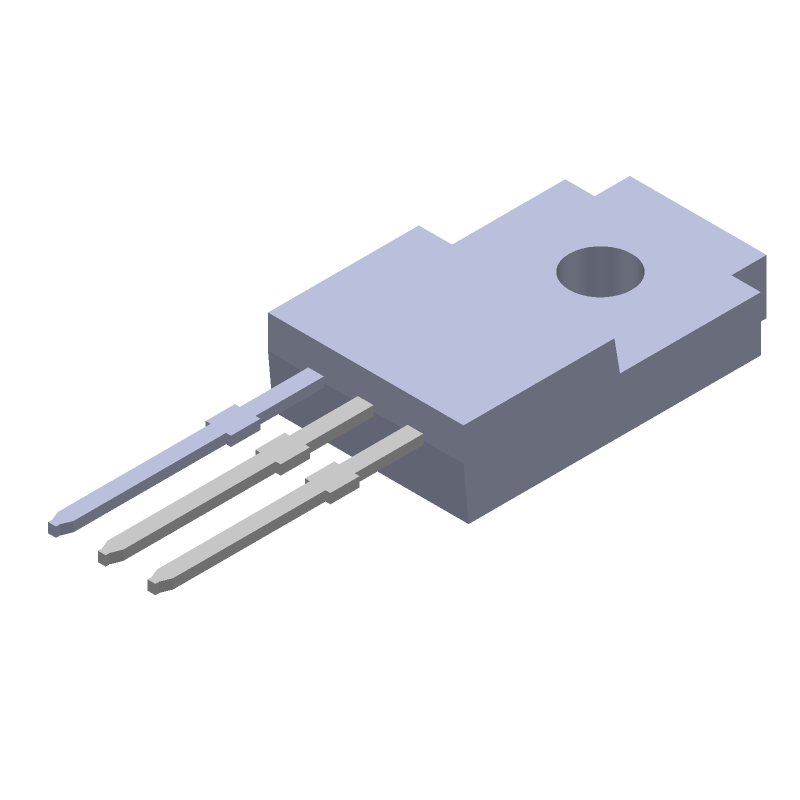

BA25JC5T by: ROHM Semiconductor

Fixed Positive LDO Regulator, 2.5V, BIPolar, ROHS COMPLIANT, TO-220FP, 3 PIN

Part Details for BA25JC5T by ROHM Semiconductor

Results Overview of BA25JC5T by ROHM Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

BA25JC5T Information

BA25JC5T by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for BA25JC5T

Part # Distributor Description Stock Price Buy
DISTI # 36526332
Verical LDO Regulator Pos 2.5V 1.5A 3-Pin(3+Tab) TO-220FP Tube Min Qty: 50 Package Multiple: 1 Date Code: 1301 Americas - 50
  • 50 $1.4497
$1.4497 Buy Now

Part Details for BA25JC5T

BA25JC5T Part Data Attributes

Parametric Data
BA25JC5T ROHM Semiconductor
Buy Now Datasheet
Compare Parts:
BA25JC5T ROHM Semiconductor Fixed Positive LDO Regulator, 2.5V, BIPolar, ROHS COMPLIANT, TO-220FP, 3 PIN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ROHM CO LTD
Part Package Code TO-220FP
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer ROHM Semiconductor
Adjustability FIXED
Dropout Voltage1-Nom 0.3 V
Input Voltage Absolute-Max 18 V
Input Voltage-Max 16 V
Input Voltage-Min 3 V
JESD-30 Code R-XSFM-T3
JESD-609 Code e2
Line Regulation-Max 0.06%
Load Regulation-Max 0.06%
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Output Current1-Max 1.5 A
Output Voltage1-Max 2.525 V
Output Voltage1-Min 2.475 V
Output Voltage1-Nom 2.5 V
Package Body Material UNSPECIFIED
Package Code SFM
Package Equivalence Code SIP3,.1ISO-TB
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Surface Mount NO
Technology BIPOLAR
Terminal Finish Tin/Copper (Sn/Cu)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Voltage Tolerance-Max 1%

Alternate Parts for BA25JC5T

This table gives cross-reference parts and alternative options found for BA25JC5T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BA25JC5T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LD1085P25 STMicroelectronics Check for Price 2.5V FIXED POSITIVE LDO REGULATOR, 1.5V DROPOUT, PSFM3, TO-220FP, 3 PIN BA25JC5T vs LD1085P25
LF25CP STMicroelectronics Check for Price 2.5V FIXED POSITIVE LDO REGULATOR, 0.7V DROPOUT, SFM3, ROHS COMPLIANT, TO-220FP, 3 PIN BA25JC5T vs LF25CP
LF25ABP STMicroelectronics Check for Price 2.5V FIXED POSITIVE LDO REGULATOR, 0.7V DROPOUT, SFM3, ROHS COMPLIANT, TO-220FP, 3 PIN BA25JC5T vs LF25ABP

BA25JC5T Related Parts
