BA25BC0WFP-E2 Information
BA25BC0WFP-E2 by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BA25BC0WFP-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
846-BA25BC0WFP-E2TR-ND
|
DigiKey | IC REG LINEAR 2.5V 1A TO252-5 Min Qty: 2000 Lead time: 6 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.6381 / $0.6772 | Buy Now |
|
DISTI #
755-BA25BC0WFP-E2
|
Mouser Electronics | LDO Voltage Regulators REG 1A 2.5V RoHS: Compliant | 834 |
|
$0.6220 / $2.3800 | Buy Now |
|
DISTI #
36525707
|
Verical | LDO Regulator Pos 2.5V 1A 5-Pin(4+Tab) TO-252 T/R Min Qty: 222 Package Multiple: 1 Date Code: 1501 | Americas - 1545 |
|
$0.3303 / $0.3690 | Buy Now |
|
|
Bristol Electronics | 1896 |
|
RFQ | ||
|
|
Quest Components | 1516 |
|
$0.6468 / $1.8480 | Buy Now | |
|
|
Quest Components | 1236 |
|
$0.4500 / $1.1250 | Buy Now |
Part Details for BA25BC0WFP-E2

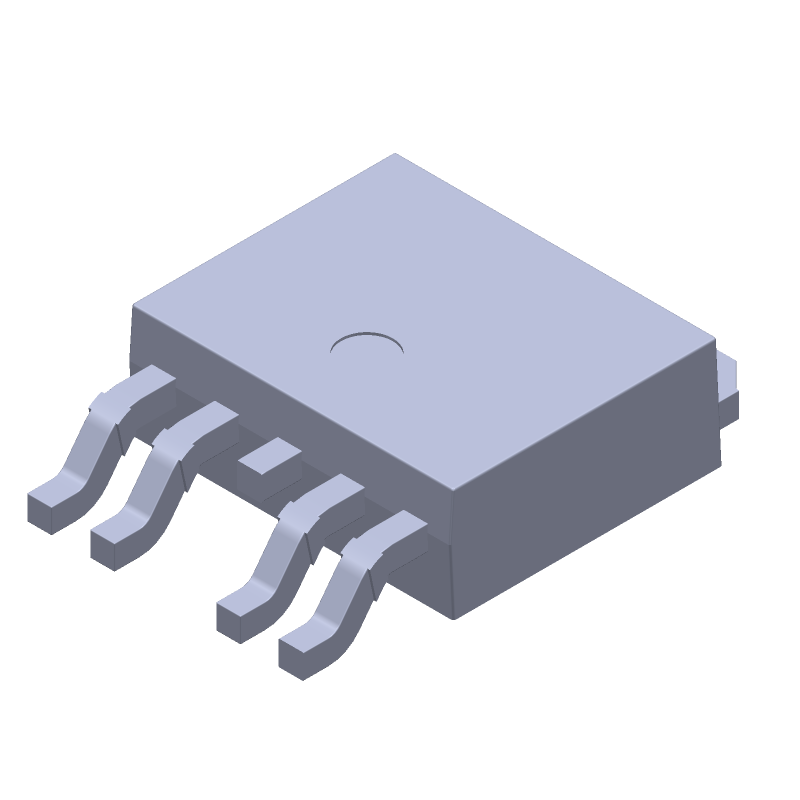

BA25BC0WFP-E2 CAD Models
BA25BC0WFP-E2 Part Data Attributes
|
|
BA25BC0WFP-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BA25BC0WFP-E2
ROHM Semiconductor
Fixed Positive LDO Regulator, 2.5V, BIPolar, PSSO4, TO-252, 5 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | TO-252 | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 0.3 V | |
| Input Voltage Absolute-Max | 18 V | |
| Input Voltage-Max | 16 V | |
| Input Voltage-Min | 3 V | |
| JESD-30 Code | R-PSSO-G4 | |
| Length | 6.5 mm | |
| Line Regulation-Max | 0.035% | |
| Load Regulation-Max | 0.075% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 0.2 A | |
| Output Voltage1-Max | 2.55 V | |
| Output Voltage1-Min | 2.45 V | |
| Output Voltage1-Nom | 2.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-252 | |
| Package Equivalence Code | SMSIP5H,.37,50TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 2.5 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 2% | |
| Width | 5.5 mm |
