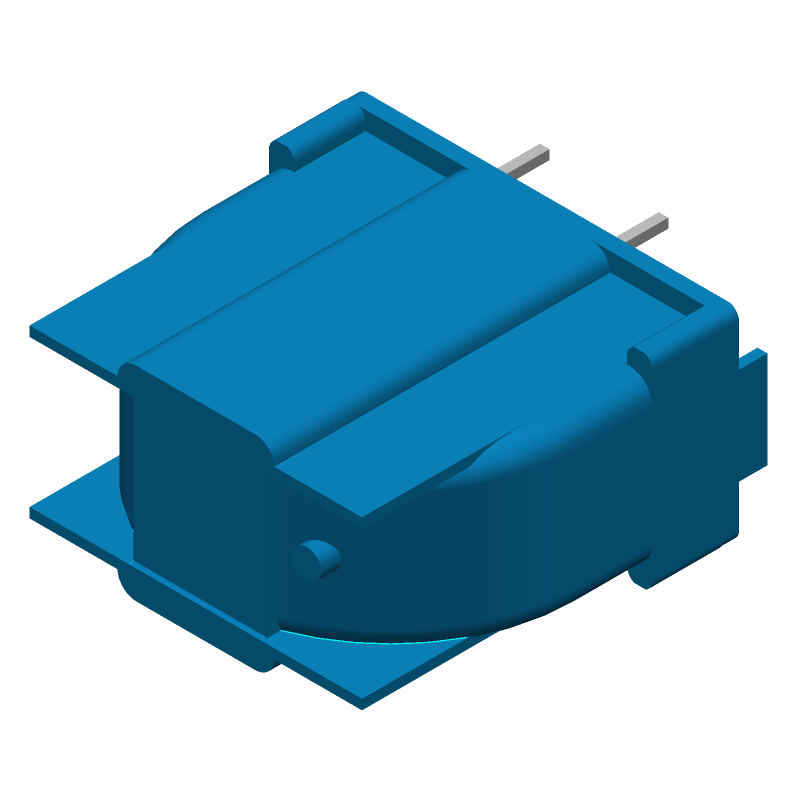

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for B82725J2103N022 by TDK Corporation
Results Overview of B82725J2103N022 by TDK Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
B82725J2103N022 Information
B82725J2103N022 by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for B82725J2103N022
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
B82725J2103N022
|
Avnet Americas | Choke, Common Mode, 1.8 mH, 10 A - Trays (Alt: B82725J2103N022) RoHS: Compliant Min Qty: 320 Package Multiple: 160 Lead time: 6 Weeks, 0 Days Container: Tray | 0 |
|
$4.6981 / $5.8047 | Buy Now |
|
DISTI #
871-B82725J2103N22
|
Mouser Electronics | Common Mode Chokes / Filters RING CORE CHOKE 2X1.8MH 10A RoHS: Compliant | 500 |
|
$3.7000 / $5.1400 | Buy Now |
|
|
Vyrian | Inductors | 793 |
|
RFQ |
Part Details for B82725J2103N022
B82725J2103N022 CAD Models
B82725J2103N022 Part Data Attributes
|
|
B82725J2103N022
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
B82725J2103N022
TDK Corporation
General Purpose Inductor, 1800uH, 30%, 1 Element, Ferrite-Core, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | TDK | |
| Construction | Rectangular | |
| Core Material | Ferrite | |
| DC Resistance | 0.013 Ω | |
| Inductance-Nom (L) | 1800 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e3 | |
| Lead Diameter | 1 mm | |
| Lead Length | 3 mm | |
| Number of Functions | 2 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 40 mm | |
| Package Length | 40.4 mm | |
| Package Style | PCB Mount | |
| Package Width | 21.5 mm | |
| Packing Method | Tray | |
| Rated Current-Max | 10 A | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Surface Mount | NO | |
| Terminal Finish | TIN | |
| Terminal Placement | DUAL IN-LINE | |
| Terminal Shape | WIRE | |
| Test Frequency | 0.01 MHz | |
| Tolerance | 30% |
