B82559A2122A025 Information
B82559A2122A025 by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for B82559A2122A025
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
B82559A2122A025
|
Avnet Americas | Power Inductor (SMD), 1.25 uH, ? 7%, 50 A, Shielded, 48 A, 25.3mm x 23.5mm x 11.1mm - Trays (Alt: B82559A2122A025) RoHS: Compliant Min Qty: 280 Package Multiple: 280 Lead time: 15 Weeks, 0 Days Container: Tray | 0 |
|
$3.2784 / $4.1951 | Buy Now |
|
DISTI #
871-B82559A2122A025
|
Mouser Electronics | Power Inductors - SMD 1.25uH 50A 7% 23.5x23.5mm SMD RoHS: Compliant | 772 |
|
$4.2900 / $6.5400 | Buy Now |
|
DISTI #
B82559A2122A025
|
TTI | Power Inductors - SMD 1.25uH 50A 7% 23.5x23.5mm SMD RoHS: Compliant pbFree: Pb-Free Min Qty: 280 Package Multiple: 40 Container: Tray | Americas - 0 |
|
$5.7300 | Buy Now |
|
DISTI #
B82559A2122A025
|
Avnet Abacus | Power Inductor SMD 125 uH 7 50 A Shielded 48 A 253mm x 235mm x 111mm (Alt: B82559A2122A025) RoHS: Compliant Min Qty: 280 Package Multiple: 280 Lead time: 23 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for B82559A2122A025

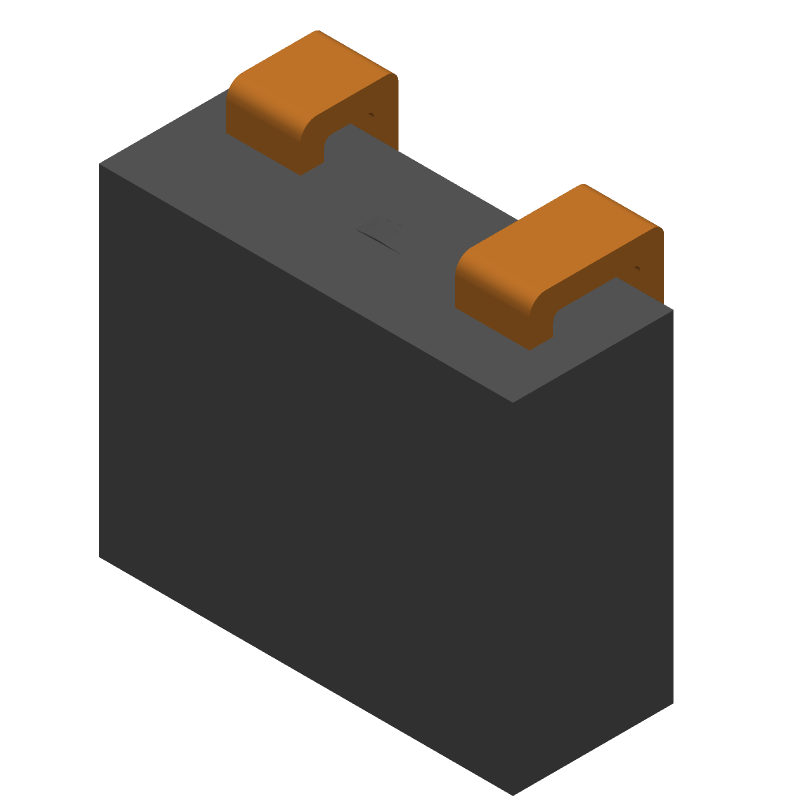

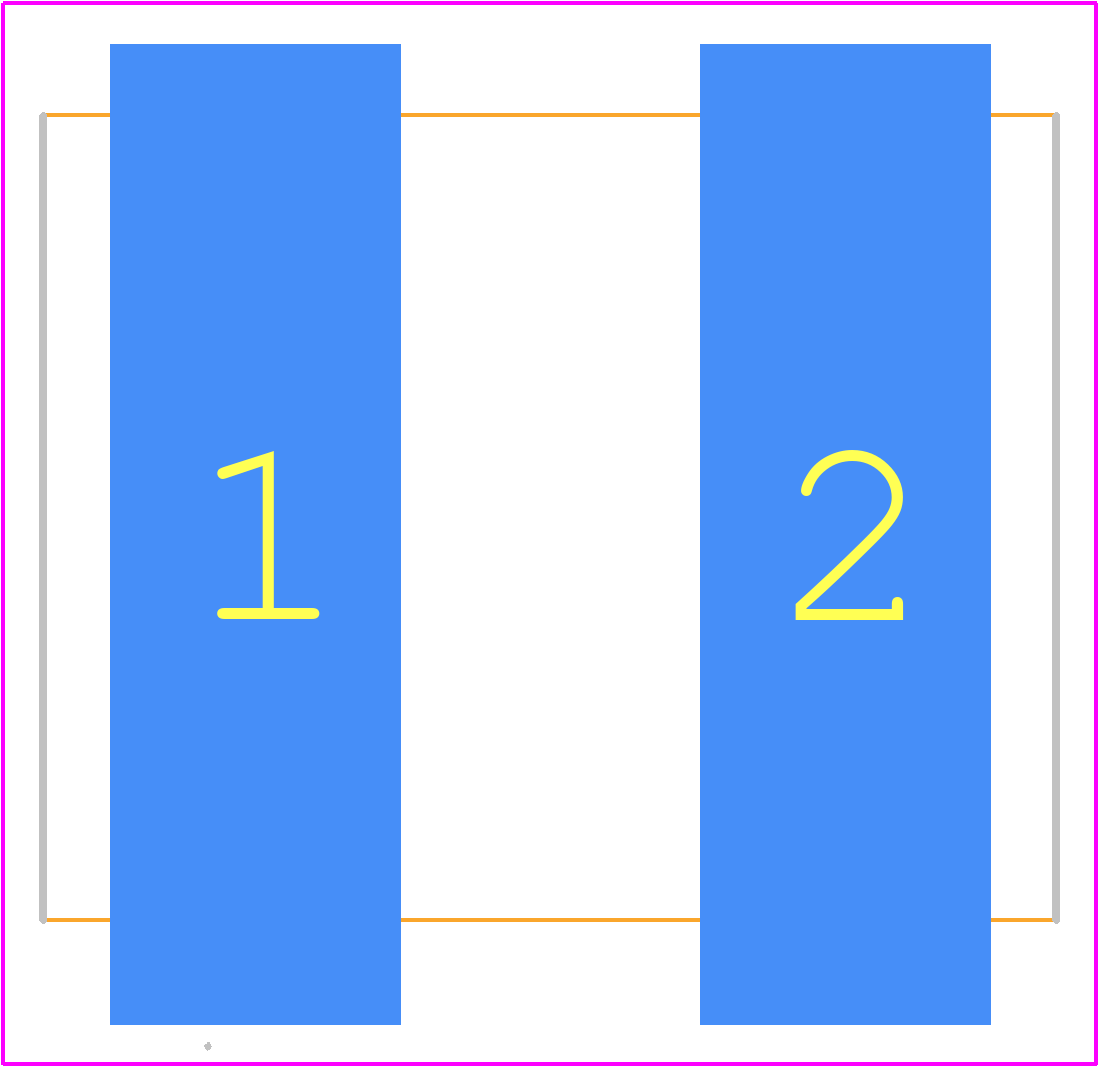

B82559A2122A025 CAD Models
B82559A2122A025 Part Data Attributes
|
|
B82559A2122A025
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
B82559A2122A025
TDK Corporation
General Purpose Inductor, 1.25uH, 7%, 1 Element, Ferrite-Core, SMD, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | TDK | |
| Construction | Rectangular | |
| Core Material | Ferrite | |
| DC Resistance | 0.00045 Ω | |
| Inductance-Nom (L) | 1.25 µH | |
| Inductor Application | RF INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e1 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 11.1 mm | |
| Package Length | 25.3 mm | |
| Package Style | SMT | |
| Package Width | 23.5 mm | |
| Packing Method | Tray | |
| Rated Current-Max | 50 A | |
| Self Resonance Frequency | 2 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.01 MHz | |
| Tolerance | 7% |
