B82472N6564M000 Information
B82472N6564M000 by TDK Corporation is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for B82472N6564M000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
B82472N6564M000
|
Avnet Americas | SMT-INDUCTOR 7.5X7.5X4.5, 560 UH PP - Tape and Reel (Alt: B82472N6564M000) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.5080 / $0.5793 | Buy Now |
|
DISTI #
871-B82472N6564M000
|
Mouser Electronics | Power Inductors - SMD 400VDC 560uH 20% 0.32A 3.35ohm RoHS: Compliant | 891 |
|
$0.5570 / $1.2300 | Buy Now |
|
DISTI #
B82472N6564M000
|
Avnet Abacus | SMTINDUCTOR 75X75X45 560 UH PP (Alt: B82472N6564M000) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for B82472N6564M000

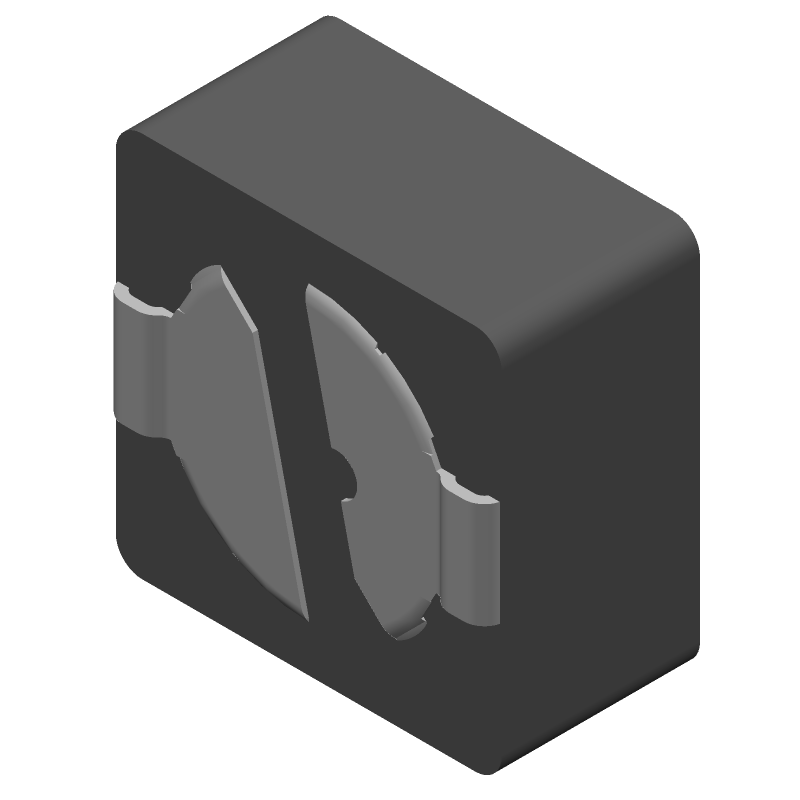

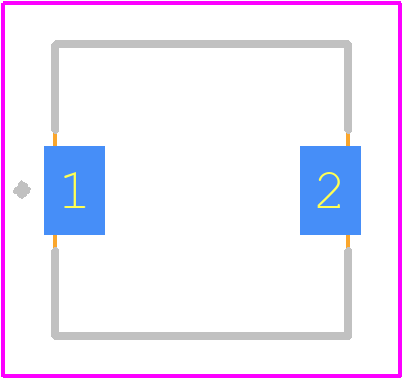

B82472N6564M000 CAD Models
B82472N6564M000 Part Data Attributes
|
|
B82472N6564M000
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
B82472N6564M000
TDK Corporation
General Purpose Inductor, 560uH, 20%, 1 Element, Ferrite-Core, SMD, 2929, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | TDK | |
| Case/Size Code | 2929 | |
| Construction | Rectangular | |
| Core Material | Ferrite | |
| DC Resistance | 3.35 Ω | |
| Inductance-Nom (L) | 560 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 4.5 mm | |
| Package Length | 7.3 mm | |
| Package Style | SMT | |
| Package Width | 7.3 mm | |
| Packing Method | TR, Blister, 13 Inch | |
| Rated Current-Max | 0.32 A | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | ONE SURFACE | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
